T10 1.8 inch Temperature Control Smart Home Control Panel

$92.99 USD

Sale Sold out

Shipping calculated at checkout.

T10 Temperature Smart Control Screen

Product features

1. Supports voice control
2. Customizable wake-up word
3. Built-in speaker on the main unit
4. Supports connection to 485/Tuya (a Chinese online platform)
5. Supports either water purifier or fresh air system; underfloor heating;
6. Connects to VRF/Xiaochaoren air conditioning gateway, supporting up to 16 air conditioners.

Performance Parameters

Display: 1.8-inch 360*360
System: RTOS
CPU: Triple-core heterogeneous SoC
RAM/Internal Memory: 16MB/16MB
Power Supply: AC110-240V, 50/60Hz
Speaker Output: 1*1.0W

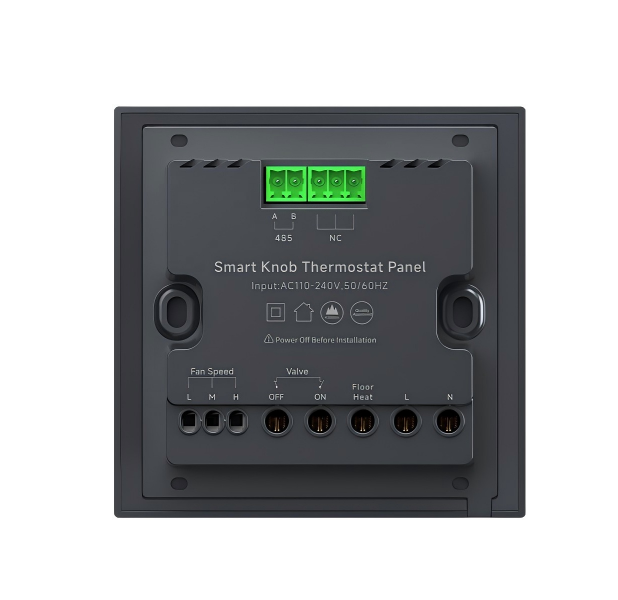

Other Interfaces: 485, Live/Neutral Wire Interface, Underfloor Heating, Valve On, Valve Off, High, Medium, Low
Color: Light Luxury Gray
Microphone Array: Dual Microphones
Dimensions: 86mm*86mm*27mm
Installation Dimensions: 86mm*86mm*70mm

Packing Information

*Size（ Appearance:86mm*86mm*27mm
*Size:(Install):86mm*86mm*70mm
*Size:（ Packingbox）:86mm*86mm*40mm
*carton size:31.5*27*21cm ， 10pcs/ctn
.NW/GW: 3.8/4kgs

Usage Instructions Video

https://youtu.be/fDEssh7d2jc

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
T10 Smart Central Control Screen Standard Edition	T10 Smart Central Control Screen Standard Edition $92.99/ea	$0.00	Quantity	$92.99/ea	$0.00

T10 Smart Central Control Screen Tuya Wifi	T10 Smart Central Control Screen Tuya Wifi $102.99/ea	$0.00	Quantity	$102.99/ea	$0.00

Packaging box customization (minimum order of 500 pieces)	Packaging box customization (minimum order of 500 pieces) $92.99/ea	$0.00	Quantity Sold out	$92.99/ea	$0.00

View cart

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.

View cart

Whole-house Smart Home Linkage

T10 Smart Central Control Screen

Manage Your Entire Home

The three-in-one temperature control panel simplifies the process. Easily manage all HVAC equipment, including air conditioning, underfloor heating, and fresh air systems, from a single panel, eliminating the need to switch between multiple control panels.

Precise Temperature Control

Equipped with a built-in high-precision temperature and humidity sensor, along with a proprietary temperature algorithm and secondary calibration, it can capture real-time changes in indoor temperature and humidity and intelligently calibrate, with a calibration accuracy to 0.1°C.

Function
