Speaker M20 8 inch HD Smart Central Control Screen(Central control panel type)

$284.99 USD

Sale Sold out

Shipping calculated at checkout.

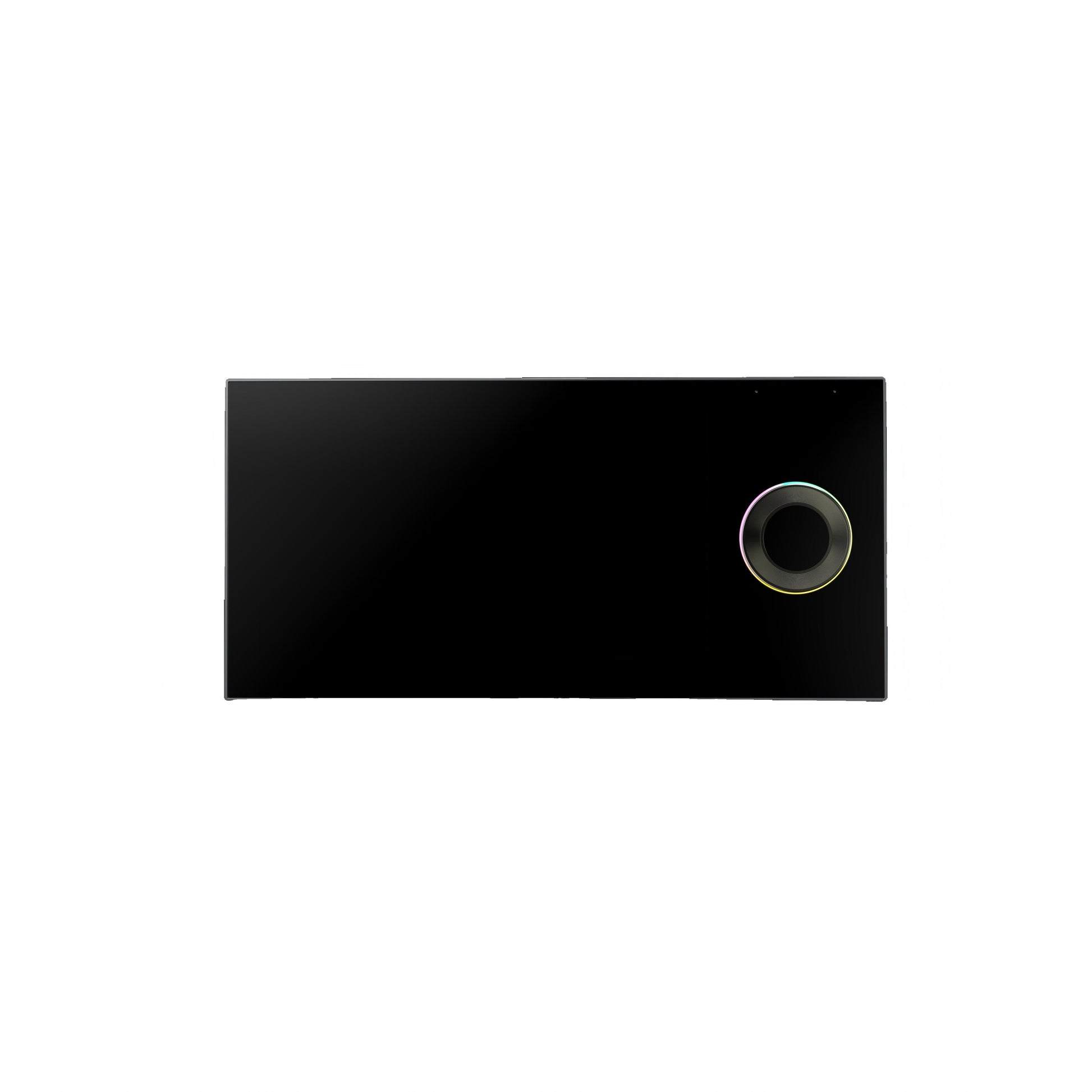

M20 Smart Control Screen

Product features

1. Supports wireless background music systems
2. Supports access control systems and dual networks
3. Supports whole-house calling and point-to-point intercom
4. Supports family photo albums
5. Supports large and small screen functions (small screen for use with R30)
6. Multi-functional knob for power on/off, temperature and dimming adjustment
7. Domestic version integrates genuine QQ Music
8. Supports Bluetooth speaker connection
9. Supports 2.5G/5G WiFi
10. Non-gateway version supports 485

Performance Parameters

Display: 8-inch High-Definition IPS LCD 1280*800
System: Android 10.0
CPU: R818 Cortex-A53 Quad-Core 1.5G
RAM/Internal Memory: 1G/8G
TF Card: Up to 32GB
Power Supply: 220V, 50Hz/AC
Background Music System: HomeOS 6.0
Speaker Output: 1.0W*2
Impedance: 8Ω
Bluetooth Speakers: 4 (S530-B S530*3, maximum 1-to-3 use)
Ethernet: 10/100M Ethernet

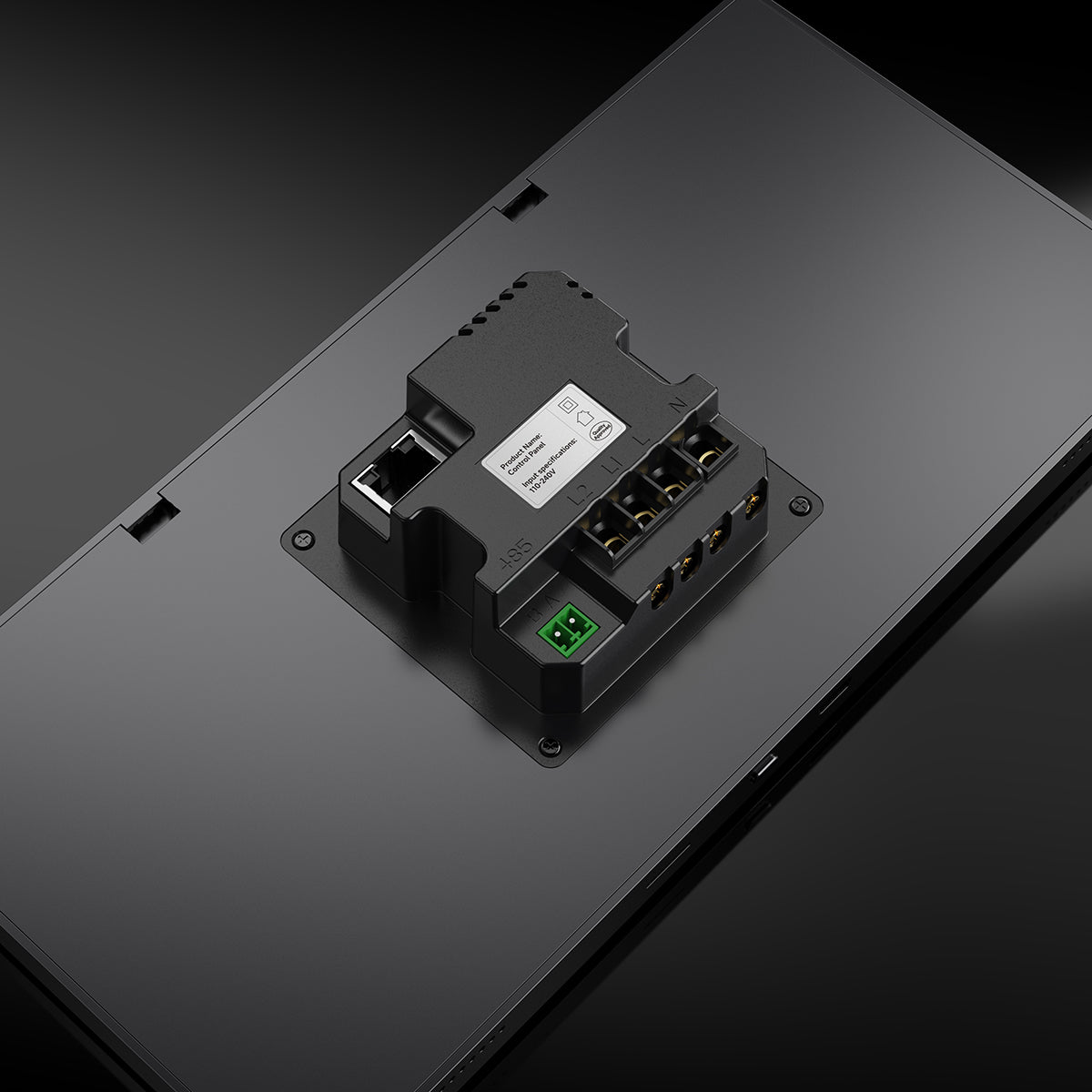

Non-KNX Interfaces: RS485, L (Live), N (Neutral), two relays (L1, L2)
KNX Interfaces: Two relays (L1, L2) +KNX-, +AUX-, L, Ethernet
Color: Sky Gray
Microphone Array: Dual-microphone voice control
Dimensions: 254.4mm * 124.4mm * 11.7mm

Packing Information

Size（ Appearance:254.4*124.4*11.7mm
Size:(Install):86mm*86mm*70mm
carton size:52*37*43.5cm10pcs/ctn.
NW/GW:16/17KGS

Usage Instructions Video

https://youtu.be/WjCnyt_vM7s

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
M20 Smart Central Control Screen Standard Version	M20 Smart Central Control Screen Standard Version $284.99/ea	$0.00	Quantity	$284.99/ea	$0.00

M20 Smart Central Control Screen with Tuya Wifi	M20 Smart Central Control Screen with Tuya Wifi $307.99/ea	$0.00	Quantity	$307.99/ea	$0.00

M20 Smart Central Control Screen in Zigbee	M20 Smart Central Control Screen in Zigbee $316.99/ea	$0.00	Quantity	$316.99/ea	$0.00

M20 Smart Central Control Screen Mi House Version	M20 Smart Central Control Screen Mi House Version $287.99/ea	$0.00	Quantity	$287.99/ea	$0.00

M20 Smart Central Control Screen KNX Version	M20 Smart Central Control Screen KNX Version $452.99/ea	$0.00	Quantity	$452.99/ea	$0.00

Packaging box customization (minimum order of 500 pieces)	Packaging box customization (minimum order of 500 pieces) $284.99/ea	$0.00	Quantity Sold out	$284.99/ea	$0.00

View cart

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.

View cart

Whole-house Smart Home Linkage

M20 Smart Central Control Screen

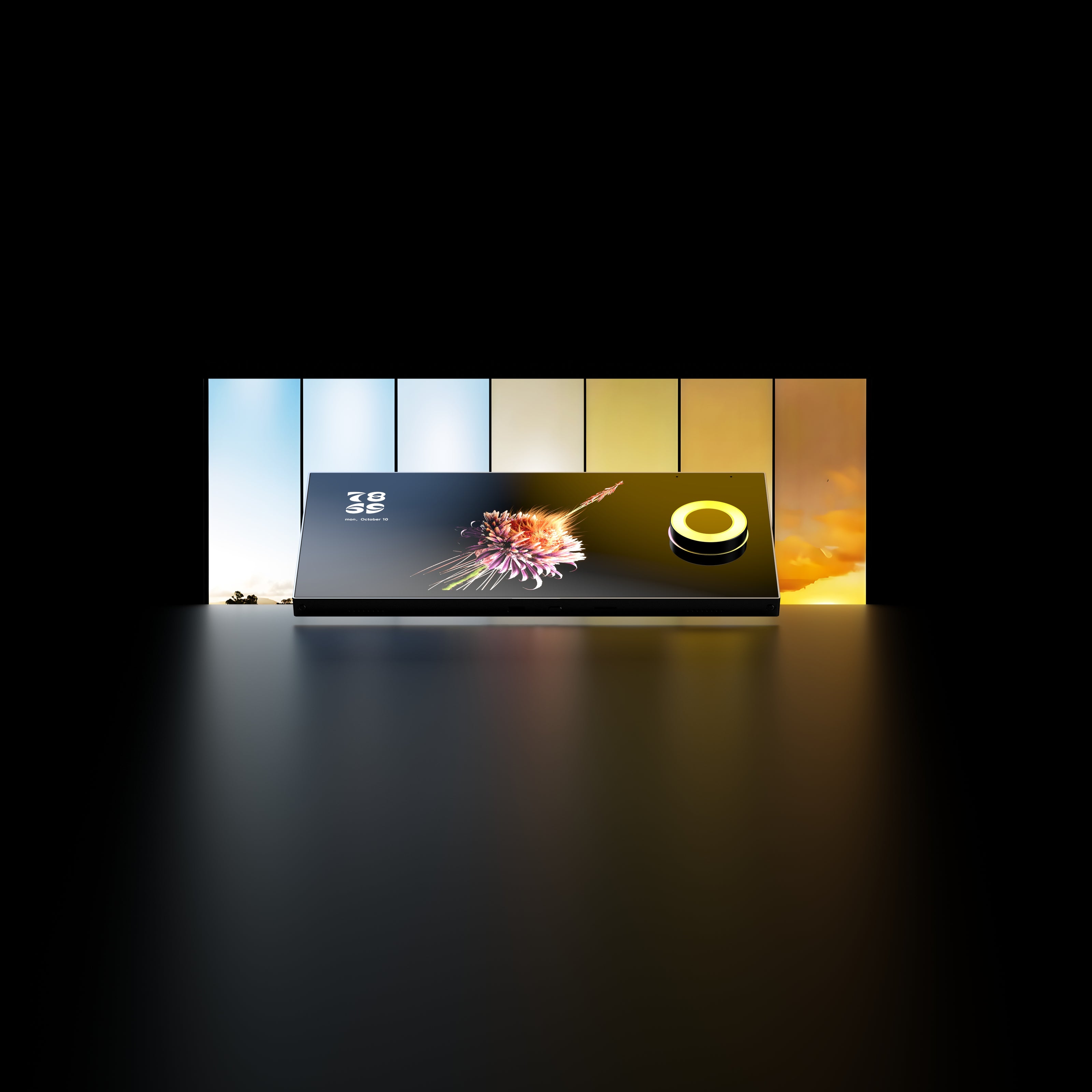

Light and Shadow in Motion

HomeOS has been upgraded again, adding the revolutionary LiteSync smart lighting system, which can present you with a unique lighting atmosphere at different times. Whether it's being woken up by voice, dancing to the rhythm of music, or the soft halo of light when in standby mode,

Control Home Appliances

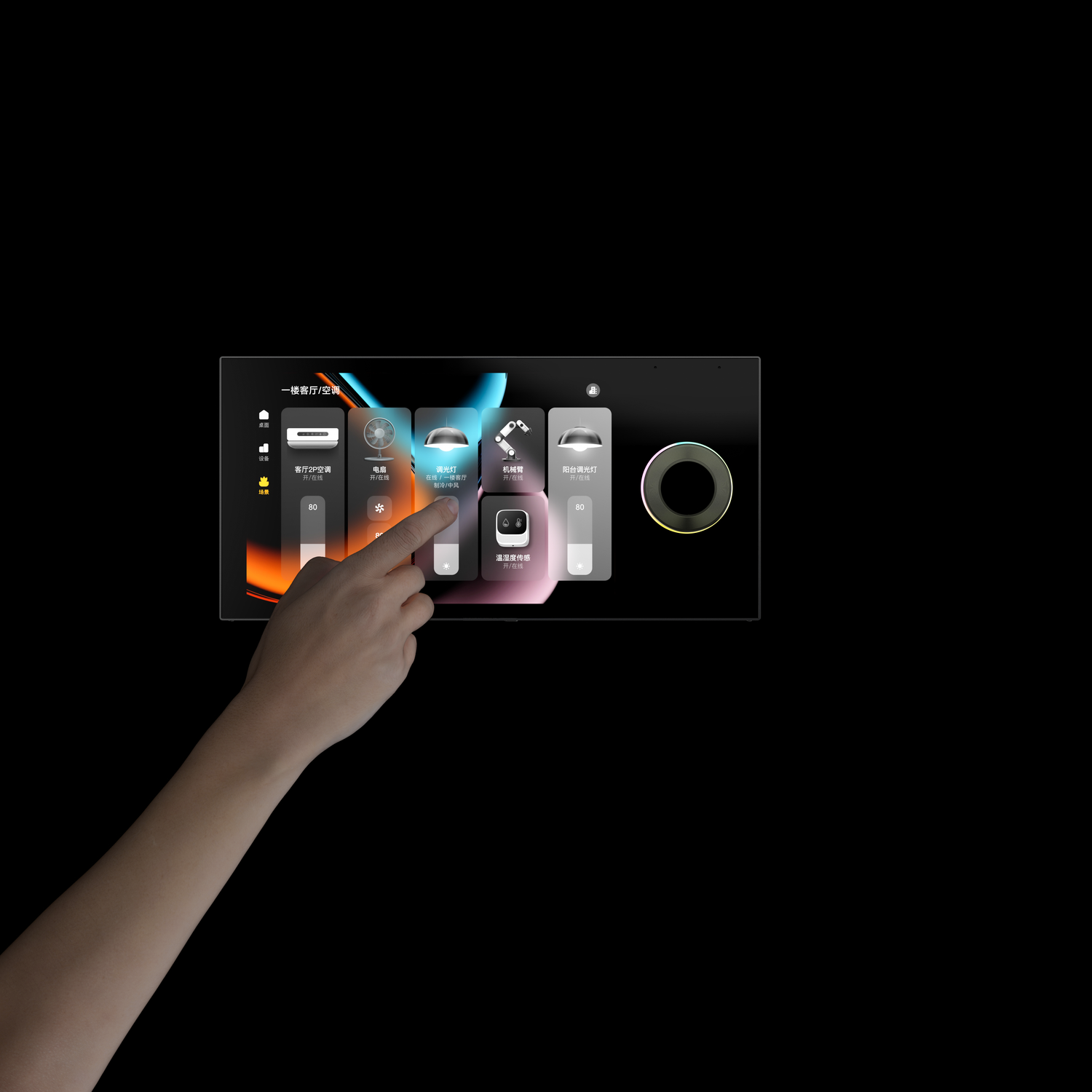

Three-layer UX design combines touch, buttons, knobs, and voice control for intuitive whole-home management. Customize knobs, buttons, and indicator lights to easily adjust volume, temperature, and lighting.
