Speaker M10 6-inch HD LCD Smart Central Control Screen

Speaker M10 6-inch HD LCD Smart Central Control Screen

Regular price $243.99 USD
Regular price Sale price $243.99 USD
Sale Sold out
Shipping calculated at checkout.

Background Music Control Screen

Product features

Support wireless background music system
Support access control system, dual network
Music play control: Spotify
Support connection Bluetooth speaker
Three physical for custom control of scenes and devices
System settings: multi-language

Performance Parameters

Display: 6-inch HD IPS LCD 720 *1440
System: Android 10.0
CPU: CortexA53 Quad-core 1.5G
RAM/ROM: 1G/4G
TF Card: Up to 32GB
Power: 110v-230v,50Hz/AC
Background Music System: HomeOS 6.0
Speaker Output: 1.0W*1
Impedance: 8Ω
Bluetooth Speakers: 4 (S530-B S530*3 can be used up to three at a time)
Ethernet: 10/100M Ethernet

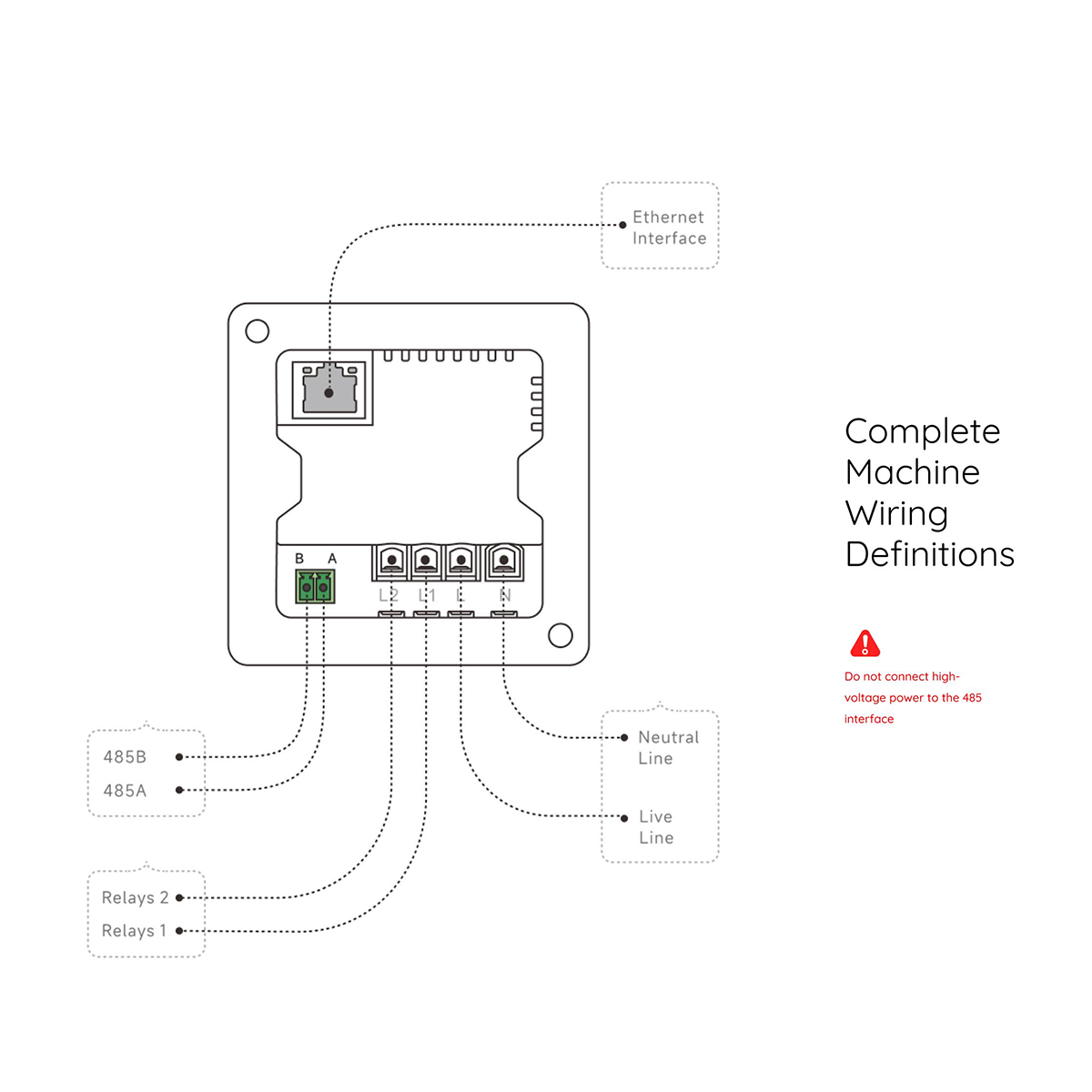

Other interfaces: RS485, L ( wire), N (neutral wire), two relays (L1, L2)
Color: Celestial Gray

Packing Information

Size( Appearance:184mm*88mm*10mm
Size:(Install):86mm*86mm*70mm
Size:( Packingbox) :212*118.5*91mm
carton size: 51*26.5*24cm10pcs/ctn.
NW/GW: 6.6/7KG

Usage Instructions Video

View full details
Your cart
Variant Variant total Quantity Price Variant total
M10 Smart Central Control Screen no Wifi
M10 Smart Central Control Screen no Wifi
$243.99/ea
$0.00
$243.99/ea $0.00
M10 Smart Central Control Screen with Tuya Wifi
M10 Smart Central Control Screen with Tuya Wifi
$265.99/ea
$0.00
$265.99/ea $0.00
M10 Smart Central Control Screen in Zigbee
M10 Smart Central Control Screen in Zigbee
$275.99/ea
$0.00
$275.99/ea $0.00
M10 Smart Central Control Screen Mi Home Version
M10 Smart Central Control Screen Mi Home Version
$246.99/ea
$0.00
$246.99/ea $0.00
Packaging box customization (minimum order of 500 pieces)
Packaging box customization (minimum order of 500 pieces)
$243.99/ea
$0.00
Sold out
$243.99/ea $0.00

View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart

Whole-house Smart Home Linkage

Smart Home System

Speaker M10 Smart Central Control Screen

M10 Smart Screen 4

Unique 6-inch Screen Design

The 6-inch fully laminated IPS screen boasts a 1440*720 ultra-high-definition resolution, offering 4.5 times the overall clarity of a standard 4-inch screen. It features a wide color gamut, vibrant and rich colors, significant contrast between light and dark areas, and abundant detail.

M10 Smart Screen 5

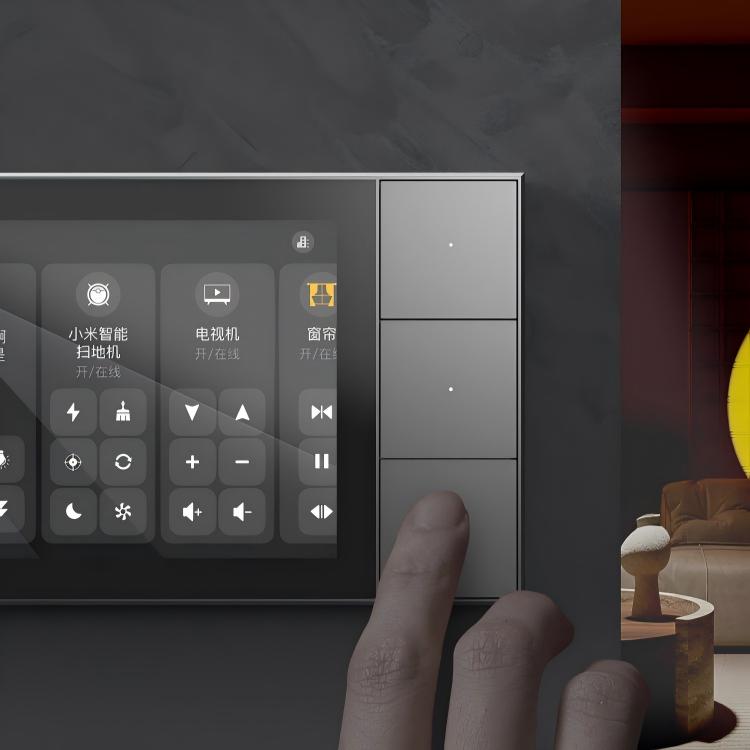

Controls the Whole House

Supports dual-channel relay control with a total load capacity of up to 600W, while each channel can safely handle up to 300W. Built with high-load surge protection, it works reliably with most high-power ceiling and main lighting fixtures commonly used in modern homes. Simply connect the devices you want to manage and enjoy effortless, centralized smart control across your entire home.

Function

M10 Smart Screen 6
M10 Smart Screen 7
M10 Smart Screen 8
