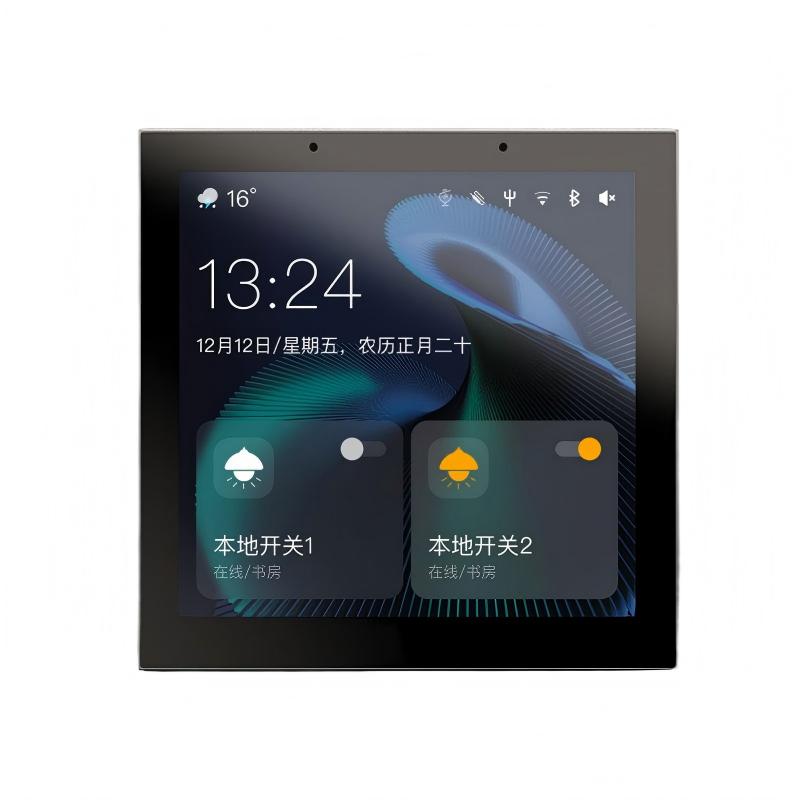

Chuyun H9 4 inch HD Smart Central Control Screen

$132.99 USD

Sale Sold out

Shipping calculated at checkout.

Speaker H9 Smart Control Screen

Product features

1. Supports wired background music systems
2. Domestic version integrates genuine QQ Music
3. Supports connection to wired speakers
4. Non-gateway version supports USB 485
5. Supports connection to mobile phone via Bluetooth

Performance Parameters

Display: 4-inch IPS 480*480
System: Linux
CPU: R528 Dual-core 1.5GHz
RAM/Internal Memory: 128MB/128MB
TF Card: Up to 32GB
Power Supply: 220V, 50Hz/AC
Background Music System: HomeOS-5.0
Power Output: 10W*4
Impedance: 8Ω
Wired Speakers: 4

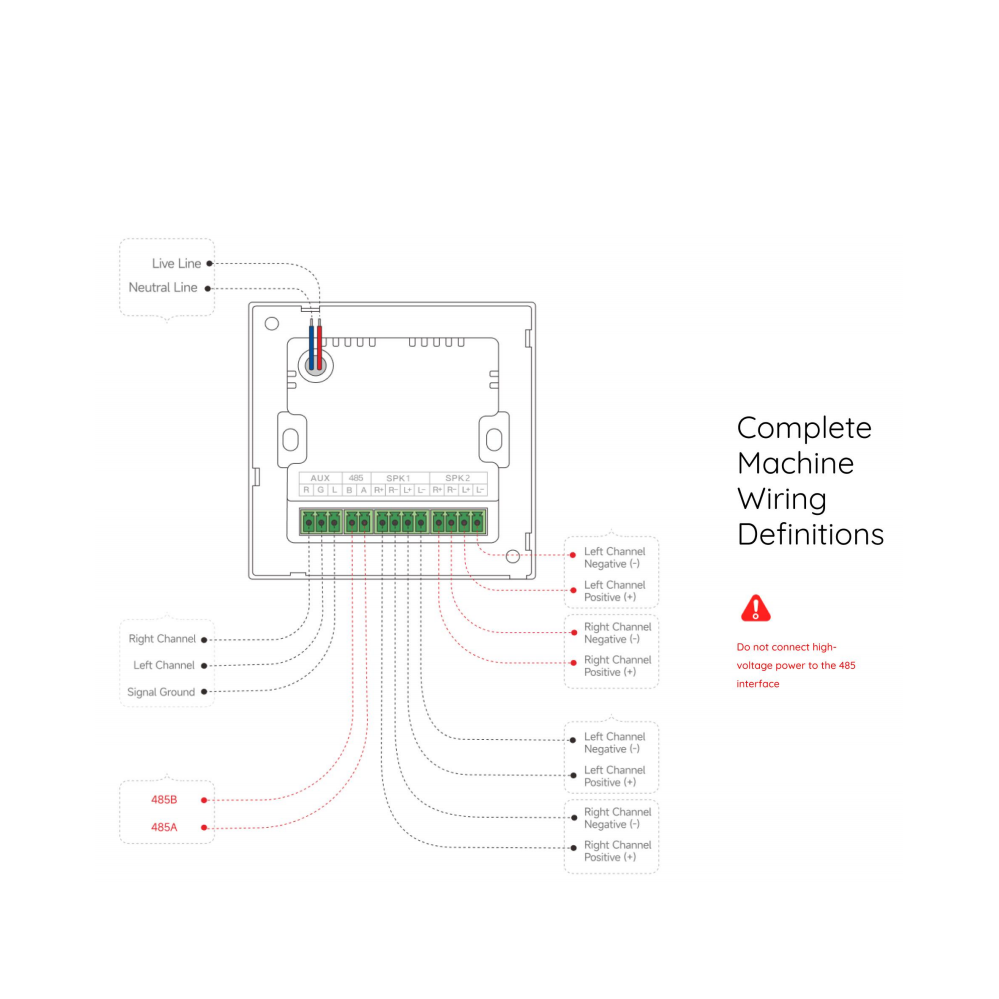

Other Interfaces: RS485, AUX, SPK1, SPK2
Color: Dark Gray
Microphone Array: Dual-microphone voice control
Dimensions: 86mm*86mm*10mm
Mounting Dimensions: 86mm*86mm*70mm

Packing Information

Size(Appearance): 86mm*86mm*10mm
Size(Install): 86mm*86mm*70mm
Size(Packingbox): 86mm*86mm*10mm
Carton size: 31.5*27*21cm, 10pcs/ctn
NW/GW: 3.8/4kg

Usage Instructions Video

https://youtu.be/4zFmVbSpYGg

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
H9 Smart Central Control Screen Standard Version	H9 Smart Central Control Screen Standard Version $132.99/ea	$0.00	Quantity	$132.99/ea	$0.00

H9 Smart Central Control Screen with Tuya Wifi	H9 Smart Central Control Screen with Tuya Wifi $155.99/ea	$0.00	Quantity	$155.99/ea	$0.00

H9 Smart Central Control Screen in Zigbee	H9 Smart Central Control Screen in Zigbee $164.99/ea	$0.00	Quantity	$164.99/ea	$0.00

Packaging box customization (minimum order of 500 pieces)	Packaging box customization (minimum order of 500 pieces) $132.99/ea	$0.00	Quantity Sold out	$132.99/ea	$0.00

View cart

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.

View cart

Whole-house Smart Home Linkage

H9 Smart Central Control Screen

Multimodal Gateway

This Linux-based central control screen gateway supports Bluetooth, WiFi, and Tuya ZigBee1 protocols, enabling efficient connectivity between multiple rooms and devices. It functions as a four-in-one device: Tuya ZigBee gateway, smart switch panel, AI voice-controlled speaker, and background music host.

Full-screen Central Control

Original small icons and exquisite interactive details, with different page categories on the left, center, and right screens, provide both quick operation and an aesthetically pleasing experience. Supports remote control via mobile app, voice control, and touch control; a simple tap or voice command allows you to control all your home devices, meeting the diverse needs of different users.
