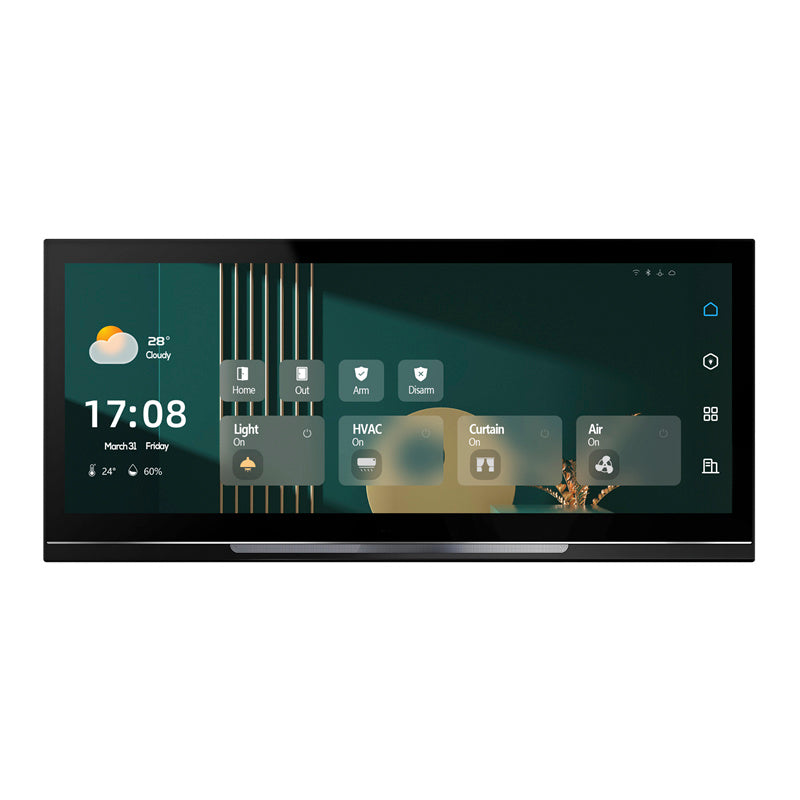

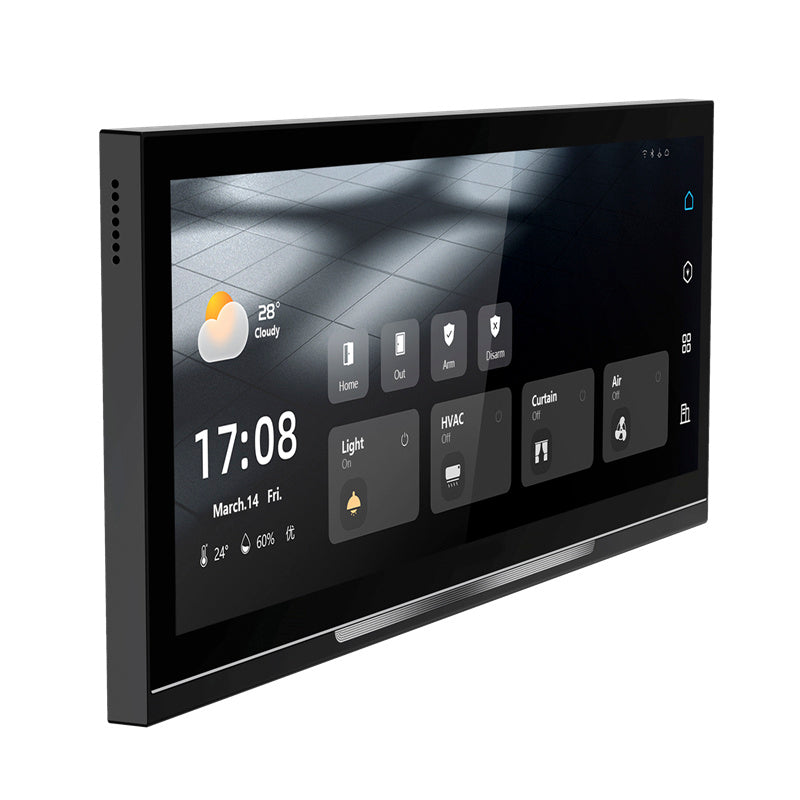

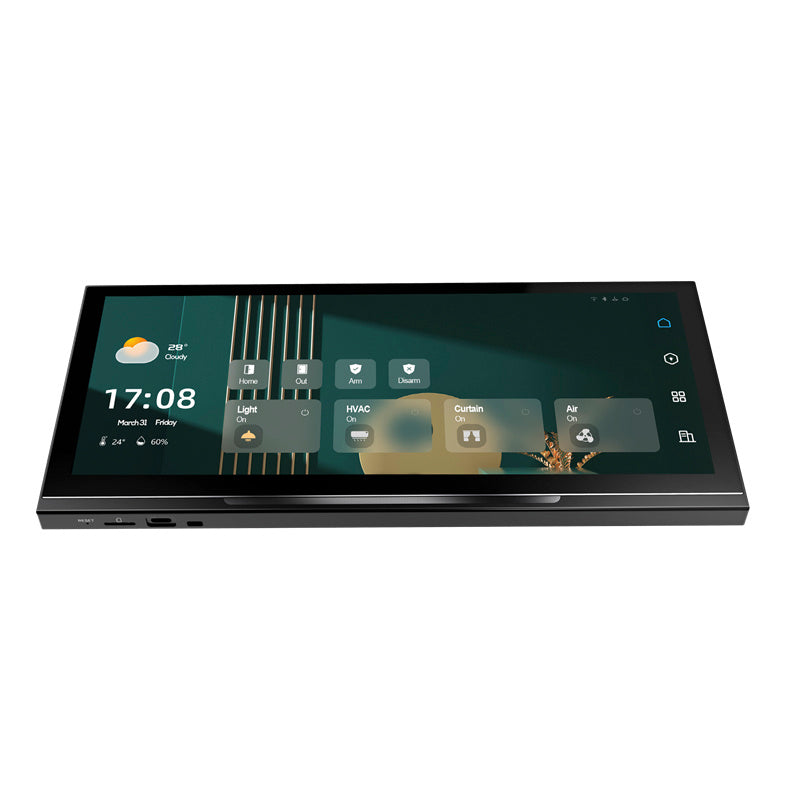

Chuyun CT12 12-inch Tuya Central Control Screen

1. Material: Tempered glass panel + metal body + ABS/PC bottom shell + V0 fire retardant rating
2. Operating System: Android 11
3. CPU: Quad-core Cortex™-A55
4. Clock Speed/Computing Power: 1.8GHz
5. RAM + ROM: 2GB + 16GB
6. Camera: 1MP
7. Screen: 12.3″ TFT HD IPS capacitive touchscreen, fully laminated, 10-point multi-touch
8. Resolution: 1920*720
9. Operation Methods: Touch, voice, proximity sensing
10. Wireless Network: 2.4G/5G, supports IEEE802.11b/g/n
11. Ethernet Interface: Dual network ports, 10/100M adaptive
12. Other Interfaces: 8-channel security (supports wireless security alarm), 1-channel doorbell, 4-channel high-voltage power, dual RS485
13. Power Supply: DC power supply 12V 1.5A Standard 48V PoE

1. Communication methods: TCP/IP/WIFI/Bluetooth/Zigbee 3.0/RS485*2
2. Microphone: Four-microphone linear array
3. Speaker: 2W*2 soft-sound speaker
4. Voice recognition: Four-microphone array, symmetrical noise reduction, 5-meter far-field recognition
5. Relay: 4-channel relay
6. Load capacity: 10A relay, maximum single-channel load 400W
7. Light sensor: Ultra-sensitive light sensor (light/distance combined), senses ambient brightness
8. Proximity Sensor: 80cm proximity sensor (light/proximity combined, detects human presence and automatically illuminates the screen)
9. Temperature and Humidity Sensor Accuracy: Temperature ±1℃, Humidity ±5%
10. SD Card Slot Location: Bottom right corner
11. Product Dimensions: 309.2*129*9.5mm
12. Installation Method: Magnetic mounting with dual 86-type chassis
13. Operating Temperature: -10°C to +55°C
14. Operating Humidity: 5% to 95%RH (non-condensing)

Size(Appearance): 289mm*156mm*11mm
Size(Install): 86mm*86mm*70mm
Size(Packingbox): 355.5*211*100mm
Carton size: 52*37*43.5cm10pcs/ctn.
NW/GW:20/22KGS
