Chuyun C8 4 inch HD Smart Central Control Screen Panel

Chuyun C8 4 inch HD Smart Central Control Screen Panel

Regular price $175.99 USD
Regular price Sale price $175.99 USD
Sale Sold out
Shipping calculated at checkout.

Speaker C8 Smart Control Screen

Product features

1. Supports wireless background music systems
2. Supports access control systems and dual networks
3. Supports whole-house calling and point-to-point intercom
4. Domestic version integrates genuine QQ Music
5. Supports connection to Bluetooth speakers
6. Non-gateway version supports 485

Performance Parameters

Display: 4-inch HD IPS LCD 480 * 480
System: Android 10.0
CPU: R818 Cortex-A53 Quad-core 1.5GHz
RAM/Internal Memory: 1GB/8GB
TF Card: Up to 32GB
Power Supply: 220V, 50Hz/AC
Background Music System: HomeOS 5.0
Speaker Output: 1.0W*1
Impedance: 8Ω
Bluetooth Speakers: 4 (S530-B S530*3, maximum 1-to-3 use)
Ethernet: 10/100M Ethernet

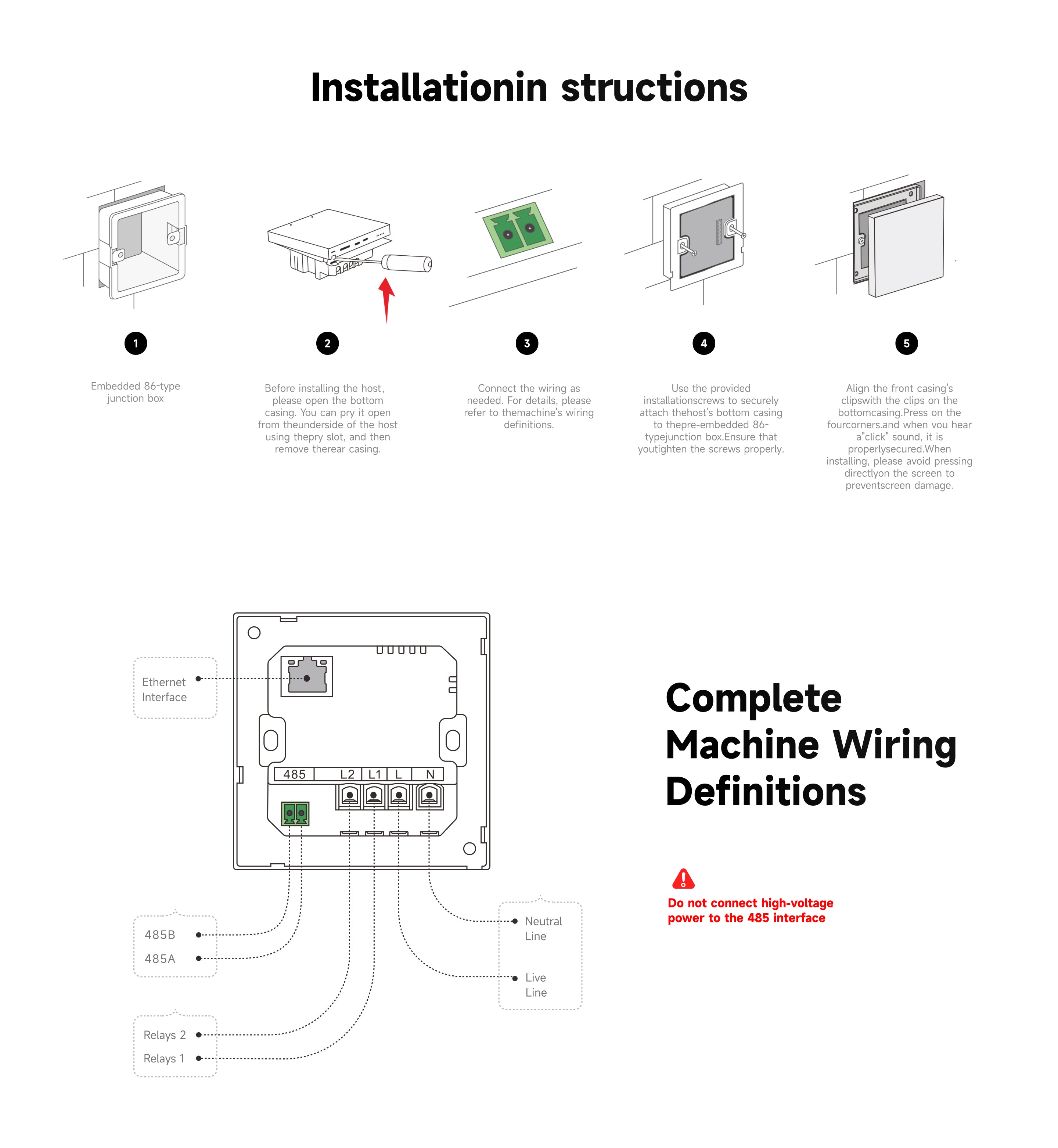

Other Interfaces: RS485, Live and Neutral Wire Interfaces (L, N), Two Relays (L1, L2)
Color: Dark Gray
Microphone Array: Dual Microphone Voice Control
Dimensions: 86mm*86mm*10mm
Mounting Dimensions: 86mm*86mm*70mm

Packing Information

Size( Appearance:86mm*86mm*10mm
Size:(Install):86mm*86mm*70mm
Size:( Packingbox):86mm*86mm*10mm
Carton size:31.5*27*21cm, 10pcs/ctn
NW/GW: 3.8/4kgs

Usage Instructions Video

View full details
Your cart
Variant Variant total Quantity Price Variant total
C8 Smart Central Control Screen Standard Version
C8 Smart Central Control Screen Standard Version
$175.99/ea
$0.00
$175.99/ea $0.00
C8 Smart Central Control Screen with Tuya Wifi
C8 Smart Central Control Screen with Tuya Wifi
$198.99/ea
$0.00
$198.99/ea $0.00
C8 Smart Central Control Screen in Zigbee
C8 Smart Central Control Screen in Zigbee
$207.99/ea
$0.00
$207.99/ea $0.00
C8 Smart Central Control Screen Mi House Version
C8 Smart Central Control Screen Mi House Version
$178.99/ea
$0.00
Sold out
$178.99/ea $0.00
Packaging box customization (minimum order of 500 pieces)
Packaging box customization (minimum order of 500 pieces)
$175.99/ea
$0.00
Sold out
$175.99/ea $0.00

View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart

Whole-house Smart Home Linkage

Smart Home System

C8 Smart Central Control Screen

 H9 Smart Screen 4

Multimodal Gateway

This Linux-based central control screen gateway supports Bluetooth, WiFi, and Tuya ZigBee1 protocols, enabling efficient connectivity between multiple rooms and devices. It functions as a four-in-one device: Tuya ZigBee gateway, smart switch panel, AI voice-controlled speaker, and background music host.

 H9 Smart Screen 5

Full-screen Central Control

Original small icons and exquisite interactive details, with different page categories on the left, center, and right screens, provide both quick operation and an aesthetically pleasing experience. Supports remote control via mobile app, voice control, and touch control; a simple tap or voice command allows you to control all your home devices, meeting the diverse needs of different users.

Function

 H9 Smart Screen 6
 H9 Smart Screen 7
 C8 Smart Screen 6
