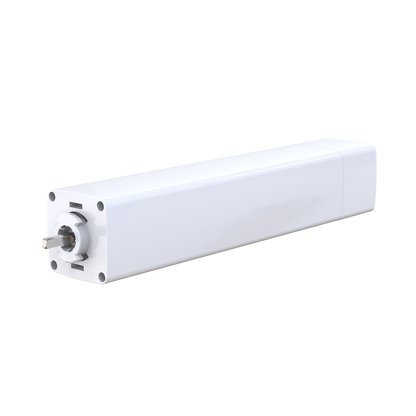

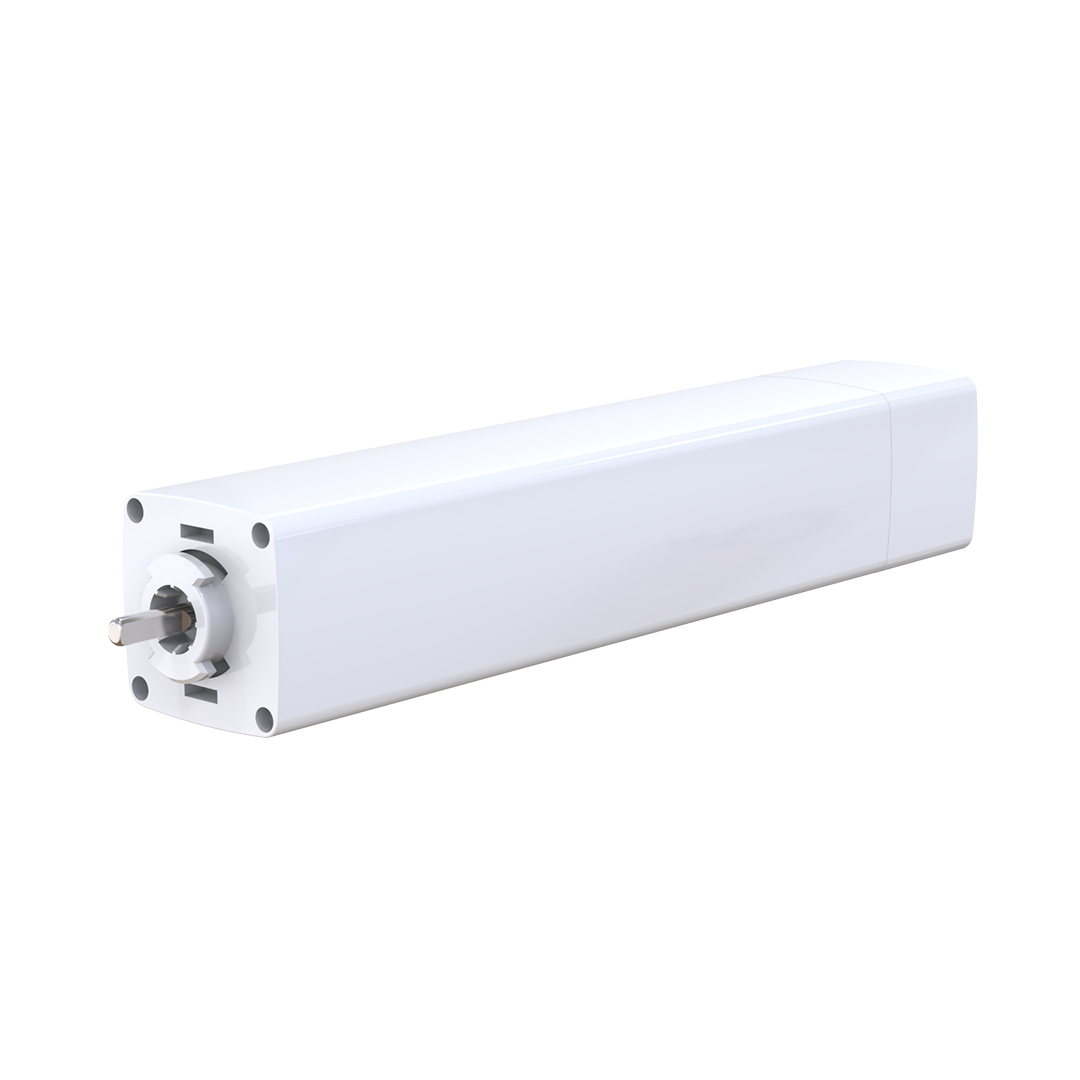

• BCM100DA-RS485 Curtain Motor 1

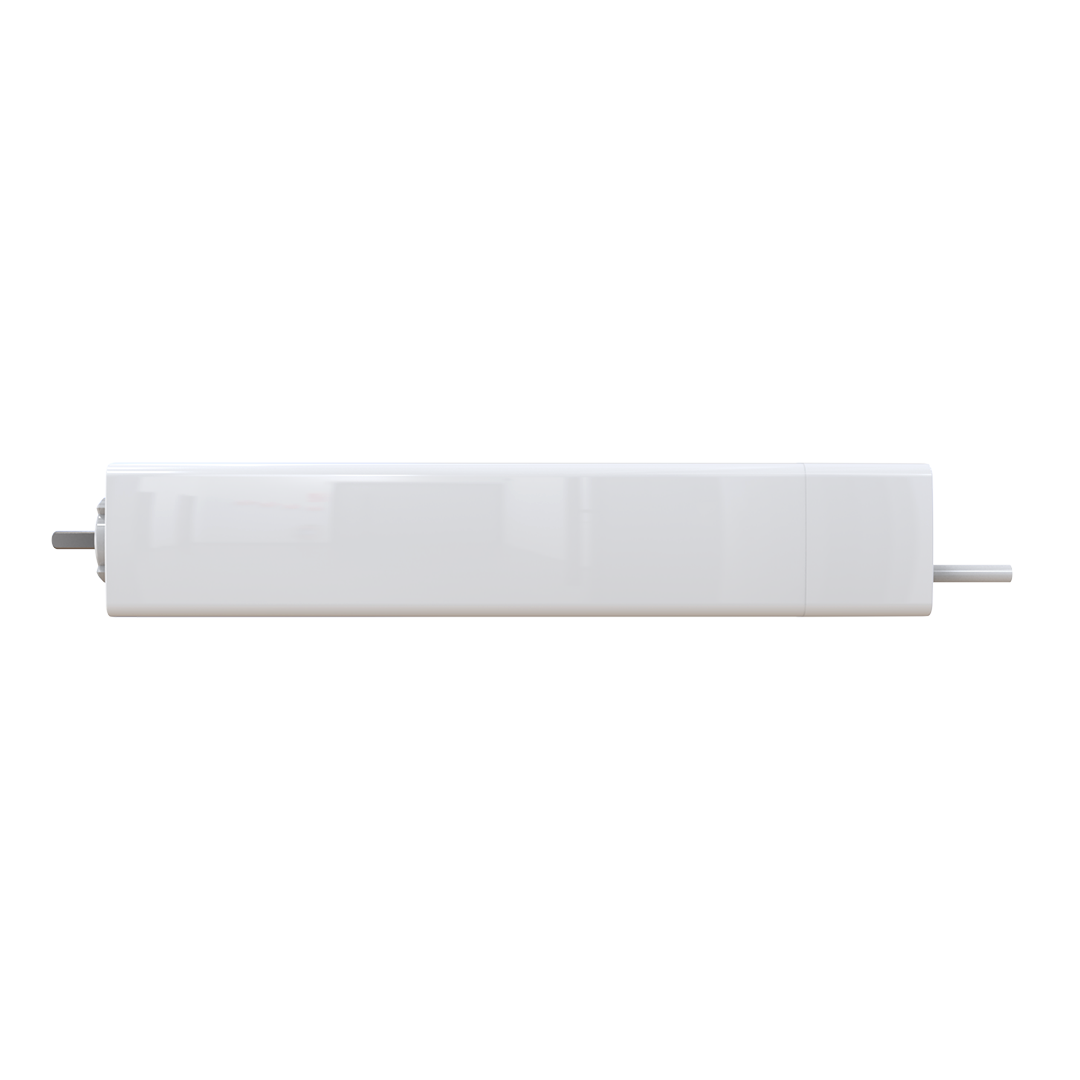

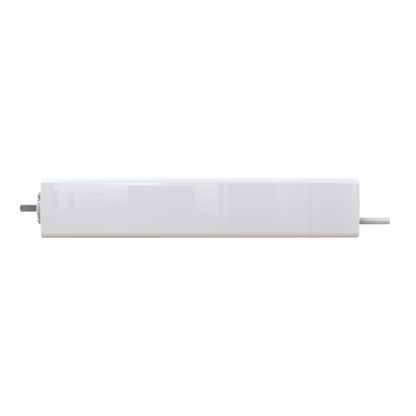

  • BCM100DA-RS485 Curtain Motor 2

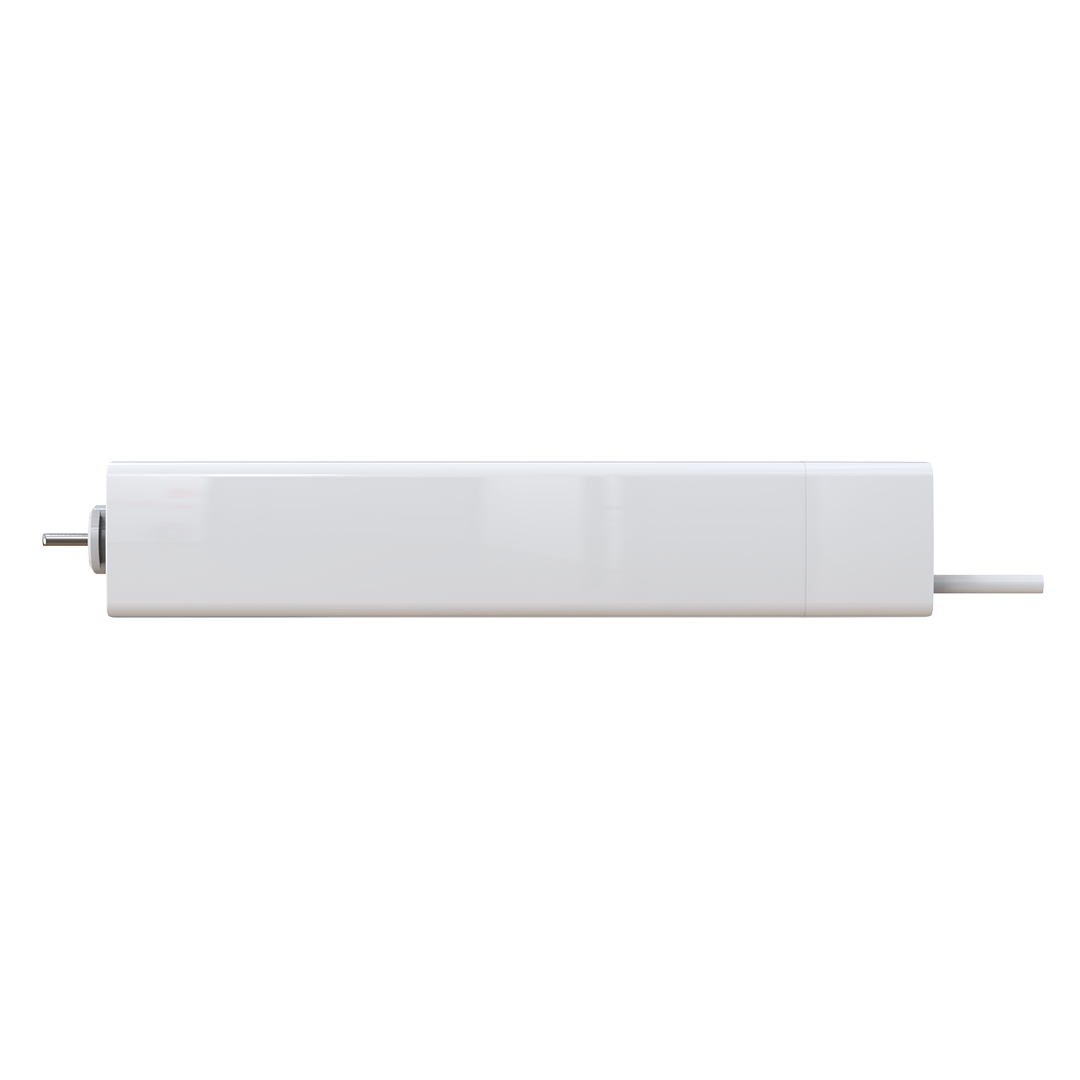

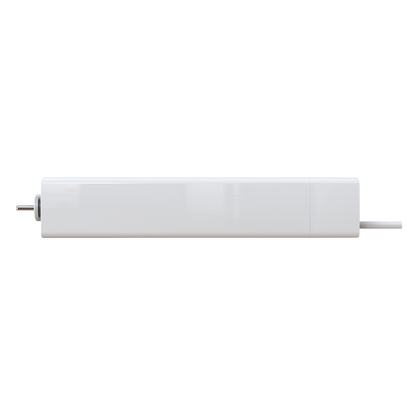

  • BCM100DA-RS485 Curtain Motor 3

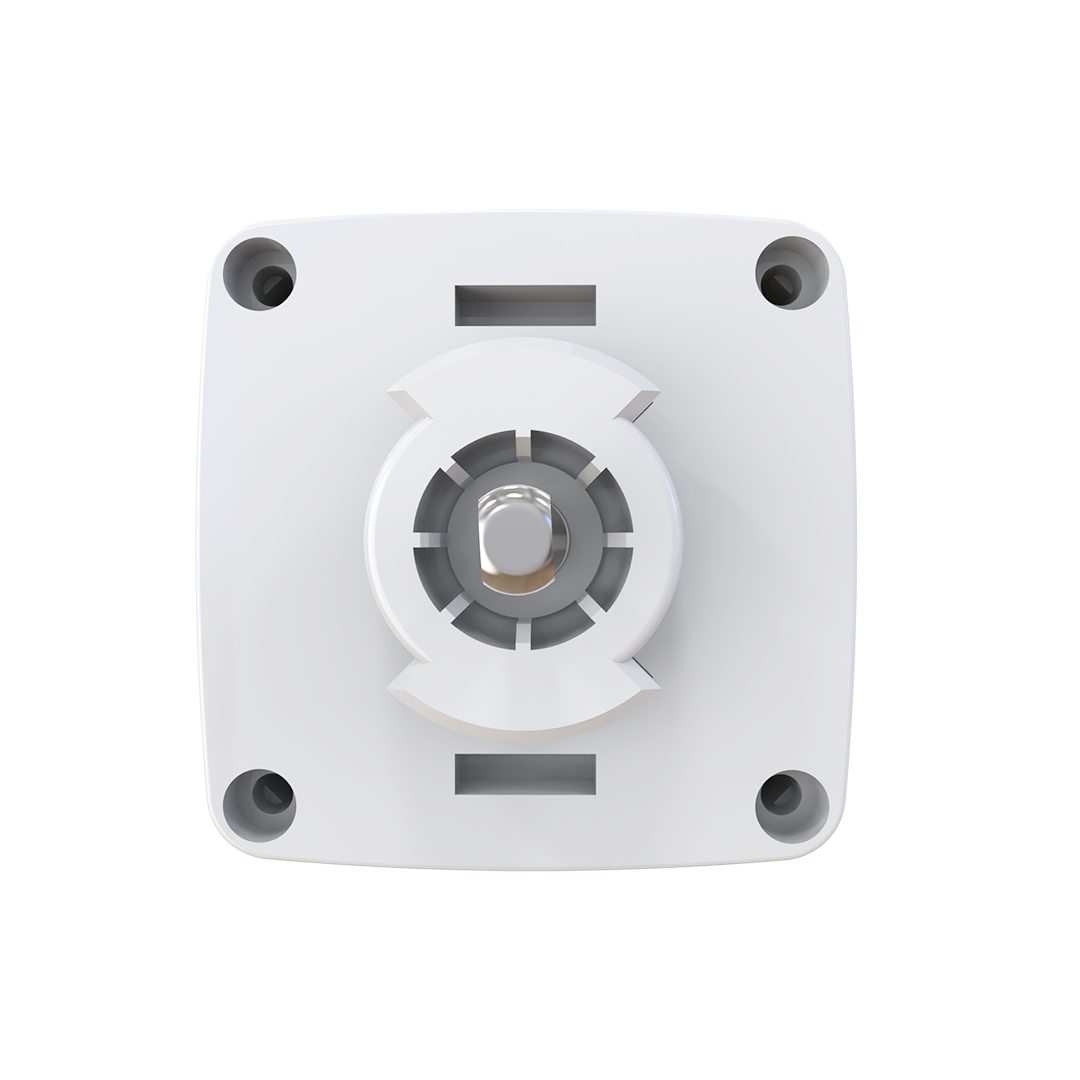

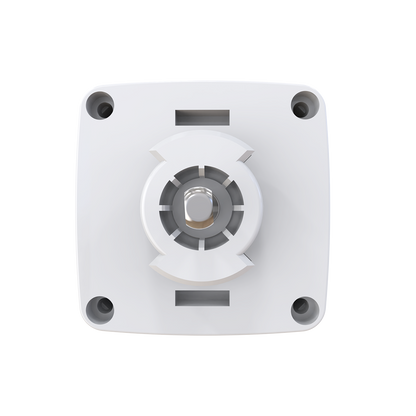

  • BCM100DA-RS485 Curtain Motor 4

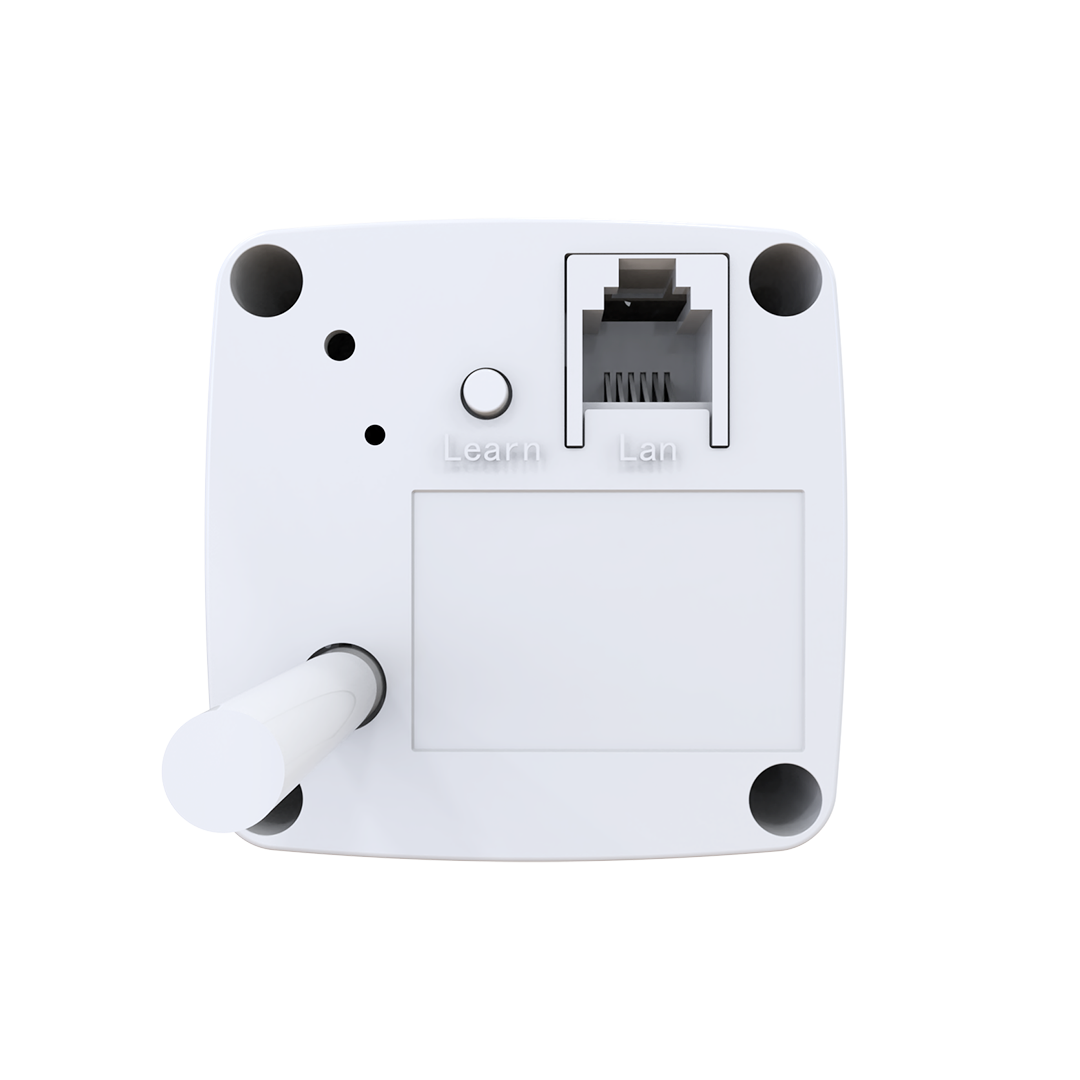

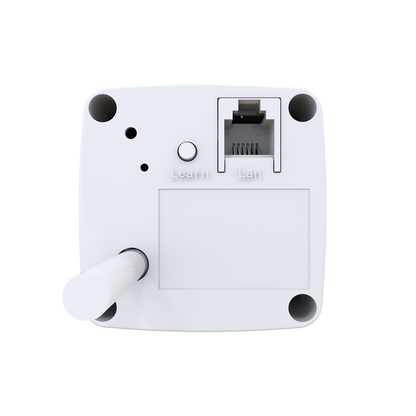

  • BCM100DA-RS485 Curtain Motor 5
  • Smart Curtain Motor
  • Smart Curtain Motor 1
1 7

Chuyun BCM100DA-RS485 Smart Curtain Motor

Chuyun BCM100DA-RS485 Smart Curtain Motor

$81.99 USD
$81.99 USD
Sale Sold out
Shipping calculated at checkout.

RS485 Smart Curtain Motor

Product features

1. Stop upon encountering an obstacle
2. Start by manually pulling the curtains
3. Slow start and gentle stop
4. Automatically set travel distance
5. Curtains can be manually pulled during power outages

Performance Parameters

Model: BCM100DA-RS485
Name: Modular Built-in Curtain Motor (RS485)
Rated Torque: 1.5NM
Rated Speed: 50rpm
No-Load Speed: 95rpm
Operating Speed: 12CM/S
Rated Voltage: AC100V-240V 50/60HZ
Rated Power: 40W
Standard: GB/T 12350-2009
Ambient Temperature: -10°C~60°C
Humidity: 90%RH
Other Parameters: IP20, RF433
Dimensions: 50mm*50mm*270mm

Packing Information

Motor dimensions: 50mm*50mm*270mm
Small package dimensions (2m~5m): 1055mm*229mm*75mm
Large package dimensions (6m~8m): 1055mm*301mm*75mm
Packaging requirements can be changed according to customer needs.

Usage Instructions Video

https://youtu.be/gg7q7JkzqDU

View full details
Variant Variant total Quantity Price Variant total
with Curtain track kit 2.2M
with Curtain track kit 2.2M
$81.99/ea		 $0.00
$81.99/ea $0.00
with Curtain track kit 3.2M
with Curtain track kit 3.2M
$91.99/ea		 $0.00
$91.99/ea $0.00
with Curtain track kit 4.2M
with Curtain track kit 4.2M
$101.99/ea		 $0.00
$101.99/ea $0.00
with Curtain track kit 5.2M
with Curtain track kit 5.2M
$111.99/ea		 $0.00
$111.99/ea $0.00
with Curtain track kit 6.2M
with Curtain track kit 6.2M
$121.99/ea		 $0.00
$121.99/ea $0.00
with Curtain track kit 7.2M
with Curtain track kit 7.2M
$131.99/ea		 $0.00
$131.99/ea $0.00
with Curtain track kit8.2M
with Curtain track kit8.2M
$141.99/ea		 $0.00
$141.99/ea $0.00
Single-frequency remote control
Single-frequency remote control
$5.99/ea		 $0.00
$5.99/ea $0.00
Dual-frequency remote control
Dual-frequency remote control
$7.99/ea		 $0.00
$7.99/ea $0.00
Only motor without curtain track
Only motor without curtain track
$40.99/ea		 $0.00
$40.99/ea $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart

Whole-house Smart Home Linkage

Smart home devices3.png__PID:bb301988-e891-4250-95d6-064f5cefad98

Chuyun BCM100DA-RS485 Smart Curtain Motor

Smart Curtain Motor 3

APP Remote Control

Control your curtains anywhere/anytime via phone APP

Smart Curtain Motor 4

Suitable for Various Spaces

Enjoy seamless control, energy efficiency, and reliable performance tailored to modern smart home lifestyles.
