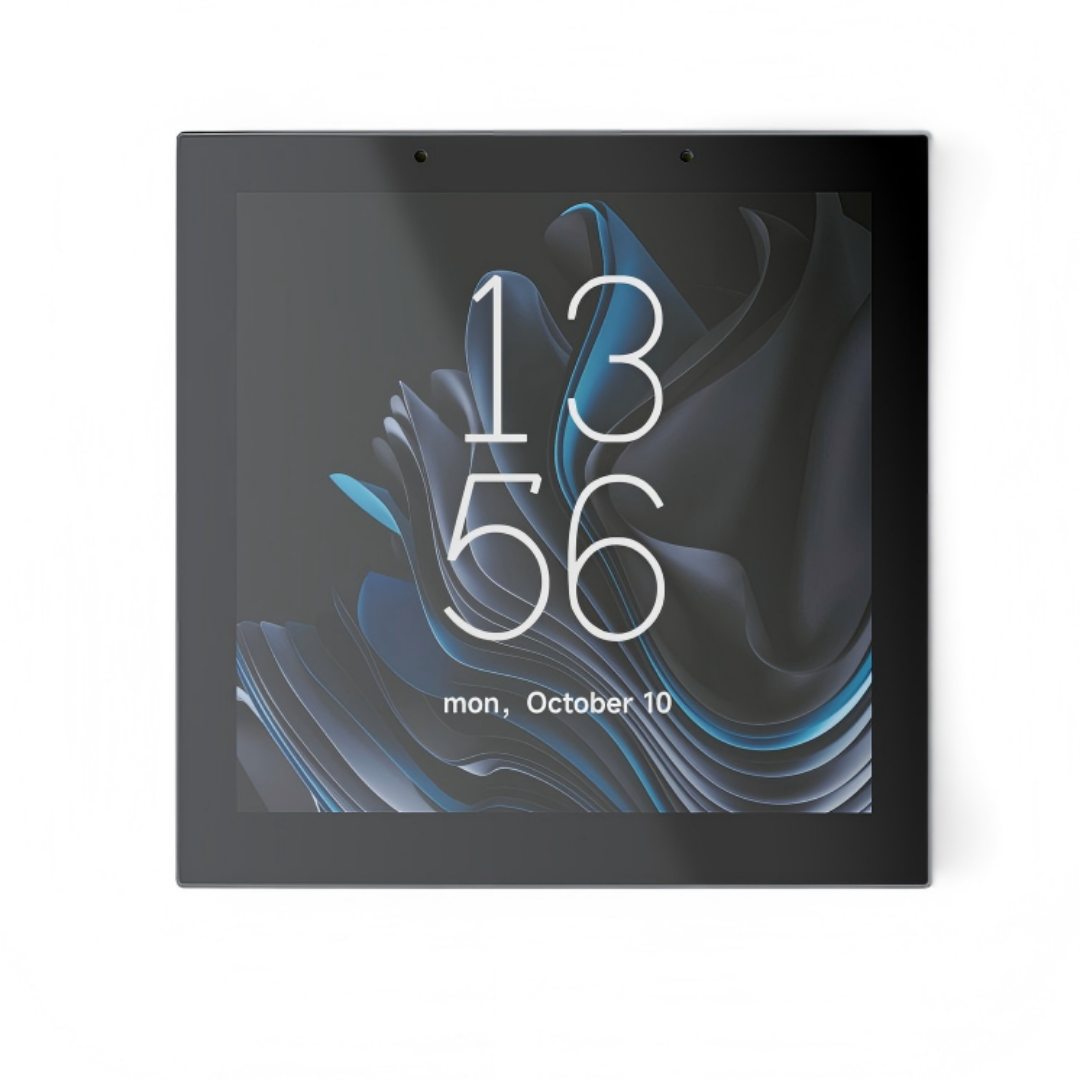

Chuyun B8 4 inch HD Smart Central Control Screen Panel

$187.99 USD

Sale Sold out

Shipping calculated at checkout.

Speaker B8 Smart Control Screen

Product features

1. Supports wired background music systems
2. Supports access control systems and dual networks
3. Supports whole-house calling and point-to-point intercom
4. Domestic version integrates genuine QQ Music
5. Supports connection to wired speakers
6. Non-gateway version supports 485
7. Supports connection to mobile phones via Bluetooth

Performance Parameters

Display: 4-inch IPS 480*480
System: Android 10.0
CPU: Cortex-A53 Quad-core 1.5G
RAM/Internal Memory: 1G/8G
TF Card: Up to 32GB
Power Supply: 220V, 50Hz/AC
Background Music System: HomeOS 6.0
Power Output: 10W*4
Impedance: 8Ω
Wired Speakers: 4

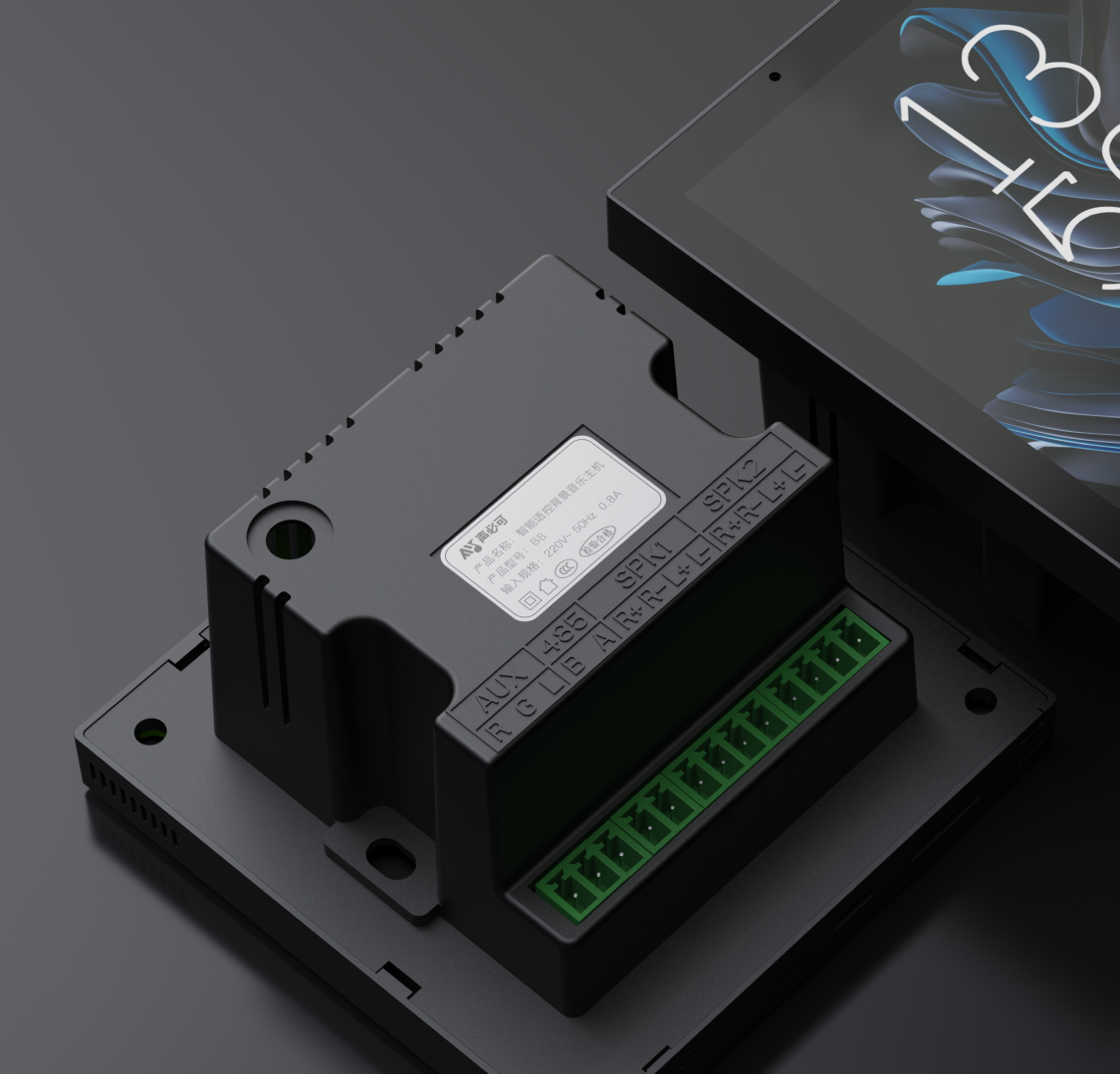

Other Interfaces: RS485, AUX, SPK1, SPK2
Color: Dark Gray
Microphone Array: Dual-microphone voice control
Dimensions: 86mm*86mm*10mm
Mounting Dimensions: 86mm*86mm*70mm

Packing Information

Size（ Appearance:86mm*86mm*10mm
Size:(Install):86mm*86mm*70mm
Size:（ Packingbox）:86mm*86mm*10mm
carton size:31.5*27*21cm ， 10pcs/ctn
NW/GW: 4.5/5.5kgs

Usage Instructions Video

https://youtu.be/4zFmVbSpYGg

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
B8 Smart Central Control Screen Standard Version	B8 Smart Central Control Screen Standard Version $187.99/ea	$0.00	Quantity	$187.99/ea	$0.00

B8 Smart Central Control Screen with Tuya Wifi	B8 Smart Central Control Screen with Tuya Wifi $210.99/ea	$0.00	Quantity	$210.99/ea	$0.00

B8 Smart Central Control Screen in Zigbee	B8 Smart Central Control Screen in Zigbee $219.99/ea	$0.00	Quantity	$219.99/ea	$0.00

B8 Smart Central Control Screen Mi House Version	B8 Smart Central Control Screen Mi House Version $190.99/ea	$0.00	Quantity	$190.99/ea	$0.00

Packaging box customization (minimum order of 500 pieces)	Packaging box customization (minimum order of 500 pieces) $187.99/ea	$0.00	Quantity Sold out	$187.99/ea	$0.00

View cart

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.

View cart

Whole-house Smart Home Linkage

B8 Smart Central Control Screen

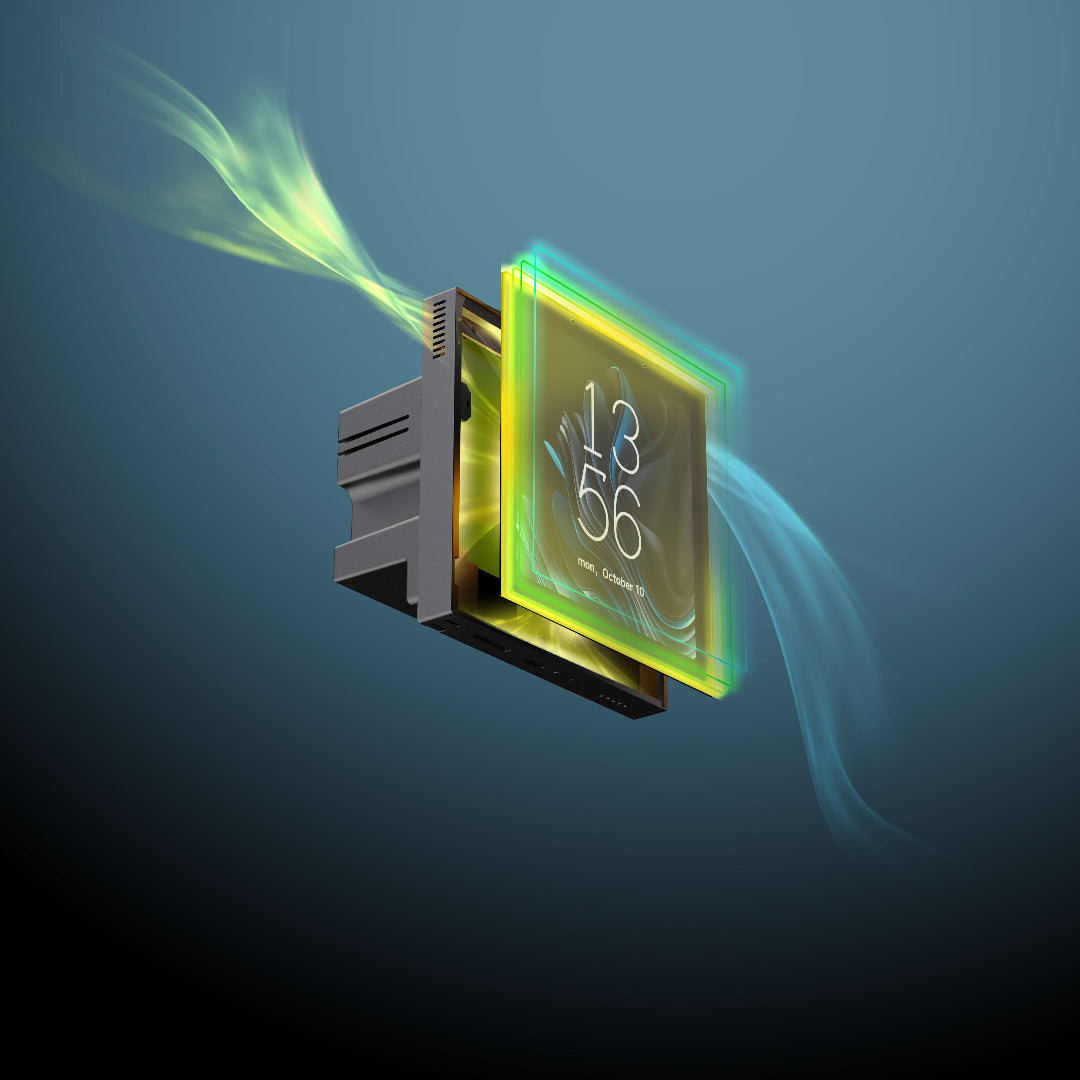

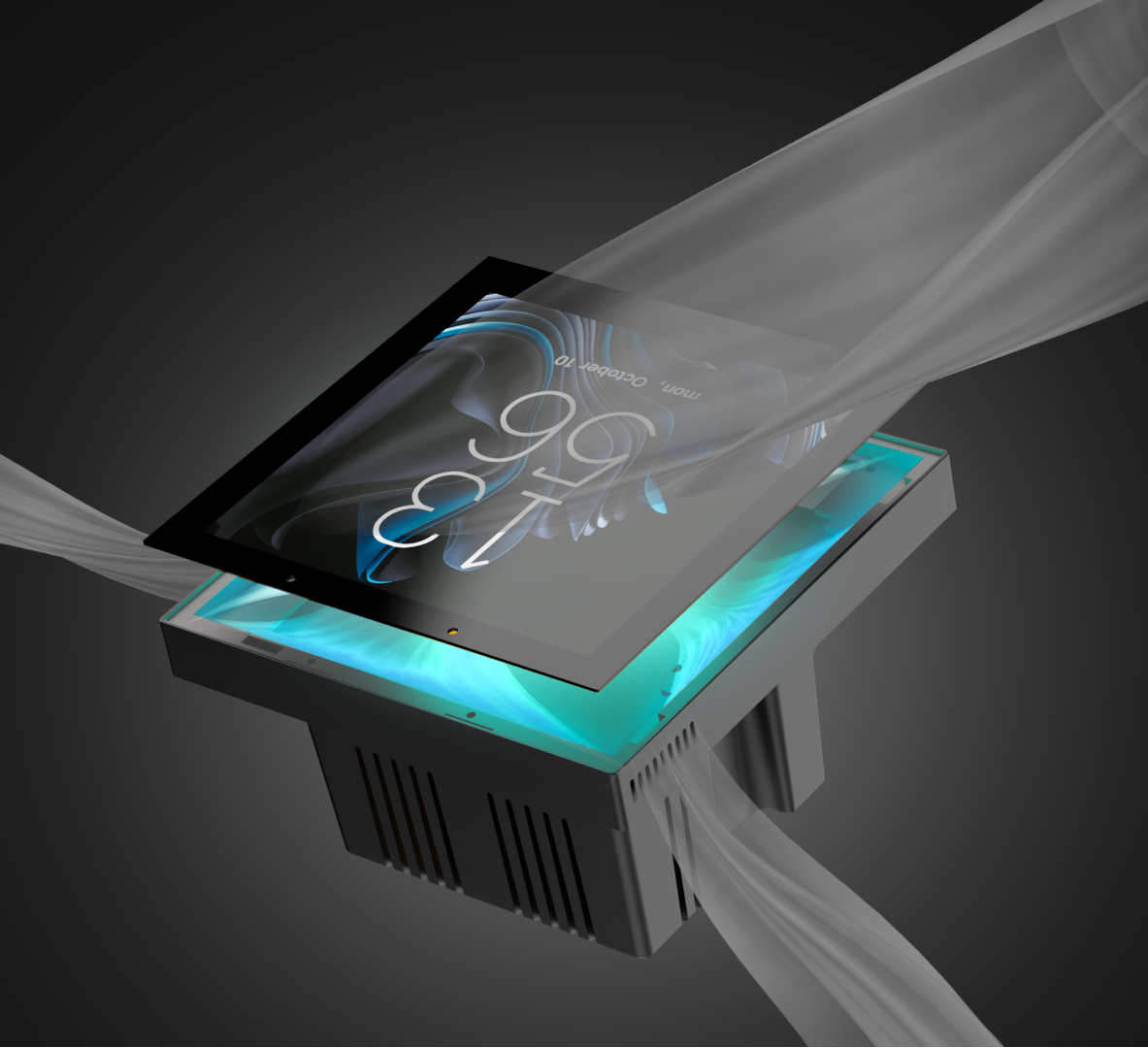

Quad-Layer Cooling Design

By employing an innovative quad-layer cooling design, it ensures that it remains at a low temperature during operation, thus providing superior performance and a cool experience.
