AISpeaker S10 10.1 inch HD LCD Smart Home Control Panel

AISpeaker S10 10.1 inch HD LCD Smart Home Control Panel

$376.99 USD
$376.99 USD
Sale Sold out
Shipping calculated at checkout.

Background Music Smart Control Screen

Product features

1. Supports wireless background music systems
2. Supports access control systems and dual networks
3. Supports whole-house calling and point-to-point intercom
4. Supports family photo albums
5. Supports large and small screen functions (small screen for use with R30)
6. Multi-functional knob for power on/off, temperature and dimming adjustment
7. Domestic version integrates genuine QQ Music
8. Supports Bluetooth speaker connection
9. Supports 2.5G/5G WiFi
10. Non-gateway version supports 485

Performance Parameters

Display: 10.1-inch HD IPS LCD 1280*800
System: Android 10.0
CPU: Cortex-A53 Quad-core 1.5G
RAM/Internal Memory: 1G/8G
TF Card: Up to 32GB
Power Supply: 220V, 50Hz/AC
Background Music System: HomeOS 6.0
Speaker Output: 1.0W*2
Impedance: 8Ω
Bluetooth Speakers: 4 (S530-B S530*3, maximum 1-to-3 use)
Ethernet: 10/100M Ethernet

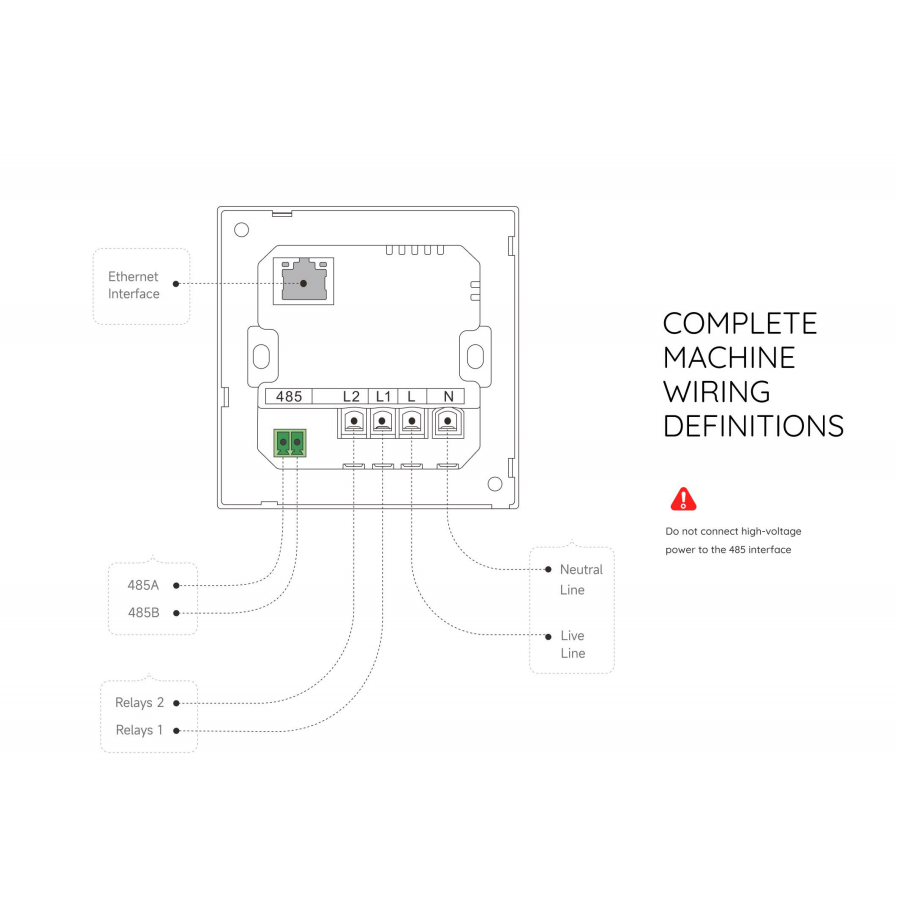

Non-KNX Interfaces: RS485, L (Live), N (Neutral), Two Relays (L1, L2)
KNX Interfaces: Two Relays (L1, L2), +KNX-, +AUX-, L, Ethernet 10/100M Ethernet
Color: Interstellar Gray
Microphone Array: Dual Microphones
Dimensions: 289mm*156mm*11mm
Mounting Dimensions: 86mm*86mm*70mm

Packing Information

Size（ Appearance:289mm*156mm*11mm
Size:(Install):86mm*86mm*70mm
Size:（ Packingbox） :355.5*211*100mm
carton size: 52*37*43.5cm10pcs/ctn.
NW/GW:16/17KGS

Usage Instructions Video

https://youtu.be/xWaNkKJsFXI

View full details
Variant Variant total Quantity Price Variant total
S10 Smart Central Control Screen Standard Version
S10 Smart Central Control Screen Standard Version
$376.99/ea		 $0.00
$376.99/ea $0.00
S10 Smart Central Control Screen with Tuya Wifi
S10 Smart Central Control Screen with Tuya Wifi
$398.99/ea		 $0.00
$398.99/ea $0.00
S10 Smart Central Control Screen in Zigbee
S10 Smart Central Control Screen in Zigbee
$407.99/ea		 $0.00
$407.99/ea $0.00
S10 Smart Central Control Screen Mi Home Version
S10 Smart Central Control Screen Mi Home Version
$379.99/ea		 $0.00
$379.99/ea $0.00
S10 Smart Central Control Screen KNX Version
S10 Smart Central Control Screen KNX Version
$552.99/ea		 $0.00
$552.99/ea $0.00
Packaging box customization (minimum order of 500 pieces)
Packaging box customization (minimum order of 500 pieces)
$523.99/ea		 $0.00
Sold out
$523.99/ea $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart

Whole-house Smart Home Linkage

Smart Home System

Speaker S10 Smart Central Control Screen

S10 Smart Screen 4

Intelligent Dimming

When automatic brightness adjustment is enabled, the host will automatically adjust the screen brightness according to the current ambient light level; when automatic screen off is enabled, the host will automatically turn off the screen when the ambient light is too low.

S10 Smart Screen 5

Born for Home


HomeOS 6.0 reimagines smart home interaction with a design built for real family living. Blending clean visual design with tactile knobs, buttons, voice, and touch, it creates intuitive control everyone—from kids to seniors—can easily use.

Function

S10 Smart Screen 6
S10 Smart Screen 8
S10 Smart Screen 7
