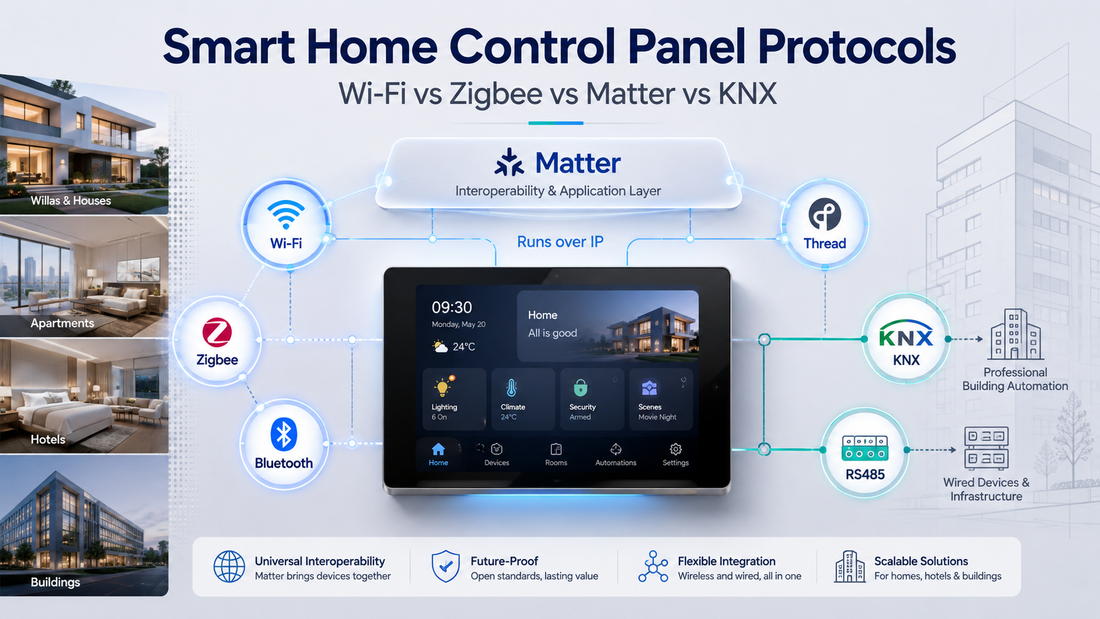

Wi-Fi vs Zigbee vs Matter vs KNX: Which Protocol Should a Smart Home Control Panel Support?

Choosing the right smart home control panel protocols is no longer a simple question of Wi-Fi versus Zigbee.

Modern control panels may need to communicate with wireless sensors, lighting circuits, HVAC equipment, curtain motors, smart locks, energy meters, room controllers, cloud platforms, voice assistants, and building management systems. As a result, one project may involve Wi-Fi, Zigbee, Bluetooth, Matter, Thread, KNX, and RS485 at the same time.

However, these technologies do not all sit at the same technical layer.

This distinction is especially important when discussing Matter. Matter should not be treated as simply another wireless protocol competing directly with Wi-Fi or Zigbee. Matter is an IP-based application-layer interoperability standard that can operate over IP networking technologies including Wi-Fi, Ethernet, and Thread. Thread, meanwhile, is an IP-based low-power mesh networking technology. Zigbee is closer to a complete IoT stack, while RS485 is fundamentally a physical-layer electrical interface rather than a smart-home application protocol.

Therefore, the real question for a product manager or system integrator is:

Which combination of technologies should a smart home control panel support to match the devices, infrastructure, reliability requirements, and lifecycle of the project?

This guide explains the differences and provides practical recommendations for villas, apartments, hotels, and larger smart-building projects.

---

Why Protocol Choice Matters

The protocol architecture of a control panel affects far more than whether a light switch can be turned on.

It determines:

• which devices can be connected;

• whether a separate gateway is required;

• whether automation continues when the Internet is unavailable;

• how many wireless devices can be deployed;

• how easily products from different vendors can be integrated;

• whether the project can use battery-powered sensors;

• how the system communicates with HVAC and electrical equipment;

• whether an installer can integrate the panel with an existing KNX or RS485 system;

• how easily the installation can be expanded in five or ten years.

For a consumer apartment, simplicity and device availability may be the priorities. For a luxury villa, reliability and long-term interoperability may matter more. For a hotel, room automation must normally continue even when cloud services or Internet connectivity are unavailable.

That is why there is rarely one universally “best” protocol.

A professional control panel increasingly needs to act as an integration point between several communication technologies.

Technology	What It Mainly Provides	Typical Strength
Wi-Fi	IP network connectivity	High bandwidth and existing infrastructure
Zigbee	Low-power wireless mesh + device/application framework	Sensors, switches, lighting
Bluetooth LE	Short-range wireless connectivity	Commissioning and direct mobile connection
Bluetooth Mesh	Bluetooth-based many-to-many mesh	Lighting and distributed control
Matter	IP-based interoperability/application standard	Cross-ecosystem compatibility
Thread	Low-power IPv6 mesh networking	Battery devices and Matter-over-Thread
KNX	Building automation protocol ecosystem	Professional wired building control
RS485	Differential serial physical layer	HVAC, meters and industrial/room equipment

Understanding this difference is the foundation for evaluating smart home control panel protocols correctly.

---

Wi-Fi Explained

Wi-Fi is often the most straightforward connectivity option for a smart control panel because homes, apartments, hotels, and offices already have IP networks.

A WiFi smart home control panel can connect directly to the local network without requiring a dedicated wireless gateway in the same way that a Zigbee endpoint normally requires a Zigbee coordinator.

Wi-Fi is particularly suitable for devices that:

• are permanently powered;

• require relatively high data throughput;

• communicate directly using IP;

• need cloud connectivity;

• provide video, audio or rich graphical interfaces;

• integrate with web services or mobile applications.

This makes Wi-Fi a natural choice for wall-mounted control panels, smart speakers, cameras, video intercoms, and multimedia devices.

However, it is less ideal as the only technology for a large network of small battery-powered sensors.

Another consideration is network design. Smart-home devices frequently share the 2.4 GHz spectrum with Zigbee, Thread, and Bluetooth devices. Therefore, channel planning, access-point placement, interference management, and network capacity can become important in larger installations.

Wi-Fi should generally be viewed as the IP backbone or high-bandwidth connection, rather than automatically becoming the radio technology for every device in the project.

---

Zigbee Explained

Zigbee has been one of the most established technologies in smart-home wireless networking.

Unlike Wi-Fi, which primarily provides network connectivity, Zigbee offers a more complete IoT stack designed around device-to-device communication and low-power mesh networking. The Connectivity Standards Alliance describes Zigbee as a full-stack IoT solution with self-organizing, self-healing mesh capabilities and support for low-power devices.

This makes Zigbee particularly suitable for:

• smart switches;

• motion sensors;

• door/window sensors;

• temperature sensors;

• smart plugs;

• curtain controllers;

• lighting devices;

• thermostats;

• battery-powered automation devices.

In a Zigbee mesh, permanently powered devices can often participate in extending the network, allowing the coverage of the mesh to grow across a property.

Why Zigbee remains important for control panels

For a manufacturer or system integrator, one of Zigbee's biggest advantages is the existing device ecosystem.

A Zigbee smart control panel with an integrated coordinator can potentially control dozens or hundreds of device models without requiring every device to connect individually to Wi-Fi.

Zigbee is also continuing to evolve rather than simply disappearing because of Matter. The Connectivity Standards Alliance announced Zigbee 4.0 in 2025 while maintaining backward compatibility with existing Zigbee 3.0 and Smart Energy deployments.

For current projects, therefore, the practical question is usually not “Zigbee or Matter?”

It is often:

Should the control panel support both Zigbee and Matter?

For many product portfolios, the answer is yes.

---

Bluetooth Explained

Bluetooth in smart-home products should also be divided into different use cases.

Bluetooth Low Energy

Bluetooth LE is frequently used for:

• product commissioning;

• configuration;

• temporary direct communication;

• smartphone-to-device communication;

• proximity functions.

For example, Matter historically used Bluetooth LE extensively during device onboarding, although newer Matter revisions have also introduced additional commissioning methods.

Bluetooth can therefore be useful even when it is not the main automation network.

Bluetooth Mesh

Bluetooth Mesh is different from a normal point-to-point Bluetooth connection.

It is designed for many-to-many device communication and is particularly relevant to control, monitoring, automation, and networked lighting applications. Bluetooth SIG documentation describes Bluetooth Mesh as a distributed architecture that does not require a centralized controller for normal mesh operation.

Consequently, when a supplier simply says a control panel “supports Bluetooth,” buyers should ask:

Bluetooth for what?

Bluetooth LE commissioning, direct Bluetooth control, Bluetooth Mesh gateway functionality, and Bluetooth audio are completely different capabilities.

---

Matter Explained

Matter is one of the most misunderstood technologies in smart-home product specifications.

A Matter smart control panel should not be described simply as a panel containing another wireless radio comparable to Zigbee.

Matter is an IP-based interoperability and application-layer standard.

It defines how compatible smart-home devices expose functions and communicate within a standardized ecosystem. Matter can operate over IP-capable networks such as:

• Wi-Fi;

• Ethernet;

• Thread.

The Connectivity Standards Alliance explicitly describes Matter as an IP-based connectivity protocol and confirms native support for Wi-Fi, Ethernet, and Thread.

This means:

Matter over Wi-Fi and Matter over Thread are both Matter, but they use different underlying network technologies.

That distinction has important hardware implications.

A control panel may support Matter devices over Wi-Fi while having no IEEE 802.15.4 radio and therefore no ability to provide Thread infrastructure.

Similarly, displaying a Matter logo does not automatically tell an integrator whether the panel functions as:

• a Matter controller;

• a Matter commissioner;

• a Matter bridge;

• a Thread Border Router;

• or simply a client connected to another Matter ecosystem.

These roles should be clearly defined in professional B2B specifications.

Matter does not automatically replace Zigbee or KNX

Matter improves cross-brand interoperability, but it does not mean every legacy or professional building protocol becomes unnecessary.

A manufacturer may, for example, use Zigbee internally for a mature sensor ecosystem while exposing devices to a Matter ecosystem through an appropriate bridge architecture.

Likewise, a luxury villa can use KNX for fixed building infrastructure while allowing Matter devices to coexist at the residential IoT layer.

Matter therefore becomes another important integration layer rather than a universal replacement for every existing technology.

---

Thread Explained

Thread is much closer to a networking protocol than Matter.

Thread Group describes Thread as an open, IP-based, low-power wireless mesh networking protocol designed for IoT and smart-home environments. It supports IPv6 networking and is intended to provide reliable mesh connectivity for constrained devices.

This makes Thread attractive for devices such as:

• sensors;

• locks;

• thermostats;

• switches;

• small controllers;

• other low-power IoT endpoints.

Thread and Matter work together, but they are not the same thing

A useful way to understand the relationship is:

Thread provides the network. Matter provides the standardized application language.

For example:

Device → Matter → IP → Thread → IEEE 802.15.4 radio

By contrast, another Matter device might use:

Device → Matter → IP → Wi-Fi

The application standard is still Matter.

What is a Thread Border Router?

Thread devices need a path between the Thread mesh and the wider IP network.

That role is performed by a Thread Border Router.

The Border Router routes traffic between Thread and adjacent IP networks such as Ethernet or Wi-Fi.

Importantly, this is not necessarily the same thing as a traditional protocol-conversion gateway.

The Border Router is primarily routing IP traffic between networks rather than translating Matter commands into an entirely different application protocol.

Therefore, when evaluating a control panel, ask:

Does the panel merely control Matter devices, or does it also contain Thread Border Router functionality?

That question can make a major difference to system architecture.

---

KNX Explained

KNX belongs to a different category from most consumer smart-home wireless technologies.

It is a professional home and building automation ecosystem used for functions such as:

• lighting;

• blinds and curtains;

• HVAC;

• room control;

• energy management;

• building automation.

KNX can operate across multiple communication media. KNX Association documentation includes twisted pair, RF, powerline, IP, KNXnet/IP, and newer KNX IoT technologies.

In professional projects, KNX TP remains particularly significant because the building-control bus is physically installed as part of the electrical infrastructure.

What does “KNX control panel” actually mean?

This specification also requires clarification.

A supplier claiming KNX support may mean that the panel:

1. has a native KNX TP interface;

2. communicates with KNX through a KNX IP interface;

3. uses KNXnet/IP tunneling;

4. communicates through a separate KNX gateway;

5. or simply launches software that connects to an external KNX server.

These architectures are not equivalent.

A professional KNX smart control panel specification should therefore describe:

• KNX TP or KNX IP support;

• supported group-address handling;

• KNX datapoint compatibility;

• ETS-related commissioning requirements;

• KNX Secure support where relevant;

• maximum supported objects or datapoints;

• whether a separate KNX IP interface/router is required.

KNX Association describes KNX IP interfaces as devices connecting KNX TP installations to IP networks, while KNX IP routers can additionally route between KNX network sections.

For premium villas and commercial buildings, this level of detail matters much more than simply printing “KNX compatible” on a datasheet.

---

RS485 Explained

RS485 is another technology that is frequently placed in the wrong category.

RS485 is primarily a physical-layer serial communication standard.

It defines electrical communication characteristics for differential serial networks. It does not by itself define what a command such as “set thermostat to 22°C” means.

An application protocol must still operate on top of it.

One common example is:

Modbus RTU over RS485

The Modbus Organization distinguishes clearly between the two: Modbus is an application-layer protocol, while EIA/TIA-485 can provide the underlying physical network.

However, many HVAC manufacturers, hotel systems, curtain controllers, access-control products, and automation devices also use proprietary RS485 communication protocols.

Therefore:

RS485 compatible does not automatically mean Modbus compatible.

When purchasing an RS485 smart control panel, an engineer should ask for:

• application protocol;

• register or command documentation;

• supported baud rates;

• parity and serial configuration;

• supported device addressing;

• isolation design;

• termination requirements;

• maximum supported devices;

• API access to RS485 data.

For OEM and ODM control panels, access to the underlying RS485 API can be as important as the physical port itself.

---

Protocol vs Application Layer vs Transport

This is the technical distinction that prevents most protocol-selection mistakes.

The technologies discussed in smart-home projects do not all perform the same job.

A simplified model looks like this:

Technology	Simplified Role
RS485	Physical electrical interface
Wi-Fi	Wireless network/link technology carrying IP
Bluetooth LE	Wireless radio/connectivity stack
Thread	IPv6-based low-power mesh networking
Matter	IP-based application/interoperability layer
Zigbee	Integrated wireless IoT stack
KNX	Building automation protocol/system operating across multiple media
Modbus	Application protocol often carried over RS485 or TCP/IP

This is why comparisons such as:

“Matter vs Wi-Fi: Which wireless protocol is better?”

are technically misleading.

A Matter device may be a Wi-Fi device.

Likewise:

“RS485 vs Modbus”

is not a correct layer-for-layer comparison because Modbus can operate over RS485.

For product managers evaluating smart home control panel protocols, thinking in layers produces much better hardware decisions.

Ask four separate questions:

1. What radio or physical interface is required?
Wi-Fi, Ethernet, 802.15.4, Bluetooth, KNX TP, RS485?

2. What networking technology is used?
IP, Thread, Zigbee mesh, KNX?

3. What application protocol or device model is required?
Matter, Zigbee device models, KNX datapoints, Modbus, proprietary APIs?

4. What ecosystem must the panel integrate with?
Alexa, Google Home, Apple Home, Tuya, proprietary cloud, GRMS, PMS, BMS, or a local automation server?

Once those four questions are answered separately, protocol selection becomes much clearer.

---

Which Technologies Require a Gateway?

The answer depends on what the panel itself contains.

Technology	Separate Gateway Required?	Important Detail
Wi-Fi	Usually no	Panel joins an existing IP network
Zigbee	Usually yes	Unless Zigbee coordinator is built into the panel
Bluetooth LE	Not always	Phone or panel may communicate directly
Bluetooth Mesh	Depends	IP/cloud integration may require additional gateway functionality
Matter over Wi-Fi	No dedicated radio gateway	Matter controller functionality is still required
Matter over Thread	Thread Border Router required	It may be integrated into the panel or another device
KNX TP	Interface required	Native TP port or KNX IP interface/router
RS485	No if native port exists	Correct application protocol must still be supported

This leads to an important purchasing principle:

Do not ask only whether a control panel “supports” a protocol. Ask how it supports it.

For example, two products may both advertise Matter support.

Panel A may only connect to Matter-over-Wi-Fi products.

Panel B may contain:

• Matter Controller;

• Thread Border Router;

• Wi-Fi;

• Ethernet;

• Zigbee coordinator;

• Bluetooth commissioning.

Those products have very different integration capabilities even though both can display “Matter supported” in a catalog.

---

Local vs Cloud Communication

Another common mistake is assuming that protocol choice automatically determines whether a system is local or cloud-based.

It does not.

A Wi-Fi device can operate entirely on the local LAN or depend heavily on cloud services.

A Zigbee network can continue operating locally while its mobile remote-control service depends on a cloud gateway.

Matter is designed around local IP connectivity, while remote access is typically provided by the wider ecosystem infrastructure.

KNX and RS485 installations are commonly designed around local building control.

Therefore, when evaluating a control panel, ask separately about:

• local automation execution;

• local scene storage;

• offline device control;

• cloud account dependency;

• OTA firmware updates;

• remote access;

• API availability;

• LAN API;

• failure behavior when Internet access is lost.

For hotels, villas and professional building projects, the ability to maintain essential automation locally is usually more important than the number of cloud integrations printed on the product page.

---

Smart Villa Recommendation

Luxury villas often contain the widest combination of smart-home technologies.

A strong architecture is usually:

KNX or another wired system for permanent building infrastructure + Matter/Thread/Zigbee for flexible IoT devices + Ethernet/Wi-Fi for the control interface.

For example:

• KNX TP — lighting, curtains, HVAC and fixed electrical systems;

• Zigbee — sensors and existing smart-home products;

• Matter/Thread — newer interoperable smart-home devices;

• Wi-Fi/Ethernet — control panels, cameras, multimedia and network access;

• RS485 — HVAC equipment, heat pumps, ventilation systems or energy meters.

The control panel becomes the user interface connecting these systems.

For this market, a multi-protocol panel is usually more valuable than a panel optimized around a single consumer ecosystem.

---

Apartment Project Recommendation

Apartment developments normally prioritize:

• installation speed;

• repeatable configuration;

• BOM control;

• cost;

• easy maintenance;

• scalable device deployment.

For mainstream apartments, a practical combination is often:

Wi-Fi + Zigbee + Matter readiness

Zigbee provides a mature ecosystem for switches, sensors, curtains and other automation devices, while Matter provides a path toward broader IP-based interoperability.

Wi-Fi handles the control panel's primary LAN and cloud connectivity.

Thread should be considered when the project roadmap includes Matter-over-Thread products.

RS485 can also be useful for integrating thermostats, fan-coil controllers, meters or building equipment without significantly increasing the wireless device count.

KNX may become more attractive in premium apartments where wired infrastructure and professional commissioning are already part of the project budget.

---

Hotel Recommendation

Hotels have different requirements from consumer smart homes.

Reliability, centralized engineering control and offline operation are normally more important than allowing guests to add random consumer IoT products.

A hotel control architecture may therefore prioritize:

KNX and/or RS485 for room automation, Ethernet/IP for system integration, and Zigbee for selected wireless devices.

Typical integrations include:

• lighting scenes;

• fan-coil units;

• thermostats;

• curtain motors;

• door contacts;

• occupancy sensors;

• DND/MUR functions;

• energy management;

• GRMS integration.

Matter may become useful for specific device categories, but it should not automatically replace the room automation architecture.

For a hotel project, the more important questions are often:

• Can room functions operate without the cloud?

• Can the panel communicate with the GRMS?

• Is an API or SDK available?

• Can room configurations be duplicated efficiently?

• Can device failures be diagnosed remotely?

• How are firmware updates managed across hundreds of rooms?

Protocol support must serve the operational architecture of the hotel, not the other way around.

---

Smart Building Recommendation

For commercial buildings, protocol selection becomes even more architecture-driven.

KNX is highly relevant because it supports professional building automation across multiple media and can use IP infrastructure as part of larger installations.

A smart-building control panel may therefore need:

• KNX;

• Ethernet;

• Wi-Fi;

• RS485;

• Modbus;

• API/SDK integration;

• Zigbee or Thread for wireless endpoints.

In larger BMS environments, protocols such as BACnet and Modbus TCP may also become relevant even though they are outside the core residential protocol comparison in this article.

For this reason, a commercial control panel should increasingly be evaluated as an edge integration terminal, rather than simply as a large touchscreen smart-home gateway.

---

Multi-Protocol Panels

For many modern projects, the best answer to “Which protocol should the panel support?” is not one protocol.

It is a carefully selected combination.

A strong multi-protocol smart home control panel architecture may include:

Ethernet + Wi-Fi + Bluetooth + Zigbee + Matter + Thread + KNX/RS485 integration

However, adding more protocol logos does not automatically create a better product.

Each technology requires:

• compatible hardware;

• antenna design;

• protocol stacks;

• certification;

• firmware maintenance;

• device databases;

• commissioning workflows;

• UI integration;

• debugging tools;

• long-term software support.

Therefore, the quality of integration matters more than the number of protocols advertised.

When evaluating an OEM or ODM control panel, ask the manufacturer to provide a protocol capability matrix showing exactly what is implemented.

For example:

Capability	Questions to Ask
Zigbee	Coordinator or endpoint? Which device types are supported?
Matter	Controller, commissioner, bridge or endpoint?
Thread	Does the panel contain a Thread Border Router?
KNX	Native KNX TP or KNXnet/IP?
RS485	Which application protocols and APIs are supported?
Wi-Fi	Local LAN control, cloud control, or both?
Bluetooth	Commissioning, direct control, Mesh, or audio?
API	REST, MQTT, WebSocket, SDK or proprietary API?
Local automation	Can scenes continue without Internet access?
OTA	How are firmware updates and rollback handled?

This is significantly more useful than a datasheet containing seven protocol logos without explaining the system architecture.

Which Smart Home Control Panel Protocols Should You Choose?

There is no single protocol that is best for every project.

Wi-Fi is excellent for IP connectivity and high-bandwidth devices.

Zigbee remains highly practical for mature, low-power wireless automation networks.

Bluetooth is valuable for commissioning, direct communication and certain mesh applications.

Thread provides low-power IPv6 mesh networking.

Matter creates a standardized application and interoperability layer over IP networks such as Wi-Fi, Ethernet and Thread.

KNX provides a mature professional building automation architecture.

RS485 provides a robust physical communication interface commonly used with Modbus and proprietary building-equipment protocols.

For many future-facing control panels, therefore, the goal should not be to choose Wi-Fi vs Zigbee vs Matter vs KNX as if only one technology can win.

The better approach is to define the project architecture first and then select the protocols required at each layer.

For a consumer apartment, that may mean Wi-Fi + Zigbee + Matter.

For a premium villa, it may mean KNX + Matter + Thread + Zigbee + IP.

For a hotel, it may mean KNX/RS485 + Ethernet + local automation + selected Zigbee devices.

For a commercial building, it may require KNX/IP + RS485/Modbus + enterprise APIs + wireless IoT protocols.

Ultimately, the best smart home control panel is not the panel with the longest protocol list.

It is the panel that connects the right technologies at the right layers while maintaining interoperability, local reliability, scalability, serviceability, and long-term system flexibility.
