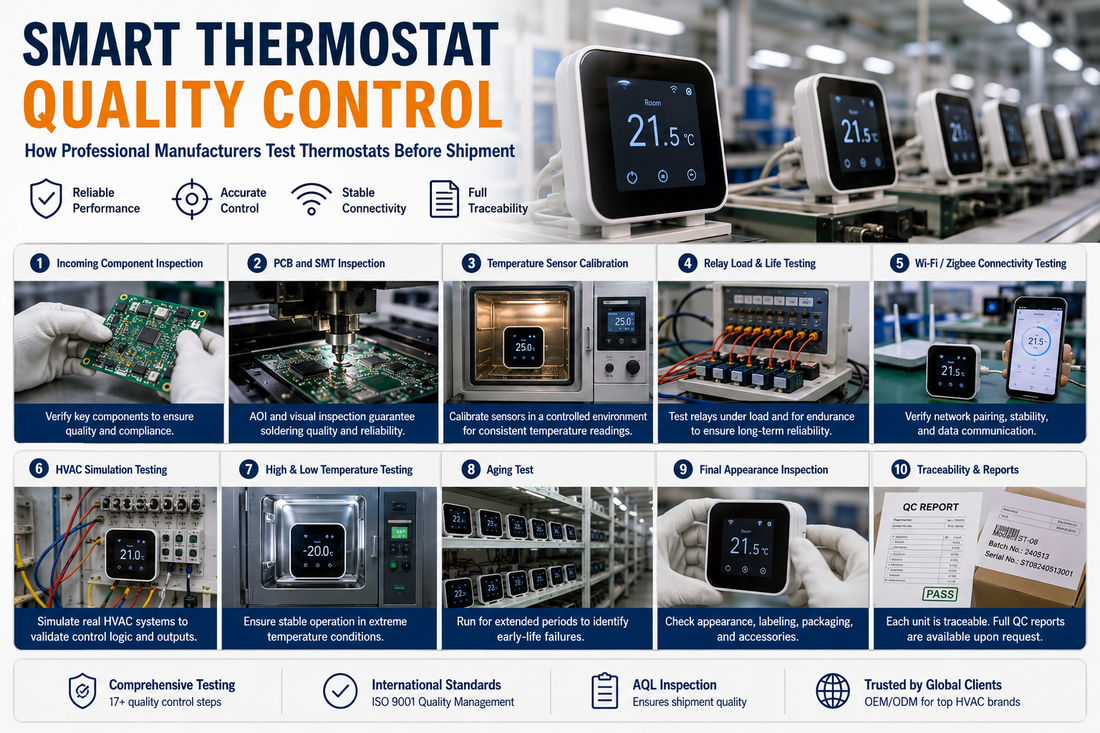

Smart Thermostat Quality Control: How Professional Manufacturers Test Thermostats Before Shipment

For importers, distributors, HVAC brands, and smart home companies, product quality is not simply about whether a thermostat powers on when it leaves the factory.

A smart thermostat combines temperature measurement, electronic control, wireless communication, firmware, relays, touch interfaces, and HVAC logic in one device. A small failure in any of these areas can create a much larger problem after installation.

A temperature sensor that drifts by only a few degrees can cause uncomfortable rooms. A weak relay can fail after repeated heating cycles. Unstable Wi-Fi can generate customer complaints even when the thermostat's core heating control still works. Incorrect firmware logic can be even more serious because the device may appear normal during a basic factory inspection while behaving incorrectly in a real HVAC system.

That is why smart thermostat quality control should be treated as a complete manufacturing process rather than a final inspection step.

Professional thermostat manufacturers build quality control into incoming materials, PCB assembly, sensor calibration, functional testing, aging, firmware validation, final inspection, and shipment release.

This guide explains what buyers should expect from a serious smart thermostat factory before approving mass production.

Why Thermostat Quality Is Different From Ordinary Smart Devices

A smart thermostat is different from many other smart home devices because it directly controls heating and cooling equipment.

A smart sensor may simply report data. A thermostat, however, reads environmental conditions and then makes control decisions.

Depending on the model, it may control:

• Electric floor heating

• Hydronic floor heating

• Gas boilers

• Heat pumps

• Central HVAC systems

• Fan coil units

• Valves and actuators

• Multi-stage heating and cooling

Therefore, thermostat quality must be evaluated at several levels simultaneously.

The device must measure temperature accurately, switch electrical loads reliably, communicate correctly with the mobile application or gateway, interpret HVAC logic correctly, and continue working after thousands of operating cycles.

This is why professional factories rarely rely on a single end-of-line test.

Instead, quality is verified throughout production.

Incoming Component Inspection

Smart thermostat quality control begins before the thermostat is assembled.

Critical incoming components normally include:

• PCBs

• Relays

• Temperature sensors

• Touchscreens

• LCD or TFT displays

• Wi-Fi modules

• Zigbee modules

• MCUs

• Power supply components

• Plastic housings

• Terminals

• Connectors

Incoming quality control, often called IQC, checks whether components match the approved specification and BOM.

For example, relay manufacturers, temperature sensor tolerances, PCB thickness, connector materials, and display batches should not be changed casually during mass production.

For B2B buyers, BOM consistency is especially important.

A thermostat sample may perform well during evaluation, but if critical components are substituted later without approval, the mass-production product may perform differently.

Professional manufacturers therefore maintain approved supplier lists and component specifications.

PCB and SMT Inspection

The PCB is the electronic foundation of the thermostat.

During SMT production, factories should monitor solder paste printing, component placement, reflow soldering, polarity, and solder joint quality.

Inspection may include:

• AOI inspection

• Visual inspection

• Solder joint inspection

• Component orientation checks

• Missing component detection

• Short-circuit detection

Critical areas deserve additional attention, particularly relay circuits, communication modules, power supply sections, and temperature sensing circuits.

Poor soldering may not always cause an immediate failure. In some cases, the thermostat can pass initial testing but fail later after thermal expansion, vibration, or repeated use.

For this reason, PCB inspection should take place before final assembly.

Temperature Sensor Calibration

Temperature measurement is one of the most important functions of any thermostat.

Manufacturers therefore need a controlled calibration process.

The thermostat's temperature reading should be compared against a known reference instrument in a stable environment.

Depending on the design, factories may calibrate:

• Internal air temperature sensors

• External floor sensors

• Remote probes

• NTC sensors

• Digital temperature sensors

Calibration values may be stored in firmware or production parameters.

The key objective is consistency.

If one unit reads 21.0°C while another unit from the same production batch reads 23.0°C under identical conditions, distributors are likely to face installation complaints.

For OEM buyers, it is useful to ask how calibration data is recorded and whether calibration equipment is regularly verified.

Temperature Accuracy Testing

Calibration and accuracy testing are related, but they are not exactly the same.

Calibration adjusts or compensates for sensor deviation. Accuracy testing verifies how the finished thermostat performs.

Testing should ideally cover more than one temperature point.

For example, manufacturers may verify performance across low, normal, and elevated room-temperature conditions.

The target accuracy depends on the thermostat design and application.

Residential room thermostats, electric floor heating thermostats, and commercial HVAC controllers may have different requirements.

Buyers should therefore specify acceptable temperature accuracy in the product specification rather than relying only on a general statement such as "high-precision sensor."

Relay Load Testing

The relay is one of the most critical components inside many thermostats.

It switches heating equipment, valves, boilers, or other electrical loads.

During relay load testing, the manufacturer verifies that the thermostat can safely and reliably switch the specified electrical load.

Testing may include:

• Resistive load

• Inductive load

• Current measurement

• Contact temperature

• Switching behavior

• Abnormal noise or arcing

This test is particularly important for electric floor heating thermostats because the switching current can be significantly higher than in low-voltage HVAC controllers.

The rated relay value printed on a datasheet should not be the only evidence buyers consider.

The entire thermostat circuit, terminal design, PCB copper thickness, heat dissipation, and enclosure structure also affect real-world load performance.

Relay Life Testing

A thermostat relay may switch on and off thousands of times during its service life.

Therefore, manufacturers should also perform endurance testing.

Relay life testing repeatedly cycles the relay under controlled load conditions.

The objective is to identify problems such as:

• Contact degradation

• Relay sticking

• Welding

• Excessive heating

• Electrical noise

• Mechanical failure

A thermostat that works for ten cycles is not necessarily a reliable thermostat.

For long-term projects, relay durability is especially important because field replacement costs are usually much higher than the cost difference between a high-quality and low-quality component.

Touchscreen Testing

For thermostats with touchscreens or capacitive touch buttons, the user interface should be tested separately.

Factories should verify:

• Touch sensitivity

• Dead zones

• Incorrect touch detection

• Gesture response

• Backlight behavior

• Display brightness

• Screen alignment

Because thermostats are often mounted on walls for many years, touchscreen consistency is important.

A thermostat with attractive industrial design but unreliable touch response can quickly generate negative customer reviews.

Some manufacturers also perform repeated touch testing or automated touch simulations for higher-volume projects.

Wi-Fi and Zigbee Connectivity Testing

Connectivity is now a major part of smart thermostat quality control.

For Wi-Fi thermostats, factories should verify that the thermostat can connect to the required wireless network and communicate with the application or cloud platform.

For Zigbee thermostats, testing normally includes device pairing, gateway communication, status reporting, and command response.

Typical checks include:

• Pairing success

• Network reconnection

• Signal stability

• Device status synchronization

• Remote temperature setting

• Schedule synchronization

• Offline recovery

Manufacturers should not simply confirm that the wireless icon appears on the display.

Real communication between the thermostat and the ecosystem should be tested.

For OEM products, the manufacturer should also verify connectivity using the actual branded app or platform configuration intended for production.

HVAC Simulation Testing

A professional thermostat factory should test more than the thermostat alone.

It should simulate the HVAC equipment that the thermostat is expected to control.

Test equipment may simulate:

• Heating signals

• Cooling signals

• Fan speeds

• Valve outputs

• Boiler contacts

• Heat pump modes

• External sensors

For example, a fan coil thermostat may need to control several fan speeds together with a valve output.

A boiler thermostat may require dry-contact switching rather than direct load switching.

Heat pump thermostats may require significantly more complex control logic.

HVAC simulation helps identify wiring errors and logic problems before products reach installation sites.

High and Low Temperature Testing

Thermostats may be transported, stored, or operated under demanding environmental conditions.

Environmental testing helps verify that components and materials remain stable.

High- and low-temperature testing can reveal problems involving:

• Display performance

• Sensor drift

• Plastic deformation

• Power supply stability

• Touchscreen response

• Relay behavior

• Wireless communication

Temperature cycling can be especially useful because repeated expansion and contraction may expose weak solder joints or mechanical assembly problems.

Aging Test

An aging test keeps thermostats powered for an extended period before shipment.

During this process, the device may repeatedly switch functions, change display modes, communicate with networks, or activate relays.

The purpose is to identify early-life failures.

Electronic components sometimes fail during the first hours of operation because of manufacturing defects that were not visible during assembly.

Aging testing helps remove these weak units before shipment.

For large projects, buyers should ask the manufacturer about aging duration, test conditions, and whether aging is performed on every unit or only selected samples.

Power Cycling Test

Smart thermostats are frequently exposed to power interruptions.

A building may experience a temporary outage, an installer may switch the breaker on and off, or a user may reset the device.

The thermostat should recover correctly after power returns.

Power cycling tests verify:

• Automatic restart

• Memory retention

• Time settings

• Schedule retention

• Network reconnection

• Relay state behavior

• Firmware stability

This test is particularly important for connected thermostats because both the local control logic and wireless connection must recover correctly.

Firmware Testing

Firmware quality is becoming just as important as hardware quality.

Professional manufacturers should maintain controlled firmware versions and documented validation procedures.

Testing should cover functions such as:

• Heating and cooling logic

• Scheduling

• Sensor calibration

• Hysteresis

• Child lock

• Anti-freeze function

• Factory reset

• App commands

• OTA updates

• Error handling

Regression testing is also important.

When one firmware feature is changed, previously working functions should not accidentally be broken.

OEM buyers should therefore ask manufacturers how firmware versions are controlled and whether production units can be traced to a specific firmware release.

Final Appearance Inspection

After functional testing, each thermostat should undergo final visual inspection.

Inspectors normally check:

• Scratches

• Color differences

• Display contamination

• Screen gaps

• Housing gaps

• Logo position

• Printing quality

• Button alignment

• Terminal condition

• Label accuracy

For private-label projects, visual inspection becomes particularly important because branding mistakes can make an entire shipment unusable even if the electronics work perfectly.

Packaging, model labels, barcodes, manuals, and accessories should also match the approved production specification.

Traceability

Traceability allows manufacturers to identify where a problem came from.

Depending on the quality system, traceability information may include:

• Production date

• Batch number

• PCB batch

• Firmware version

• Component supplier

• Production line

• Test record

• Inspector

• Serial number

This becomes extremely valuable when a distributor reports a field issue.

Without traceability, a factory may need to investigate thousands of units.

With a structured traceability system, the manufacturer can identify the affected batch and determine whether the issue is related to components, firmware, production, or installation.

AQL Inspection

AQL inspection is commonly used before shipment for mass-produced electronic products.

Rather than inspecting every cosmetic characteristic of every unit, inspectors select samples from the production lot according to the agreed inspection plan.

Defects are normally classified as:

• Critical

• Major

• Minor

For example, exposed electrical hazards or dangerous wiring problems may be classified as critical defects.

A thermostat that cannot control heating correctly may be considered a major defect.

A small cosmetic mark may be classified as minor.

However, AQL inspection should be treated as the final verification layer, not as a replacement for production quality control.

A factory cannot compensate for weak manufacturing processes simply by inspecting finished cartons.

What QC Reports Should Buyers Request?

Professional importers should request objective quality evidence rather than accepting general statements such as "100% tested."

Depending on the project, useful documents may include:

• Incoming inspection records

• PCB inspection records

• Temperature calibration reports

• Temperature accuracy test reports

• Relay load test records

• Relay endurance test reports

• Aging test records

• Functional test checklists

• Wi-Fi or Zigbee test records

• HVAC simulation test records

• Firmware version records

• Final inspection reports

• AQL inspection reports

• Serial number or batch traceability records

For larger OEM or private-label projects, buyers may also request a control plan describing which characteristics are inspected at each production stage.

A strong manufacturer should be able to explain not only what is tested, but also when it is tested, how it is tested, what limits are acceptable, and how failed units are handled.

Final Thoughts

Reliable smart thermostats are created through process control, not through final inspection alone.

A professional smart thermostat quality control system should begin with incoming components and continue through PCB production, sensor calibration, relay testing, touchscreen verification, connectivity testing, HVAC simulation, environmental testing, aging, firmware validation, final inspection, and shipment release.

For importers and distributors, understanding these processes makes supplier evaluation much easier.

Instead of asking only whether a factory has a QC department, ask more specific questions:

How is temperature accuracy verified? How are relays tested under load? Is every thermostat functionally tested? Can the factory simulate the target HVAC system? How is firmware controlled? Can individual production batches be traced?

The answers to these questions reveal much more about manufacturing capability than a factory presentation or product brochure.

Ultimately, a reliable thermostat supplier should be able to demonstrate that quality is measurable, documented, repeatable, and traceable.

That is the foundation of a smart thermostat product that can be successfully sold under your brand for years rather than simply shipped from the factory once.
