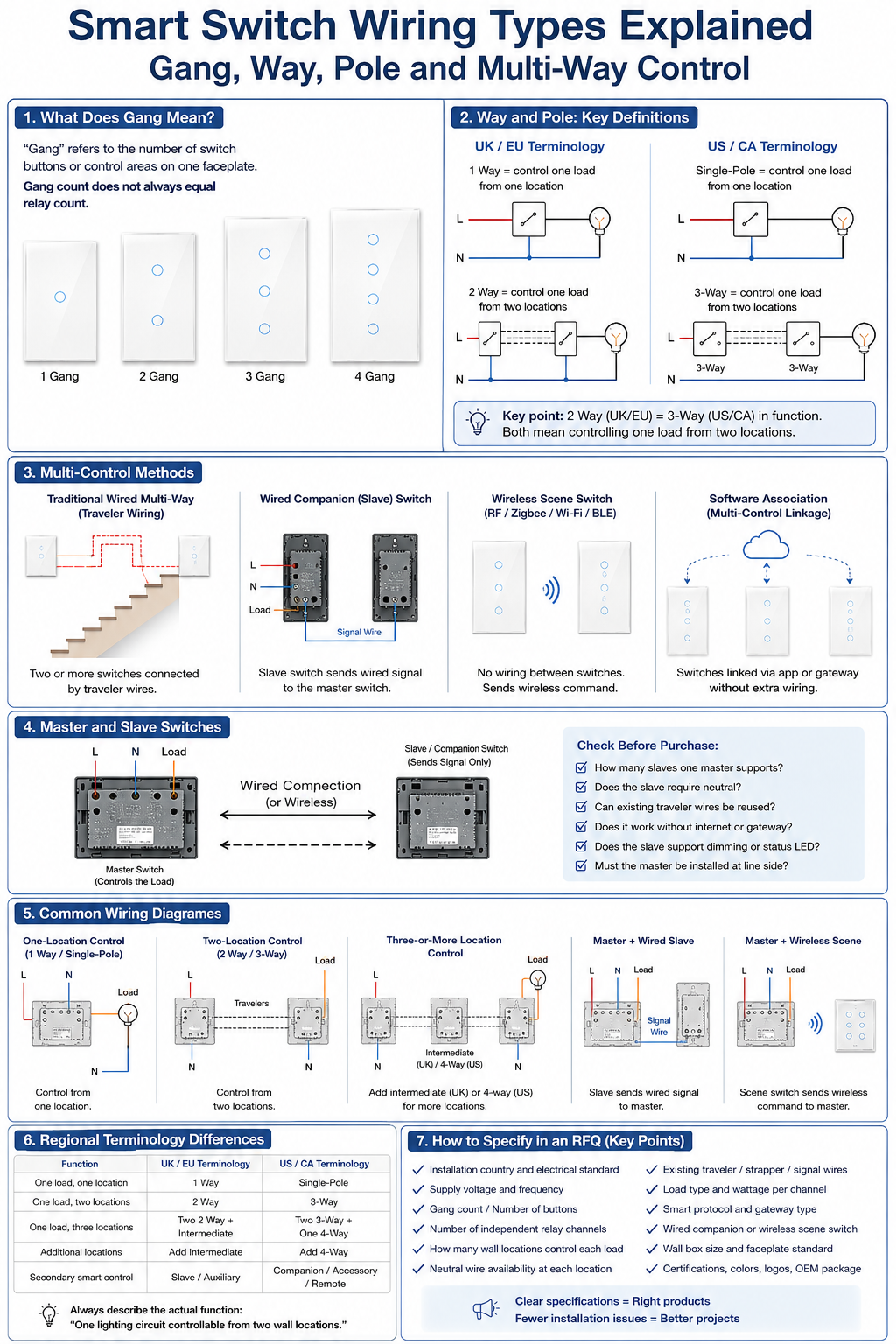

Smart Switch Wiring Types Explained: Gang, Way, Pole and Multi-Way Control

Smart switch specifications can become confusing when terms such as “2 gang,” “2 way,” “single-pole,” “three-way,” “master,” and “slave” appear in the same quotation. These terms describe different product characteristics, and their meanings also vary between regions. For installers, distributors, and electrical contractors, one incorrect assumption can result in the wrong SKU, incompatible wiring, or expensive site modifications.

This guide explains the main smart switch wiring types and how to specify them clearly in an RFQ. It also clarifies what a 1 gang 2 way smart switch normally means—and why buyers should still confirm the terminals, load channels, neutral-wire requirement, and multi-location control method.

What Does Gang Mean?

“Gang” usually refers to the number of switch positions or control areas grouped on one faceplate. A 1-gang switch normally has one control key, while a 2-gang switch has two. However, gang count does not always equal relay count.

A conventional 3-gang wall switch commonly controls three circuits. A smart panel, however, may combine relay buttons and wireless scene keys. For example, a 4-gang panel could contain four relay outputs, three relay outputs plus one scene key, or four scene keys with no direct load connection.

Therefore, buyers should not specify only “3 gang.” They should state how many independent loads must be switched and whether every key needs a physical relay.

1 Gang, 2 Gang, 3 Gang and 4 Gang

Type	Typical application	Key question
1 gang	One light or lighting zone	Does it control a load or only a scene?
2 gang	Main light plus downlights	Are both channels independently rated?
3 gang	Three room lighting circuits	Is the wall box deep enough?
4 gang	Multiple zones or mixed load/scene control	Are all four keys relay channels?

“Gang” may also describe the wall box itself. A two-gang wall box can mean space for two separate devices, while one glass smart switch may place several touch keys on a single-device footprint. As a result, distributors should confirm both faceplate dimensions and back-box compatibility.

This distinction is particularly important for cross-border projects. A multi-button glass switch designed for a European round wall box may not fit a UK-standard rectangular box, even when both products are described as “2 gang.”

What Does 1 Way Mean?

In the UK, Europe, Asia, the Middle East, and many Commonwealth markets, a 1-way switch controls one load from one physical location. The incoming live conductor enters the switch, and a switched-live conductor leaves for the lamp. Neutral normally goes directly to the load, although a neutral-wire smart switch also needs neutral in the switch box.

In North American terminology, the closest equivalent is a single-pole switch. Leviton defines a single-pole switch as a device that controls a load from one location.

Thus, “1 gang 1 way” usually means one key, one load circuit, and control from one wall location.

However, “1 way” does not indicate the communication protocol. A 1-way switch may use Wi-Fi, Zigbee, Bluetooth, Matter over Wi-Fi or Thread, or another communication system. It simply describes the physical switching arrangement.

2 Way and 3 Way Switching

A 2-way circuit allows the same light to be controlled from two locations, such as the top and bottom of a staircase. In common UK-style wiring, two 2-way switches are connected by traveler or strapper conductors.

In the United States and Canada, the same function is called 3-way switching. It still means control from two locations, not three. Two 3-way switches are used in the circuit.

This difference causes frequent RFQ errors. A European buyer requesting a “2-way smart switch” and a US buyer requesting a “3-way smart switch” may want the same result: one light controlled from two wall positions.

For three or more control locations, UK-style installations place one or more intermediate switches between two 2-way switches. North American installations place one or more 4-way switches between two 3-way switches. Leviton describes three-location control as two 3-way switches plus one 4-way switch.

Therefore, the phrase “3-way switching” must always be interpreted in its regional context. It may mean a North American two-location circuit, while some buyers use it informally to describe control from three wall locations.

Single-Pole vs Three-Way Terminology

“Pole” and “way” are not interchangeable.

A pole describes how many electrically separate conductors a switch controls. A single-pole device switches one circuit conductor. A double-pole device switches two conductors together and may be used where simultaneous isolation is required.

By contrast, “3-way” is a North American product term for the switching function used in a two-location circuit. Electrically, the switch redirects one common terminal between two traveler terminals.

For practical product selection:

• Single-pole: one load controlled from one location.

• 3-way, North America: one load controlled from two locations.

• 4-way, North America: added for control from three or more locations.

• 1-way, UK-style terminology: one load controlled from one location.

• 2-way, UK-style terminology: one load controlled from two locations.

• Intermediate switch: added between two 2-way switches for three or more locations.

The safest RFQ wording is the actual number of control locations. For example, “one lighting circuit controlled from two wall positions” is clearer than simply writing “2 way” or “3 way.”

Multi-Control Association Through Software

Smart switches can create multi-location control without copying a traditional traveler-wire circuit. One device physically switches the load, while another smart switch or scene key sends a digital command through Zigbee, Wi-Fi, Bluetooth Mesh, proprietary RF, or a hub-based platform.

This feature may be called multi-control association, device association, binding, linkage, or automation. The secondary switch often carries no load current. Instead, pressing it sends a command to the load-controlling switch.

Software association is valuable in retrofit projects because it reduces rewiring and allows flexible button assignments. Schneider Electric, for example, documents wireless 1-gang and 2-gang switches that control groups of Zigbee devices within the same network.

Multi-control association can also provide more flexibility than conventional wiring. One key may control a single light, several lighting circuits, a curtain motor, or a complete scene such as “All Off.”

Nevertheless, buyers should confirm whether the association works locally or depends on the cloud. In hotels, apartments, villas, and larger projects, local control is generally preferred so wall switches remain responsive during an internet outage.

Wired Multi-Way vs Wireless Scene Switch

A wired multi-way system uses physical conductors between the control points. Depending on the model, these may be traditional travelers, a dedicated signal wire, a momentary-input cable, or a proprietary companion-switch connection.

A wireless scene switch has no load output at the secondary location. Instead, it sends a command to the master device. This is useful when adding a new switch position would otherwise require opening walls and pulling new wires. Lutron documents wireless remotes as a way to add 3-way or multi-location control without installing new wall wiring.

Wired control offers several advantages. It avoids battery replacement, reduces radio-range concerns, and may provide predictable operation independently of a wireless network.

Wireless control, however, is faster to retrofit and easier to reconfigure. A scene switch can often be mounted where no wall box or traveler cable exists. It can also be reassigned later without changing the building wiring.

The correct choice depends on local electrical regulations, wall construction, maintenance policy, network design, budget, and the required behavior during gateway or internet failure.

Master and Slave Switches

In a master-and-slave arrangement, the master contains the main relay or dimming electronics and directly controls the load. The slave—also called an auxiliary, accessory, companion, or secondary switch—sends an instruction to the master.

The slave may be wired or wireless. Some wired companions need a dedicated communication conductor, while others reuse part of the existing multi-way wiring. A wireless slave may be battery-powered or mains-powered but normally has no relay output.

Compatibility is model-specific. A standard mechanical switch cannot always replace a branded companion, and companions from different product series may not work together. Lutron, for example, specifies companion devices that require compatible main switches.

Buyers should therefore confirm:

• How many companion switches one master supports.

• Whether the companion requires neutral.

• Whether existing traveler wires can be reused.

• Whether the companion works during a gateway or internet outage.

• Whether the companion provides status indication or dimming control.

• Whether the master must be installed at the line side or load side.

Common Wiring Diagrams

The following simplified diagrams show the functional relationship only. Terminal names and conductor colors vary by product and country.

One-Location Control

Line → Smart switch relay → Load
Neutral → Load and smart switch when required

The smart switch directly opens or closes the load circuit. This is the most common arrangement for a 1-gang 1-way switch.

Traditional Two-Location Control

Line → 2-way/3-way switch ⇄ travelers ⇄ 2-way/3-way switch → Load

Two physical switches are connected through traveler conductors. Either switch can change the state of the light.

Three-or-More-Location Control

Line → end switch ⇄ intermediate/4-way switch(es) ⇄ end switch → Load

The two end devices are 2-way switches in UK-style terminology or 3-way switches in North American terminology. Intermediate or 4-way devices are added between them.

Smart Master with Wired Companion

Line/Neutral/Load → Master smart switch
Master signal terminal ↔ Wired companion

Only the master directly switches the load. The companion sends a wired command to it.

Smart Master with Wireless Scene Switch

Wireless scene key → local radio or network command → Master switch

The secondary control point communicates wirelessly and may not require a connection to the lighting circuit.

Contractors should always follow the exact wiring diagram supplied for the selected model. Some smart switches accept standard multi-way devices, while others require dedicated accessories. Certain systems also permit only one smart master in the circuit.

Regional Terminology Differences

Required function	UK/Europe-style term	US/Canada term
One load, one location	1-way	Single-pole
One load, two locations	2-way	3-way
One load, three locations	Two 2-way switches plus intermediate	Two 3-way switches plus one 4-way
Additional control locations	Add intermediate switches	Add 4-way switches
Secondary smart control	Slave or auxiliary	Companion, accessory, or remote

Terminology also varies by brand. “Two-way” may sometimes refer to two-way data communication or device status feedback, which is completely different from two-location switching.

Likewise, “multi-way” may describe conventional traveler wiring, proprietary companion wiring, or software-linked scene control.

Therefore, clear functional wording is better than regional shorthand:

One lighting circuit must be controllable from two wall locations.

This sentence is much less likely to be misunderstood than “one 3-way switch” or “one 2-way switch.”

How to Specify Wiring in an RFQ

Instead of writing only “Need 1 gang 2 way smart switch,” use a complete specification:

1-gang smart wall switch for one lighting load, controllable from two wall locations. Main switch to carry the load; second location may use a wired companion. Neutral is available in both wall boxes. Input: 220–240 V AC, 50 Hz. LED load: 5–200 W. Zigbee 3.0 with local gateway control. UK-size wall box and white glass panel required.

A professional RFQ should include the following information:

1. Installation country and applicable electrical standard.

2. Supply voltage and frequency.

3. Number of gangs or buttons.

4. Number of independent relay channels.

5. Number of wall locations controlling each load.

6. Neutral-wire availability at each location.

7. Existing traveler, strapper, or signal wires.

8. Load type and wattage per channel.

9. Required smart-home protocol and gateway.

10. Wired companion or wireless scene-switch preference.

11. Wall-box dimensions and faceplate standard.

12. Required certifications, colors, branding, and OEM packaging.

It is also useful to ask the manufacturer whether “2-way” support means conventional traveler wiring, a proprietary companion switch, or software association. These solutions may produce a similar user experience, but their wiring requirements and project costs are very different.

Final Selection Advice

The central rule is simple: gang describes how many controls are grouped together; way or multi-location terminology describes where the same load can be controlled; pole describes the electrical switching function; and smart association describes how devices communicate.

A correctly specified 1 gang 2 way smart switch is not merely a one-button switch. It is a one-load product expected to support control from two locations, but that support may use traveler wires, a dedicated companion, or wireless software association.

By stating the number of loads, control points, wiring conditions, and preferred control method, installers and buyers can avoid incompatible samples, reduce installation changes, and select smart switch products that match the real electrical conditions of their market.
