Smart Switch Load Compatibility: LED Lights, Dimmers, Fans and Motors

Choosing a smart switch is not simply a matter of matching the switch’s maximum wattage with the wattage printed on a lamp or appliance. In real projects, smart switch load compatibility depends on several electrical characteristics, including load type, operating current, startup current, power factor, minimum load, dimming method, switching frequency, ambient temperature and installation conditions.

A smart switch rated at 10 A does not necessarily support every 10 A load. Ten amps of resistive heating, ten amps of LED lighting and ten amps of motor load place very different stresses on the switching components. LED drivers may produce a brief but extremely high inrush current. Motors require additional current when starting and generate electrical stress when switched off. Dimmers must also match the control method used by the lamp or driver.

For product managers, engineers, distributors and installers, the correct question is therefore not:

“How many watts can this smart switch support?”

A better question is:

“What type of load will be connected, and under what operating conditions?”

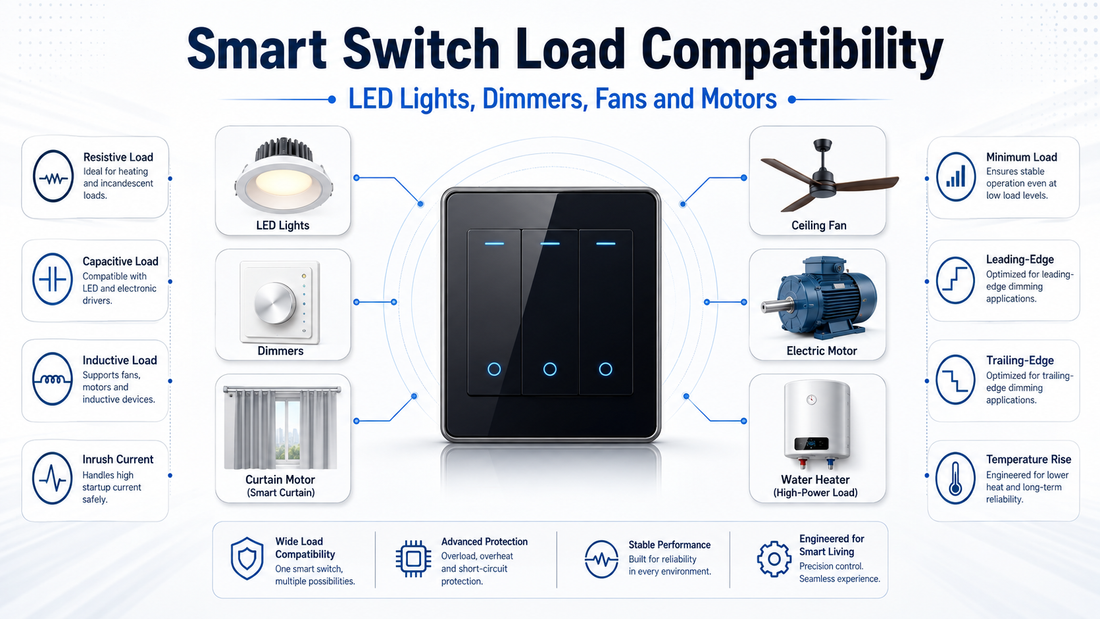

This guide explains how to evaluate smart switches for LED lights, dimmable lighting, ceiling fans, curtain motors, pumps, water heaters and other electrical loads.

Why Smart Switch Load Compatibility Matters

A load mismatch may not cause an immediate failure. In many cases, the switch initially appears to work normally. However, repeated switching can gradually damage relay contacts, semiconductor components or terminal connections.

Common symptoms of poor load compatibility include:

• LED lamps flickering when switched off

• Lights flashing during startup

• Dimmers buzzing at low brightness

• Inconsistent dimming ranges

• Relay contacts sticking or welding

• Smart switches becoming unusually warm

• Motors failing to start reliably

• Curtain motors receiving conflicting direction commands

• Circuit breakers tripping when multiple LED drivers start together

• Shortened electrical life despite operation below the advertised wattage

These problems occur because the steady-state load is only one part of the design. Relay manufacturers distinguish between resistive, inductive, capacitive, lamp and motor loads because each load produces a different current waveform and a different level of contact stress. Omron, for example, notes that motor starting current may be approximately five to ten times the steady-state value, while capacitive loads can produce even higher current ratios for a short duration.

As a result, a reliable smart switch specification should provide more than one universal current rating. It should identify the supported load categories and, where possible, list separate limits for LED lighting, resistive appliances, motors and dimmable loads.

Resistive, Capacitive and Inductive Loads

Electrical loads are commonly grouped into resistive, capacitive and inductive categories. Although modern electronic products may combine several characteristics, these categories remain useful when selecting a smart switch.

Load type	Common examples	Main switching concern
Resistive	Heating elements, conventional electric heaters, incandescent lamps	Continuous current and temperature rise
Capacitive or electronic	LED drivers, power supplies, electronic transformers	High startup inrush current
Inductive	Motors, fans, pumps, transformers, solenoids	Starting current and voltage generated during switching
Mixed load	Modern appliances containing heaters, motors and electronic control boards	Multiple load behaviours within one product

Resistive Loads

A resistive load converts electrical energy mainly into heat or light. Current rises quickly to its normal operating level and generally remains relatively stable.

Examples include:

• Electric heating elements

• Incandescent lamps

• Some water heaters

• Underfloor heating systems

• Simple resistive warming equipment

Resistive loads are usually the easiest loads for a mechanical relay to switch. Consequently, the largest current number printed on a smart switch is often its resistive-load rating.

However, this number should not automatically be applied to LEDs, fans or motors. A relay that can switch 16 A of resistive heating may have a much lower approved motor rating or LED rating.

Capacitive and Electronic Loads

Modern LED lamps, LED drivers and electronic power supplies normally contain capacitors on their input side. When power is first applied, these capacitors charge rapidly. From the smart switch’s perspective, this can create a capacitive inrush current.

The operating current after startup may be small, but the initial current pulse can be many times higher. Therefore, an LED circuit drawing less than one amp during normal operation may still place substantial stress on relay contacts when it is switched on.

Inductive Loads

Inductive loads include motors, electromagnetic coils and many transformers. Their current does not behave like that of a simple heater.

Typical inductive loads include:

• Ceiling fans

• Exhaust fans

• Water pumps

• Curtain motors

• Motorized blinds

• Solenoid valves

• Contactors

• Magnetic transformers

Motors require additional current to begin rotating. They may also create a voltage transient when the electrical field collapses during switch-off. Consequently, motor compatibility should be confirmed using a motor-specific rating rather than only a general current rating.

Engineering rule: Never assume that the resistive rating, LED rating and motor rating of a smart switch are interchangeable.

LED Wattage vs Rated Current

LED wattage is one of the most misunderstood areas of smart switch selection.

For a purely resistive load, current can be estimated using:

Current = Power ÷ Voltage

For example, a 100 W resistive load would theoretically draw approximately:

• 0.43 A at 230 V

• 0.83 A at 120 V

An LED load is more complex because its driver may have a power factor below 1. For mains input power, a more useful simplified estimate is:

Input current ≈ Real input power ÷ (Supply voltage × Power factor)

Therefore, a 100 W LED installation with a power factor of 0.9 would draw approximately:

• 0.48 A at 230 V

• 0.93 A at 120 V

If the wattage refers to the driver’s output rather than its mains input, driver efficiency must also be considered.

Even this improved calculation only estimates the normal operating current. It does not describe the startup inrush current, pulse duration or the number of drivers switching simultaneously.

For this reason, “600 W LED” and “10 A maximum” should not be treated as equivalent specifications. A professional smart switch manufacturer should determine the LED rating through component selection and switching tests, rather than calculating it only from the relay’s resistive rating.

Why LED Drivers Cause Inrush Current

An LED lamp cannot normally operate directly from mains electricity. It uses an electronic driver to regulate the voltage and current supplied to the LED module.

Most LED drivers contain input capacitors. When the driver is initially connected to the AC supply, the capacitors are discharged and begin charging immediately. This produces a short current pulse known as inrush current.

Signify describes LED-driver inrush as a brief high input current that flows during startup to charge the input-side capacitors. Its amplitude can be substantially greater than the normal operating current.

The pulse is usually very short, but relay contacts experience it every time the light is turned on. When many lamps are connected to one circuit, their inrush currents may occur at almost the same moment.

A useful real-world example can be found in a Mean Well test report for a 25 W LED driver. The report lists a typical cold-start inrush current of 30 A at 230 VAC, with a pulse width measured in microseconds. This does not mean that the driver continuously consumes 30 A. It demonstrates why a low-wattage LED product can still create a high instantaneous switching load.

Several factors affect LED inrush:

• Driver circuit design

• Input capacitor size

• Supply voltage

• Point on the AC waveform at which switching occurs

• Temperature of the driver

• Time since the previous switch-off

• Number of drivers connected in parallel

• Cable and source impedance

This explains why two LED lamps with the same wattage may behave differently when connected to the same smart switch.

How to Evaluate an LED Load

For a commercial project, request the following information:

1. Total number of lamps or drivers per channel

2. Input wattage of each driver

3. Rated input current

4. Power factor

5. Inrush peak current

6. Inrush pulse duration

7. Recommended maximum number of drivers per circuit

8. Whether the driver is dimmable

9. Approved dimming method

10. Lamp or driver model number

When inrush data is unavailable, sample testing with the actual lamp model is safer than relying on wattage alone.

Minimum Load and LED Flickering

Maximum load is only one side of compatibility. Smart switches and dimmers may also have a minimum load requirement.

This is particularly important for two-wire or no-neutral smart switches. A no-neutral switch must keep its internal electronics powered even when the light is off. Depending on the circuit design, a small current may continue to pass through the lighting circuit.

With incandescent lamps, this small current is normally too low to create visible light. With efficient LED drivers, however, it may slowly charge the driver’s internal capacitors. Once the stored energy reaches a certain level, the lamp may flash briefly. The cycle then repeats.

Possible symptoms include:

• Periodic flashing while the switch is off

• A faint glow from the lamp

• Unstable low-level dimming

• The smart switch restarting

• Loss of wireless connection

• Buzzing from the lamp or driver

Minimum load requirements vary considerably. Some no-neutral devices are designed to operate with very low LED loads, while others require a manufacturer-approved bypass component. Shelly, for example, specifies bypass use for certain no-neutral dimmer installations below a defined load level and notes that it can help when a lamp remains illuminated or unstable while switched off.

A bypass is not a universal repair for every flickering problem. It must be approved for the specific switch and connected according to the manufacturer’s instructions. Installers should not add random capacitors or resistors because component value, insulation rating, heat generation and failure behaviour must all be considered.

Neutral-wire smart switches generally have more freedom to power their electronics independently of the load. Nevertheless, LED compatibility still depends on relay inrush capability, driver quality and dimmer design.

On-Off Smart Switch vs Smart Dimmer Switch

An on-off smart switch and a smart dimmer perform different electrical functions.

On-Off Smart Switch

A standard on-off smart switch opens or closes the circuit. It is suitable for loads designed to operate at full supply voltage.

Typical applications include:

• Non-dimmable LED lamps

• Standard ceiling lights

• Exhaust fans, when motor-rated

• Contactors

• Some fixed-speed pumps

• Resistive heaters within the approved rating

An on-off switch does not modify the voltage waveform to control brightness. Therefore, it should not be expected to dim a lamp.

Smart Dimmer Switch

A smart dimmer electronically modifies the power delivered to the lamp. The lamp or driver must be explicitly marked as dimmable, and the dimming technology must be compatible with the dimmer.

A non-dimmable LED driver connected to a phase-cut dimmer may:

• Flicker

• Buzz

• Switch off before reaching the minimum level

• Fail to start at low settings

• Produce uneven brightness

• Overheat or experience reduced service life

Likewise, a dimmable lamp is not automatically compatible with every dimmer. Compatibility depends on the interaction between the dimmer’s switching method and the driver’s input circuit.

Leviton identifies lamp compatibility, wiring, load type and configuration as common causes of LED flicker. It also recommends adjusting the minimum dim level when the dimmer provides that function.

For large projects, the safest process is to test the exact combination of dimmer, driver and lamp before approving the bill of materials.

Leading-Edge and Trailing-Edge Dimming

Phase-cut dimmers control brightness by removing part of each AC half-cycle. The two common methods are leading-edge and trailing-edge dimming.

Leading-Edge Dimming

Leading-edge dimming is also called forward-phase dimming. The dimmer delays the beginning of each half-cycle and then allows current to flow for the remainder of the cycle.

Leading-edge dimmers commonly use TRIAC-based circuits. They have traditionally been associated with:

• Incandescent lamps

• Halogen lamps

• Magnetic low-voltage transformers

• Certain dimmable LED drivers

This method is robust and widely used, but it may produce more audible noise or less stable low-level performance with some electronic LED drivers.

Trailing-Edge Dimming

Trailing-edge dimming is also known as reverse-phase dimming. Current begins near the start of the half-cycle and is switched off before the cycle ends.

Trailing-edge dimmers commonly use MOSFET or IGBT switching components. They are frequently used with:

• Electronic low-voltage transformers

• Many modern dimmable LED drivers

• Low-wattage lighting circuits

• Applications requiring smoother low-level control

Lutron’s technical guidance distinguishes forward-phase control for magnetic low-voltage loads and reverse-phase control for electronic low-voltage systems. Its compatibility guidance also recommends matching the LED lamp, transformer and dimmer to the appropriate phase-control method.

However, trailing-edge should not be described as universally superior. Some LED drivers are designed only for leading-edge operation, while others support both methods.

Before ordering a smart dimmer, confirm:

• Whether the lamp is dimmable

• Whether it supports leading-edge, trailing-edge or both

• Minimum and maximum dimmer load

• Maximum number of lamps per channel

• Lowest stable brightness level

• Whether neutral is required

• Whether the dimmer includes minimum-level calibration

• Whether the dimmer has overtemperature protection

• Whether the exact lamp model has been tested

Fan and Motor Load Requirements

A fan is not simply a lamp with a different wattage. Its motor creates starting current and inductive switching stress.

Omron states that motor inrush current may be approximately five to ten times the rated operating current. The duration of the motor-starting current may also be longer than the inrush pulse of a typical lighting load.

For this reason, a smart switch intended for fans should have a clearly stated motor-load rating. Depending on the market, this may be expressed in:

• Amps

• Watts

• Horsepower

• Motor full-load current

• A defined motor-utilization category

Fixed-Speed Fan Control

A fixed-speed fan may be controlled by a motor-rated on-off relay if the starting current, running current and switching frequency are within the approved limits.

The following information should be checked:

• AC or DC motor

• Rated voltage and frequency

• Running current

• Starting current

• Motor power

• Internal capacitor configuration

• Required number of speeds

• Whether the motor contains electronic control circuitry

Fan Speed Control

A lighting dimmer should not automatically be used as a fan-speed controller. Lighting dimmers and fan controllers may use different control methods.

A proper fan controller must be designed for the motor type. For example, a multi-speed AC fan may require capacitor-based speed selection, while a DC fan may contain an electronic controller that accepts a separate control signal.

Legrand’s smart fan-controller documentation specifies compatibility with particular AC fan motors and separately states that certain products are not compatible with DC fan motors. This is a practical example of why “fan compatibility” must include motor technology, not only wattage.

For hotel, apartment and residential projects, specify the fan model before selecting the controller. This reduces the risk of buzzing, weak startup torque, overheating or incorrect speed operation.

Curtain Motor Control

Curtain motors, roller shutters and blinds normally require more than a single on-off output.

A typical AC curtain motor has separate direction inputs:

• Open or up

• Close or down

These two directions must not be energized simultaneously. Applying power to both motor windings can damage the motor or its control circuit.

A proper curtain smart switch should therefore include:

• Two coordinated relay outputs

• Electrical, mechanical or firmware interlocking

• A short delay before reversing direction

• Configurable travel time

• Support for motor limit switches

• Open, close and stop commands

• Position calibration when percentage control is required

ABB’s shutter-control documentation explains that both drive windings must not be activated at the same time. It also warns that ordinary switching outputs without the correct interlocking arrangement may damage a shutter or blind motor.

Direction reversal is another important issue. A motor should not be changed instantly from open to close while it is still rotating. The controller should first remove power, wait for an appropriate interval and then energize the opposite direction.

Before ordering a curtain switch, confirm:

• AC or DC motor

• Supply voltage

• Number of wires

• Motor running current

• Startup current

• Internal or external limit switches

• Required direction logic

• Required reverse delay

• Travel time

• Number of motors per output

• Whether motors may be connected in parallel

• Need for percentage-position feedback

Do not connect multiple motors in parallel unless both the motor manufacturer and controller manufacturer approve the configuration.

Water Heater and High-Power Applications

Water heaters are often described as resistive loads, which may make them appear easy to control. However, their continuous current can be much higher than that of lighting circuits.

For example, a 3,000 W heater draws approximately:

• 13.0 A at 230 V

• 25.0 A at 120 V

A switch marked 16 A may appear suitable for the 230 V example. Nevertheless, the design must also consider:

• Continuous operating duration

• Wall-box temperature

• Terminal temperature rise

• Conductor size

• Terminal torque

• Enclosure ventilation

• Local electrical regulations

• Protective device rating

• Number of adjacent loaded channels

• Safety isolation requirements

Operating close to the maximum rating for long periods can create substantial heat inside a small wall box. Poor terminal tightening or undersized conductors can increase the temperature further.

For high-power applications, a better architecture is often to use the smart switch as a control device for an external contactor. The contactor then switches the heater’s main current.

Contactors are specifically designed for higher-current switching duties and are available with separate ratings for motor and non-motor loads. Schneider Electric distinguishes contactors from smaller control relays by the load levels and applications they are designed to handle.

An external contactor should be considered when:

• The load exceeds the smart switch’s approved rating

• The load operates near the switch limit for long periods

• Local regulations require dedicated isolation

• Three-phase switching is required

• Multiple poles must disconnect together

• The application involves industrial equipment

• The load has high inrush current

• The smart switch is installed in a confined wall box

The smart device, contactor, circuit breaker, cable and appliance should be treated as one coordinated electrical system rather than independent products.

Relay Selection and Temperature Rise

The relay is one of the most important components in an on-off smart switch, but its printed current rating does not tell the entire story.

Relay selection should consider:

• Contact material

• Resistive-load rating

• LED or lamp-load rating

• Motor-load rating

• Maximum switching current

• Maximum carrying current

• Inrush withstand

• Electrical endurance

• Mechanical endurance

• Switching frequency

• Coil temperature

• Contact spacing

• Safety certification

The current a relay can carry while already closed may be different from the current it can switch repeatedly. Omron distinguishes rated carrying current from switching capacity and notes that relay performance depends on the combination of voltage, current and load characteristics.

Temperature Inside the Wall Box

A switch tested in open air may operate differently after it is installed in a deep wall box with several other heat-producing devices.

Temperature rise is affected by:

• Load current

• Contact resistance

• PCB trace width

• Relay resistance

• TRIAC or MOSFET losses

• Terminal quality

• Wire size

• Wall-box depth

• Ambient room temperature

• Number of adjacent smart switches

• Wi-Fi and power-supply activity

• Installation behind insulating material

Dimmers are particularly sensitive because their semiconductor components continuously dissipate heat. Manufacturers may require derating when multiple dimmers are mounted together. Lutron and Leviton both publish multi-gang installation guidance because grouping controls can reduce heat dissipation and may change the permitted load.

Solid-state switching devices also have load-current limits that depend on ambient temperature. Omron recommends confirming operating temperature under actual powered conditions, especially after the temperature inside the enclosure has stabilized.

For OEM and ODM projects, temperature-rise testing should be conducted with:

• Maximum approved load

• Maximum rated voltage

• Worst-case ambient temperature

• All channels operating

• Product installed in the intended wall box

• Correct production terminals and PCB

• Representative wire size

• Normal communication activity

• Sufficient time to reach thermal stability

Testing one channel on an uncovered laboratory bench does not represent the worst-case field installation.

Questions to Confirm Before Ordering

Before purchasing smart switches for a project or private-label product line, the buyer and manufacturer should complete a load-compatibility review.

1. What Is the Supply Voltage and Frequency?

Confirm whether the project uses:

• 100–120 V or 220–240 V

• 50 Hz or 60 Hz

• Single-phase or three-phase supply

The same wattage produces different current at different voltages.

2. What Is the Exact Load Type?

Do not write only “light” or “fan.” Identify the load as precisely as possible:

• Non-dimmable LED lamp

• Dimmable LED driver

• Incandescent lamp

• Magnetic transformer

• Electronic transformer

• AC ceiling fan

• DC ceiling fan

• Curtain motor

• Water heater

• Pump

• Contactor coil

3. What Is the Load Brand and Model?

Compatibility testing is more reliable when the exact lamp, driver, fan or motor model is known.

4. How Many Loads Are Connected to Each Channel?

Ten small LED drivers may create more combined inrush stress than one larger driver with the same total wattage.

5. What Are the Running Current and Power Factor?

Request the input-current and power-factor data from the load datasheet. Do not calculate everything from nominal wattage when manufacturer data is available.

6. What Is the Inrush Current?

For LED drivers and electronic power supplies, request both the peak current and pulse duration. For motors, request starting or locked-rotor current where available.

7. Is the Load Dimmable?

A lamp marked only as “LED” should be treated as non-dimmable unless its documentation clearly states otherwise.

8. Which Dimming Method Is Required?

Confirm whether the driver supports:

• Leading-edge

• Trailing-edge

• Both phase-cut methods

• 0–10 V

• 1–10 V

• DALI

• PWM

• Proprietary digital control

A phase-cut wall dimmer cannot replace a 0–10 V or DALI control system without appropriate interface equipment.

9. What Is the Minimum Load?

This is especially important for no-neutral switches, dimmers and low-wattage LED circuits.

10. Is a Neutral Wire Available?

Neutral availability affects switch architecture, minimum-load behaviour and retrofit suitability.

11. Does the Load Contain a Motor?

If yes, provide:

• AC or DC type

• Running current

• Starting current

• Power or horsepower

• Speed-control method

• Direction-control requirements

12. Is Forward and Reverse Control Required?

Curtain motors, shutters and reversible motors require interlocked outputs and safe reversal timing.

13. How Frequently Will the Load Be Switched?

A relay switching once per day and a relay switching every few minutes have very different electrical-life requirements.

14. What Are the Installation Conditions?

Confirm:

• Wall-box dimensions

• Number of gangs

• Ambient temperature

• Indoor or outdoor use

• Ventilation conditions

• Wire size

• Number of simultaneously loaded channels

15. Is an External Contactor Required?

High-power heaters, pumps and commercial equipment may be better controlled through a properly selected contactor.

16. Which Certifications Are Required?

Certification requirements may vary by market and product type. Common requirements may include CE, UKCA, RoHS, REACH, FCC or market-specific electrical safety approvals.

17. Has the Final Combination Been Tested?

The most valuable test uses the actual production smart switch with the actual lamp, driver, fan or motor intended for the project.

A Practical Load-Compatibility Approval Process

For importers, distributors and project engineers, a structured approval process can prevent expensive after-sales problems.

Step 1: Classify the load.
Determine whether it is primarily resistive, electronic, capacitive, inductive or mixed.

Step 2: Collect electrical data.
Record voltage, frequency, wattage, current, power factor, inrush and minimum-load information.

Step 3: Select the correct switch function.
Choose between relay on-off control, phase-cut dimming, fan-speed control, curtain control or contactor control.

Step 4: Check the manufacturer’s load table.
Use the rating for the relevant load category, not only the largest current printed on the product.

Step 5: Apply installation derating.
Consider temperature, wall-box size, multi-gang installation and simultaneous channel loading.

Step 6: Test samples.
Evaluate startup, repeated switching, low-level dimming, off-state behaviour, temperature and wireless stability.

Step 7: Freeze the approved bill of materials.
Changing the relay, dimming semiconductor, power-supply component or terminal supplier may affect compatibility. OEM buyers should therefore ask how the manufacturer controls component substitutions.

Final Recommendations

Smart switch load compatibility cannot be judged by wattage alone.

For LED lighting, engineers must consider driver inrush, power factor, minimum load and dimming method. For fans and motors, the design must account for starting current, inductive stress and motor-specific control requirements. Curtain motors require coordinated outputs and interlocking, while water heaters and other high-power appliances may require an external contactor.

The most reliable selection process follows five principles:

1. Identify the exact load.

2. Use the correct load-specific rating.

3. Evaluate both steady-state and startup current.

4. Consider installation temperature and derating.

5. Test the final switch-and-load combination before mass production.

A professional smart switch manufacturer should be able to provide separate load ratings, relay information, dimmer type, minimum-load requirements, temperature limits and application recommendations. It should also be willing to test representative lamps, drivers and motors for larger OEM, ODM and project orders.

By confirming these details before ordering, distributors and project teams can reduce flickering, overheating, relay failure, motor damage and installation complaints—while building a smart home system that remains stable long after commissioning.
