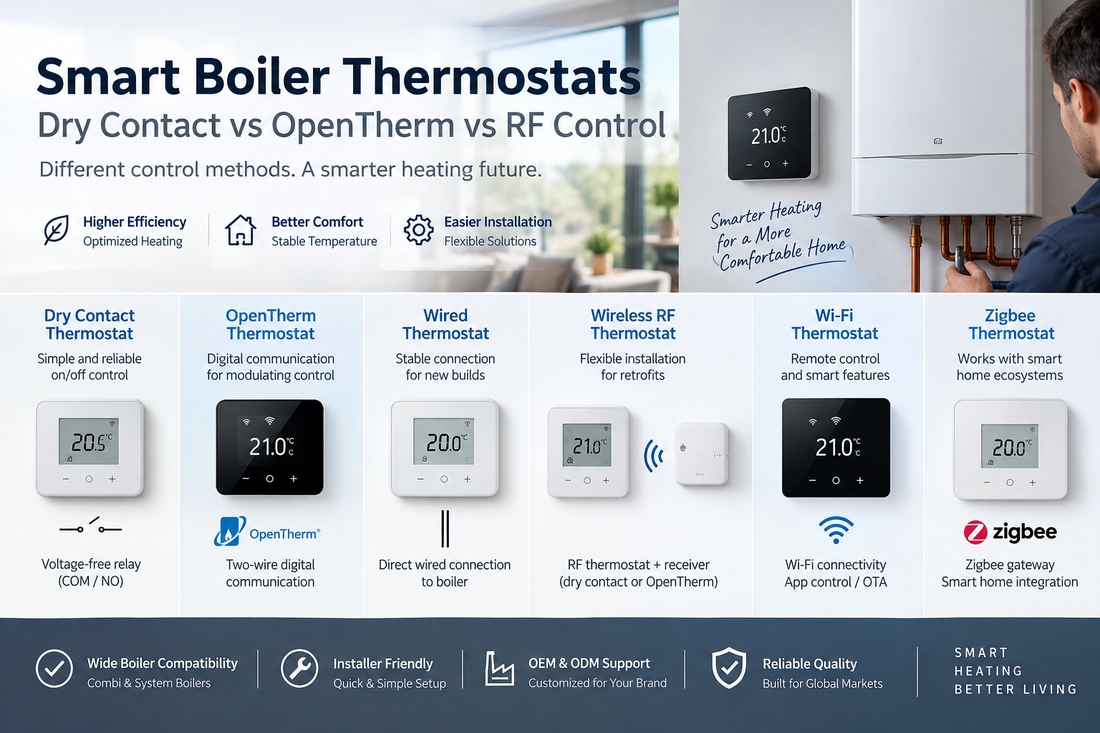

Smart Boiler Thermostats: Dry Contact vs OpenTherm vs RF Control

Choosing a smart boiler thermostat is not simply a matter of selecting Wi-Fi, Zigbee, or a mobile app. For heating distributors, boiler manufacturers, installers, and HVAC brands, the more important question is how the thermostat actually communicates with and controls the boiler.

Depending on the heating system, a boiler thermostat may use a dry contact relay, an OpenTherm interface, a wired connection, or a wireless RF receiver. Wi-Fi and Zigbee may then be added for remote control, smart-home integration, or gateway communication.

These technologies are related, but they are not interchangeable.

A dry contact thermostat generally provides simple on/off switching. An OpenTherm thermostat can exchange digital information with a compatible boiler and support modulating control. Meanwhile, an RF thermostat normally communicates wirelessly with a receiver installed near the boiler, while the receiver itself controls the boiler through dry contact, OpenTherm, or another interface.

Understanding these differences is essential before sourcing, installing, or developing a boiler thermostat product line.

How Boiler Thermostats Work

At its most basic level, a boiler thermostat measures room temperature, compares it with the user's setpoint, and determines whether heating demand exists.

For example, if the room temperature is 19°C and the target temperature is 21°C, the thermostat requests heat. Once the room approaches the setpoint, it reduces or stops the heating request according to its control algorithm.

However, the way that request is transmitted to the boiler varies significantly.

Traditional systems may simply close a relay contact. More advanced systems can send information such as requested water temperature, operating status, fault conditions, or modulation demand.

Therefore, buyers should separate three different layers when evaluating a smart boiler thermostat:

Boiler interface → heating control logic → smart communication

A thermostat can be Wi-Fi enabled but still control the boiler through a basic relay. Likewise, an RF thermostat can use OpenTherm between the receiver and boiler.

This distinction prevents many compatibility mistakes during product sourcing.

On/Off Boiler Control

On/off control is one of the most common methods used in residential boilers.

When the room requires heating, the thermostat closes a circuit or activates a relay. The boiler receives a heating demand and begins operating. When the thermostat determines that sufficient heat has been delivered, the circuit opens and the heating demand ends.

Although the electrical output is binary, modern thermostats can improve temperature stability using algorithms such as hysteresis control or time-proportional control.

For example, rather than waiting for a large temperature difference before switching the boiler, the thermostat can manage shorter heating cycles as the room approaches the target temperature.

For many replacement, retrofit, and value-oriented boiler applications, this architecture remains practical because it is relatively simple and widely understood by installers.

What Is Dry Contact?

A dry contact thermostat uses a relay contact that does not inherently supply its own control voltage to the boiler circuit.

The thermostat or receiver simply opens or closes the electrical connection.

You may also see terms such as:

dry contact, potential-free contact, voltage-free contact, or volt-free relay.

They generally describe the same basic concept.

This is particularly important in boiler applications because some boiler control terminals are designed only to detect contact closure. Applying an external voltage to a terminal intended for voltage-free switching could damage the control board.

At the same time, "voltage-free" does not mean that the relay can safely switch any voltage. Relay contact ratings, PCB isolation, terminal design, and the boiler manufacturer's wiring requirements must still be respected.

For B2B buyers, therefore, simply asking whether a thermostat has a relay is not enough. The manufacturer should specify whether the relay output is genuinely voltage-free and provide its electrical contact ratings.

What Is OpenTherm?

OpenTherm is a communication protocol designed primarily for communication between modulating heating appliances and room controllers.

Unlike a simple relay that communicates only "heat" or "no heat," OpenTherm allows compatible devices to exchange digital information. The OpenTherm Association describes it as a manufacturer-independent communication system between modulating HVAC appliances and room thermostats.

This can allow the thermostat to request a particular level of heating rather than simply switching the boiler fully on and off.

An important sourcing consideration, however, is that an OpenTherm logo or terminal should not automatically be interpreted as universal compatibility with every possible feature.

Boilers and thermostats may implement different supported functions. Consequently, boiler brands developing an OpenTherm thermostat should conduct compatibility testing against the actual boiler models intended for sale.

For OEM programs, this usually means building a boiler compatibility matrix instead of relying solely on protocol-level specifications.

Modulating Boiler Control

Modulating control is one of the main reasons buyers consider OpenTherm.

Instead of repeatedly running at a fixed heating output, a compatible boiler can adjust its operation according to heating demand.

When a home is far below the desired temperature, higher output may be requested. As the room approaches the setpoint, the control system can reduce demand.

This can provide smoother temperature control and may help the boiler operate more efficiently under appropriate system conditions.

From a product positioning perspective, however, distributors should avoid treating "modulating" as a universal feature of every smart thermostat.

The entire chain must support it:

thermostat → communication interface → boiler electronics → boiler combustion/control system

If one component only supports on/off relay control, the system cannot obtain full OpenTherm modulation simply because the thermostat has smart connectivity.

Wired Thermostats

A wired smart boiler thermostat connects directly to the boiler or heating controller.

The major advantage is communication stability. There are no batteries to replace in many wired designs, and communication is not affected by RF range or radio interference.

Wired thermostats are particularly suitable for new construction, boiler OEM packages, apartment developments, and installations where suitable cables already exist.

However, installers must verify both wiring and power requirements.

A two-wire connection does not automatically indicate the same electrical system across different products. One boiler may use a dry contact loop, another may use OpenTherm communication, while another manufacturer may use a proprietary bus.

Therefore, terminal identification is more important than wire count alone.

Wireless RF Thermostats

A wireless RF thermostat separates the room thermostat from the boiler wiring.

The wall or desktop thermostat communicates wirelessly with a receiver installed near the boiler. The receiver then controls the boiler.

This architecture can significantly simplify retrofit installations because installers do not need to run a new cable between the preferred thermostat location and the boiler.

RF products are especially useful when replacing mechanical thermostats, renovating older properties, or installing heating controls in locations where rewiring would be expensive.

One important procurement question is what interface exists on the receiver output.

An RF thermostat system may have:

RF thermostat → receiver → dry contact boiler

or

RF thermostat → receiver → OpenTherm boiler

Therefore, "RF thermostat" describes the wireless link between the controller and receiver; it does not by itself define the boiler-control method. Commercial RF boiler-control products using a separate wireless thermostat and boiler relay receiver are already a well-established architecture.

Wi-Fi Boiler Thermostats

Wi-Fi adds internet connectivity to the thermostat or receiver.

This enables functions such as mobile-app control, schedules, remote temperature adjustment, OTA firmware updates, weather-based features, and integration with supported smart-home ecosystems.

However, Wi-Fi should not be confused with the boiler interface.

A Wi-Fi smart boiler thermostat may still use a dry contact relay to control the boiler.

Another design may combine Wi-Fi with OpenTherm.

For distributors, this distinction should be clearly stated on product pages and technical datasheets. Simply advertising "Wi-Fi boiler thermostat" does not provide enough information for an installer to determine compatibility.

Zigbee Boiler Thermostats

Zigbee is frequently used when the thermostat must become part of a broader smart-home ecosystem.

Instead of connecting directly to a home router, the thermostat normally communicates with a Zigbee gateway or smart-home hub.

This can be useful for projects combining thermostats with smart switches, window sensors, TRVs, motion sensors, central control panels, and other automation devices.

For example, an integrated system may reduce heating when a window sensor detects that a window has been left open.

Nevertheless, Zigbee is still the smart-home communication layer.

The boiler-side output may remain a dry contact relay or another dedicated heating interface.

For OEM buyers, therefore, two specifications should be evaluated separately: the Zigbee implementation and the boiler-control interface.

Receiver and Thermostat Architecture

For many wireless boiler thermostat products, the receiver is just as important as the thermostat itself.

The thermostat handles room-temperature sensing and user interaction. The receiver provides the physical connection to the boiler.

A well-designed receiver should consider relay isolation, output ratings, terminal layout, manual override, RF pairing, status indicators, enclosure temperature, installation clearance, and commissioning procedures.

For professional channels, manual override is particularly useful because an installer can test boiler operation even before completing thermostat pairing.

The receiver also creates opportunities for manufacturers to build multiple products around one thermostat platform.

For example, the same room thermostat could potentially be paired with different receiver versions for relay-controlled boilers and OpenTherm-compatible boilers.

This modular architecture can simplify SKU planning for distributors serving multiple heating markets.

Combi Boiler Compatibility

Combi boilers are widely used in many European residential markets because one appliance provides both central heating and domestic hot water.

However, thermostat compatibility still varies from one boiler to another.

Some boilers accept voltage-free on/off control. Others support OpenTherm, switched-live inputs, or manufacturer-specific communication buses.

The room thermostat usually controls the space-heating demand rather than directly controlling every domestic-hot-water function inside the boiler.

As a result, "compatible with combi boilers" is too broad to be a reliable specification.

A professional thermostat supplier should identify compatibility according to the actual boiler terminals and control protocol.

For distributors, creating a tested compatibility table covering major boiler brands and models can substantially reduce installation questions and after-sales disputes.

Voltage-Free Relay Requirements

Voltage-free relay support is one of the most important specifications for a smart boiler thermostat intended for multi-brand distribution.

The thermostat manufacturer should clearly document the COM, NO, and, where available, NC terminals together with maximum switching ratings.

The design should also consider relay lifecycle, electrical isolation, PCB creepage and clearance, connector quality, and enclosure protection around the switching circuit.

Most importantly, installers must follow the boiler wiring diagram.

Some heating systems expect a simple contact closure. Others require a switched voltage. These systems should never be treated as electrically identical.

For OEM projects, manufacturers should therefore test the complete receiver output under representative boiler-control conditions rather than verifying only that the relay mechanically switches.

Installation Considerations

Installation requirements can strongly influence whether a technically capable thermostat succeeds commercially.

Before selecting a product, buyers should examine wall-box dimensions, receiver mounting method, cable entry direction, terminal size, available power supply, thermostat battery life, RF range, pairing procedure, and commissioning workflow.

The installer experience also matters.

Clear terminal markings, detachable terminal blocks, accessible mounting screws, diagnostic LEDs, and a straightforward installation manual can significantly reduce field errors.

For wireless products, the installation guide should explain receiver positioning and potential sources of radio interference.

For connected products, installers should also be able to complete essential heating commissioning without depending entirely on cloud connectivity.

OEM Requirements for Boiler Brands

Boiler manufacturers have different requirements from general thermostat distributors.

Instead of purchasing an existing thermostat with a new logo, a boiler brand may need deeper integration.

Typical OEM requirements can include customized industrial design, branding, packaging, UI language, temperature algorithms, boiler communication logic, RF receiver design, Wi-Fi or Zigbee connectivity, mobile-app integration, cloud services, firmware customization, OTA upgrades, and product certification.

Compatibility validation is particularly important.

The thermostat should be tested with representative boilers across ignition, heating demand, shutdown, fault recovery, communication loss, and power-cycle scenarios.

OpenTherm projects require additional protocol implementation and interoperability verification, while RF products require attention to regional radio requirements and pairing reliability.

For long-term OEM programs, firmware ownership, cloud-platform availability, API requirements, production traceability, and future software maintenance should also be discussed before mass production.

Boiler Thermostat Procurement Checklist

Professional buyers can use the following points when comparing suppliers:

Procurement Item	What the Buyer Should Confirm
Boiler interface	Dry contact, OpenTherm, switched control, or proprietary interface
Relay type	Genuine voltage-free output and electrical ratings
Boiler compatibility	Tested brands, models, and terminal requirements
Control method	On/off, TPI/PWM-style logic, or modulating control
Wireless architecture	Wired, RF thermostat + receiver, Wi-Fi, Zigbee, or hybrid
RF receiver	Output interface, pairing method, manual override, installation method
Smart connectivity	App, cloud, gateway, Alexa/Google ecosystem support where required
Temperature performance	Sensor accuracy, calibration method, hysteresis/control algorithm
Power supply	Battery, USB, low-voltage supply, or mains-powered receiver
Installation	Wall box, terminal layout, wiring requirements, commissioning process
Firmware	OTA capability, localization, custom heating logic
OEM/ODM	Logo, housing, UI, packaging, firmware, app, cloud customization
Compliance	Electrical, EMC, radio, environmental, and target-market requirements
Reliability testing	Relay life, temperature calibration, RF testing, aging and power-cycle tests
Documentation	Wiring diagrams, manuals, compatibility tables, QC reports

Ultimately, the best smart boiler thermostat is not necessarily the product with the longest feature list. It is the thermostat whose electrical interface, control logic, wireless architecture, and software platform correctly match the target boiler system.

For simple multi-brand installations, a dry contact thermostat may provide the widest practical compatibility. For supported modulating boilers, an OpenTherm thermostat can enable deeper communication and more sophisticated heating control. For retrofit projects, RF architecture can offer installation flexibility, while Wi-Fi and Zigbee add connected-home functionality on top of the underlying boiler interface.

For distributors and boiler brands, the correct sourcing process therefore starts with the boiler—not the app.

Define the boiler interface, voltage requirements, modulation expectations, installation environment, target market, and smart-home architecture first. Once these requirements are clear, it becomes much easier to select or develop a smart boiler thermostat that performs reliably in real installations and can scale into a commercially successful product line.
