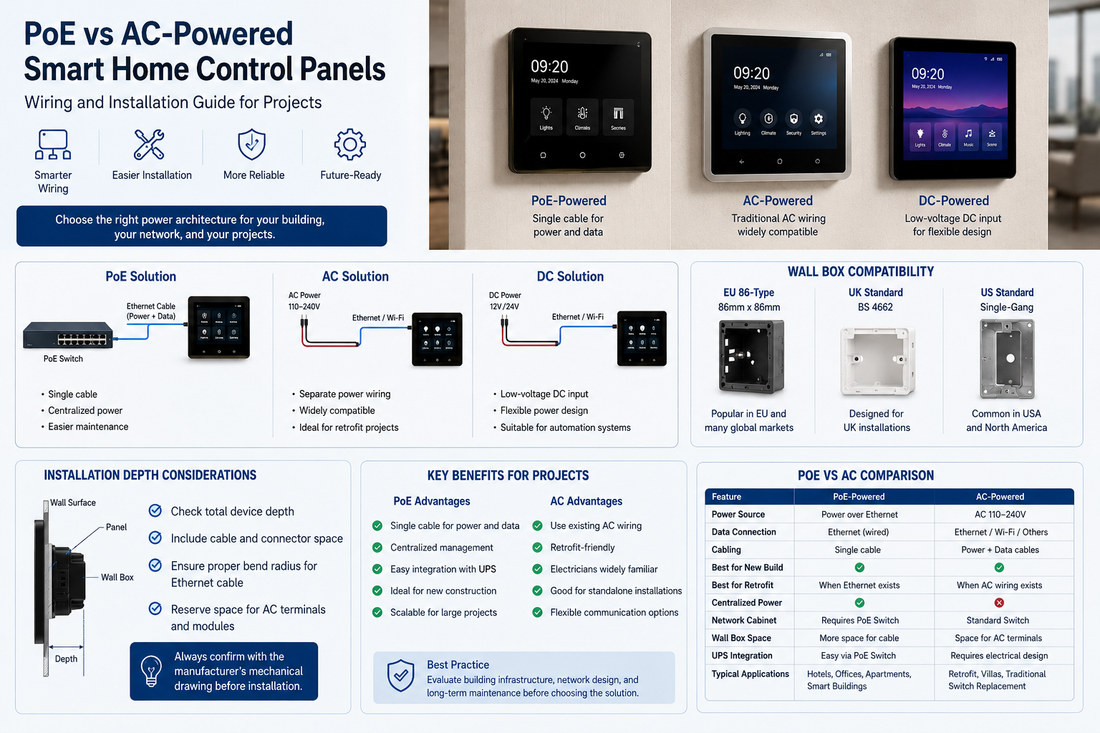

PoE vs AC-Powered Smart Home Control Panels: Wiring and Installation Guide for Projects

For installers, MEP engineers, system integrators, and project contractors, choosing a PoE smart home control panel is not simply a matter of selecting a different power input. Power architecture affects cable planning, wall-box design, network topology, commissioning, maintenance, heat management, and even how easily hundreds of panels can be deployed across apartments, hotel rooms, offices, or villas.

Professional wall panels are now available in several architectures. Some combine Ethernet data and power through PoE, while others use 110–240V AC mains power, low-voltage DC input, or multiple power options. Commercial products already demonstrate both approaches: akubela, for example, offers a PoE version of its HyPanel for smart-home applications, while Legrand documents an AC-powered smart screen designed around an 86 × 86 mm mounting box.

Therefore, the right question is not simply “Is PoE better than AC?” The more useful question is: Which power and wiring architecture best fits the building, network infrastructure, installation environment, and maintenance strategy?

Why Power Architecture Matters

A wall-mounted smart control panel may look like a simple touchscreen, but behind the screen it can function as a home automation controller, Zigbee gateway, intercom terminal, thermostat interface, security dashboard, scene controller, or building management interface.

Its power source determines how that device is integrated into the building.

With AC power, mains wiring normally needs to reach the installation position. With DC power, the project needs a suitable low-voltage supply. With PoE, power and Ethernet communication can travel through the same network cable.

That difference becomes significant at project scale.

For example, in a 200-room hotel, reducing the number of separate power supplies or AC connection points can simplify installation and future servicing. Conversely, during renovation of an existing apartment where AC wiring is already available behind the old wall switch, installing new Ethernet cable may create more work than using the existing supply.

Consequently, power architecture should be decided during system design rather than after the smart control panel installation has already begun.

How PoE Smart Panels Work

Power over Ethernet allows compatible network equipment to transmit electrical power together with Ethernet communication over structured network cabling. PoE was introduced into the IEEE 802.3 Ethernet family through IEEE 802.3af and subsequently expanded through later specifications including 802.3at and 802.3bt.

In a typical project, the architecture is straightforward:

PoE Switch → Ethernet Cable → PoE Smart Home Control Panel

The network switch or another compatible power-sourcing device provides power, while the wall panel operates as the powered device.

This architecture can remove the need for a separate local AC adapter.

However, project engineers should never specify a panel simply because its datasheet says “PoE.” Confirm:

• supported PoE standard

• required power budget

• Ethernet speed

• connector location

• maximum expected device consumption

• switch compatibility

• cable category and installation requirements

• behavior after network or switch failure

The PoE switch must also have enough total power capacity for all connected devices, not merely enough ports.

AC-Powered Wall Panels

An AC-powered wall mounted smart control panel normally accepts mains voltage directly through terminals at the rear of the device or through an integrated power module.

One major advantage is infrastructure familiarity.

Electricians already understand how to distribute mains power throughout residential and commercial buildings, and AC wiring may already exist at many intended control points.

AC-powered panels are especially useful when the device replaces:

• conventional wall switches

• thermostats

• scene controllers

• hotel room control panels

• existing touchscreen controllers

Some devices also integrate relay outputs, allowing one panel to combine touchscreen control with direct switching functions.

An official Legrand smart-screen installation document, for example, specifies 110–240V AC input together with Ethernet, Wi-Fi, Zigbee and RS485 connectivity, demonstrating how mains-powered wall panels can still participate in wired and wireless automation networks.

The key disadvantage is that power and data remain separate design considerations. Electrical safety, isolation, conductor routing, box depth, heat generation, and local electrical regulations must also be considered.

DC-Powered Panels

Low-voltage DC is a third option that is sometimes overlooked.

A DC-powered panel receives power from a separate low-voltage power supply, which may be installed locally or centrally.

This approach can work well when the automation system already has a dedicated low-voltage infrastructure. It can also be useful for specialized building-control projects where Ethernet communication is unnecessary or where communication is handled through Wi-Fi, RS485, KNX, CAN, or another bus.

However, DC should not automatically be confused with PoE.

A DC-powered panel may still require:

DC power cable + separate Ethernet cable

whereas a PoE panel can combine both functions on one Ethernet connection.

For large projects, that difference can significantly affect cabling quantities and installation labor.

Ethernet vs Wi-Fi

Power architecture and communication architecture are related, but they are not the same thing.

A panel can be:

• AC-powered with Wi-Fi

• AC-powered with Ethernet

• DC-powered with Wi-Fi

• DC-powered with Ethernet

• PoE-powered with Ethernet

• PoE-powered while also supporting Wi-Fi

Therefore, specifying “wired smart panel” is not precise enough.

For permanent control points, Ethernet can be attractive because the connection between the wall panel and network switch does not depend on wireless RF coverage at that location. IEEE 802.3 defines the underlying family of wired Ethernet standards used for this network architecture.

Wi-Fi remains useful when installing additional structured cabling would be expensive or impractical.

In many professional systems, the ideal architecture is not Ethernet or Wi-Fi everywhere. Instead, fixed infrastructure devices can use wired connections while mobile and secondary devices use wireless networking.

PoE Benefits in New Construction

PoE becomes particularly attractive when the project is still at the architectural, MEP, or structured-cabling stage.

Ethernet cable can be planned before walls are closed, allowing each panel location to connect directly to a telecommunications or network cabinet.

This creates several practical benefits.

First, one cable can handle both network communication and device power.

Second, power infrastructure can become more centralized. Instead of locating numerous small power adapters throughout the building, compatible devices can receive power from centralized network equipment.

Third, servicing becomes easier. When cables are documented correctly, installers can trace panel connections back to a specific switch port.

Finally, centralized power architecture can work well with UPS-backed network equipment. If continuity is important, the designer can evaluate whether selected switches, routers, controllers, and control panels should remain operational during short power interruptions.

For hotels, offices, apartments, schools, smart buildings, and multi-room villas, these characteristics make PoE worth evaluating early in the project.

AC Benefits in Retrofit Projects

The calculation often changes during renovation.

Imagine an existing apartment where a conventional wall switch already has mains wiring behind it, but no Ethernet cable reaches the same location.

Replacing the existing wiring with a PoE architecture may require:

opening walls,
pulling CAT cable,
creating new pathways,
modifying the network cabinet,
and repairing finished surfaces.

In that situation, an AC-powered panel using Wi-Fi, Zigbee, or another existing communication infrastructure may be considerably easier to deploy.

Therefore, PoE is often strongest when structured cabling can be planned in advance, while AC can be particularly practical when existing electrical infrastructure can be reused.

This is not an absolute rule, but it is a useful starting point during project assessment.

Installation Depth

Screen size is visible. Installation depth is not.

Yet mounting depth is one of the most common mechanical issues when specifying an in-wall smart home panel.

Engineers should check the complete rear assembly rather than only the front-panel dimensions.

Important measurements include:

• panel body depth

• wall-box depth

• connector clearance

• Ethernet plug clearance

• cable bending space

• AC terminal clearance

• removable mounting-module dimensions

A slim front bezel does not necessarily mean a shallow installation.

PoE can help simplify the rear cavity when it eliminates a separate power converter or mains termination, but the final requirement remains product-specific.

Always obtain the manufacturer's mechanical drawing before approving the wall-box specification.

Wall Box Compatibility

“Fits a standard wall box” is not sufficient information for an international project.

There is no single wall box used worldwide.

Before procurement, compare:

Box width and height → mounting-hole spacing → screw type → usable depth → cable entry position → panel rear-module size

A difference of only a few millimeters can prevent flush installation.

Some manufacturers have responded by using modular mounting systems. Akubela, for example, describes panel designs with different flush-mounted modules for different electrical-box configurations and markets.

For OEM projects, wall-box compatibility should therefore be treated as a mechanical specification, not a marketing checkbox.

EU 86-Type Wall Boxes

The term 86-type wall box frequently appears in smart switch and smart panel specifications because the approximately 86 × 86 mm format is widely used in relevant electrical and smart-home product ecosystems.

Commercial smart-screen documentation confirms that 86 × 86 mm mounting-box compatibility is used for certain wall-mounted control products.

However, integrators should avoid interpreting “86-type” as meaning universally compatible with every European installation.

European projects use multiple wiring-device standards, manufacturers, mounting systems, frame systems, and box dimensions.

Therefore, if a supplier says:

“EU standard / 86-type compatible”

request the actual mechanical drawing.

Check the box dimensions, screw centers, required depth, mounting bracket, cable entry, and finished-wall tolerance before releasing the installation drawings.

UK and US Installation Considerations

The UK and US should also be evaluated independently rather than grouped under a generic “Western standard.”

In the UK, BS 4662-type boxes are commonly referenced for flush-mounted electrical accessories; current BSI documentation for related wiring devices explicitly references boxes conforming to BS 4662.

Therefore, a product designed around an 86-type box should not automatically be assumed to fit a UK installation.

The US market likewise uses its own device-box and single-/multi-gang mounting ecosystem. NEMA recognizes outlet and switch boxes as a specific category of electrical wiring enclosure, while US connectivity manufacturers offer products specifically designed for standard NEMA-style electrical boxes.

For both markets, obtain the mounting drawing before construction begins.

Do not discover incompatibility after drywall, stone, millwork, or decorative wall panels have already been completed.

Flush Mounting

A premium wall mounted smart control panel should appear integrated into the wall rather than attached as an afterthought.

Flush mounting depends on more than box size.

The installer must consider:

• wall finish thickness

• mounting bracket adjustment

• panel edge clearance

• screw alignment

• connector position

• wall flatness

• service removal method

Stone, tile, timber panels, decorative wall cladding, and acoustic panels can all change the effective installation depth.

For hotel and luxury residential projects, installers should ideally test one complete sample installation before approving hundreds of wall openings.

Heat Dissipation

Smart panels contain processors, displays, communication modules, power-conversion components, and sometimes relays.

All produce heat.

The thermal design becomes more important when the unit is installed inside a confined wall cavity.

Avoid filling the back box with unnecessary wiring, power adapters, or tightly folded cables. Follow the manufacturer's required operating conditions and installation clearances.

Designers should also consider worst-case operation rather than only standby conditions—for example, high screen brightness, active video intercom, continuous network communication, gateway operation, or relay activity.

Good thermal planning improves system reliability and reduces avoidable service calls.

Network Cabinet Requirements

Choosing PoE moves part of the power architecture into the network cabinet.

That cabinet must therefore be designed as infrastructure rather than simply as a place to store a router.

For a multi-panel project, calculate:

Number of panels × maximum panel power requirement = baseline PoE demand

Then add other PoE devices such as:

• IP cameras

• access-control terminals

• video intercoms

• wireless access points

• sensors

• VoIP devices

The PoE switch must provide sufficient total power budget as well as sufficient ports.

Projects should also consider patch-panel organization, cable labeling, ventilation, switch redundancy where required, UPS strategy, network segmentation, remote management, and spare capacity for future expansion.

For large apartments, hotels, and office buildings, this centralized architecture is one of PoE's biggest advantages—but only when the network cabinet is designed accordingly.

PoE vs AC Comparison Table

Project Factor	PoE Smart Panel	AC-Powered Smart Panel
Power wiring	Power delivered through Ethernet	Dedicated mains supply
Data connection	Normally wired Ethernet	Ethernet, Wi-Fi, or other network
Cabling	Can combine power and data	Power and data may be separate
New construction	Excellent candidate	Also suitable
Retrofit	Best when Ethernet already exists	Often easier where AC wiring already exists
Centralized power	Strong advantage	Usually less centralized
Network cabinet	PoE switch and power budget required	Standard network equipment may be sufficient
Wall cavity	Potentially simpler low-voltage termination	Requires space for mains terminals/power electronics
Wi-Fi dependency	Can operate through wired Ethernet	Depends on selected panel
UPS integration	Can be centralized through network infrastructure	Requires appropriate electrical backup design
Installation skill	Structured cabling + network knowledge	Electrical installation + automation knowledge
Best use cases	Hotels, offices, new apartments, smart buildings	Renovations, villas, switch replacements
Key specification risk	PoE budget and switch compatibility	Electrical safety and regional voltage requirements
Mechanical risk	RJ45 position and cable bend clearance	Terminal depth, wiring space and wall-box depth

Which Architecture Should Your Project Choose?

A PoE smart home control panel is particularly attractive when the project already includes structured Ethernet cabling, centralized network cabinets, IP intercoms, access control, surveillance, building automation, or other network-based systems.

AC-powered panels remain highly relevant, especially when installers can reuse existing electrical infrastructure or when the panel directly replaces a conventional wall control point.

DC solutions can also be effective where dedicated low-voltage infrastructure already exists.

Therefore, there is no universal winner.

For new construction, start by evaluating PoE + Ethernet.

For renovation, evaluate whether existing AC wiring can reduce installation work.

For specialized automation systems, compare PoE, AC, and DC against the project's control buses, gateway architecture, and maintenance requirements.

Most importantly, do not select a panel from its screen size and software features alone. Before approving a smart control panel installation, request the manufacturer's electrical diagram, PoE specification, mechanical drawing, wall-box requirements, network interfaces, thermal information, and mounting instructions.

For an installer or system integrator, those documents often reveal more about whether a smart control panel is genuinely project-ready than the touchscreen itself.
