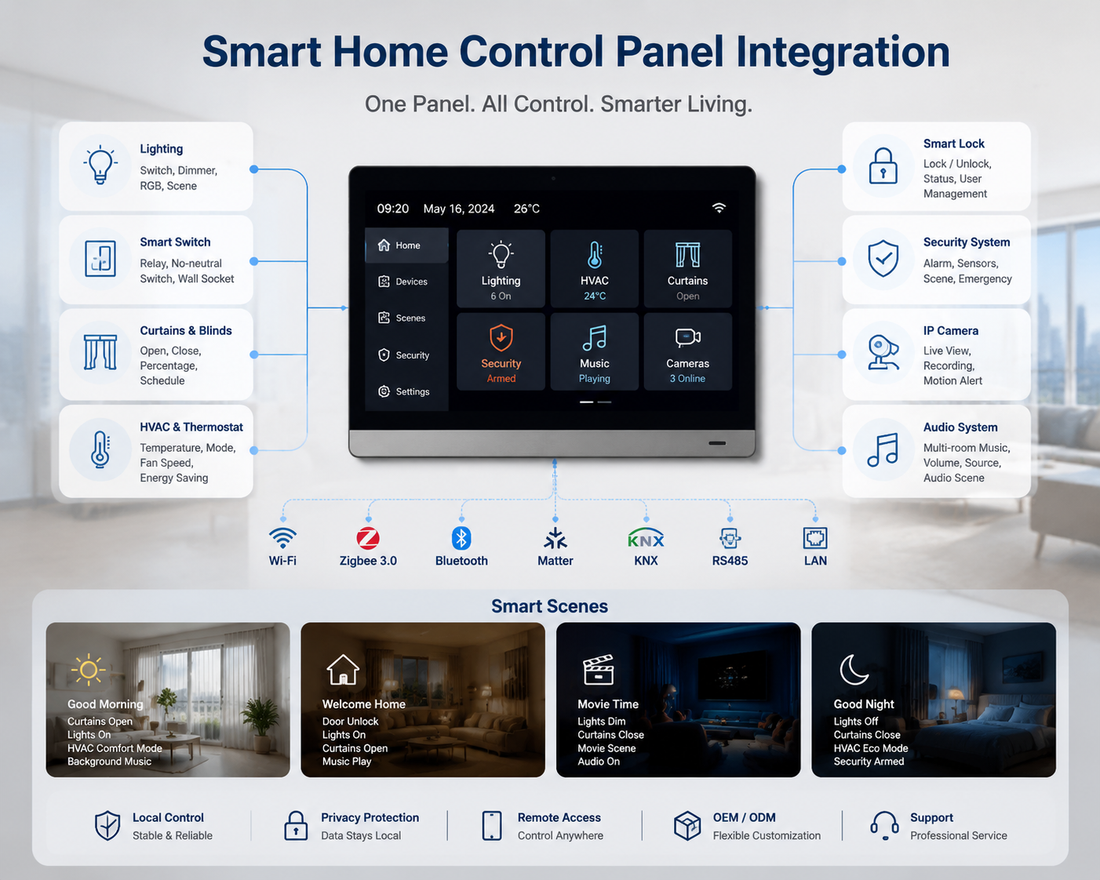

Smart Home Control Panel Integration

How to Integrate a Smart Home Control Panel With Lighting, HVAC, Curtains, Security and Audio

Introduction: Why Smart Home Control Panel Integration Matters

Modern smart home projects are no longer built around isolated smart devices. Homeowners, developers, and system integrators increasingly expect a unified automation experience where lighting, HVAC, curtains, security, audio, and other systems can work together through one central interface.

A smart home control panel integration solution acts as the command center of an intelligent building. Instead of managing multiple applications and disconnected ecosystems, users can control different devices through a wall-mounted touchscreen panel, mobile app, voice assistant, or automated scenes.

For integrators and product managers, successful integration is not only about connecting devices. It requires careful consideration of communication protocols, hardware compatibility, local control capability, API support, and long-term system scalability.

Smart Control Panel System Architecture

A professional smart home system usually consists of four main layers:

1. User Interface Layer

The smart control panel provides the interaction interface, including touchscreen control, physical buttons, rotary knobs, voice commands, and mobile applications.

2. Communication Layer

Different devices communicate through various protocols, such as:

  • Wi-Fi

  • Zigbee 3.0

  • Bluetooth Mesh

  • Matter

  • Thread

  • KNX

  • RS485

  • Ethernet

A multi-protocol smart control panel can support different project requirements, from residential apartments to luxury villas and commercial buildings.

3. Device Layer

This includes:

  • Smart switches

  • Lighting controllers

  • Curtain motors

  • Thermostats

  • Smart locks

  • Sensors

  • Cameras

  • Audio systems

4. Automation Layer

The automation engine combines device data and user commands to create intelligent scenes, schedules, and conditional actions.

For example:

“When the homeowner arrives home after sunset, the smart lock unlocks, hallway lights turn on, curtains open, and air conditioning adjusts to the preferred temperature.”

Lighting Integration

Lighting is one of the most common applications in smart home automation. A smart home control panel should support different lighting solutions, including smart bulbs, dimmers, relay modules, and DALI lighting systems.

Through integration, users can:

  • Turn lights on/off

  • Adjust brightness

  • Change color temperature

  • Control RGB lighting

  • Create customized lighting scenes

For residential projects, many integrators combine smart panels with smart switches or relay modules. This allows traditional lighting circuits to become intelligent without replacing every lamp.

For example, a villa project may use a smart panel connected with Zigbee lighting switches. The homeowner can create scenes such as:

  • Movie Mode: lights dim to 20%, curtains close, and audio starts.

  • Night Mode: bedroom lights turn off and security sensors activate.

Smart Switch Integration

A reliable smart control panel lighting solution usually requires compatibility with smart switches and relay modules.

Important factors include:

Protocol Compatibility

The control panel should support major ecosystems:

  • Wi-Fi smart switches

  • Zigbee switches

  • Matter-compatible devices

  • KNX systems

Wiring Compatibility

Professional projects often involve different electrical standards:

  • EU 86-type wall boxes

  • UK back boxes

  • US electrical boxes

For retrofit projects, no-neutral smart switches are often required because existing buildings may not have neutral wires available.

Local Control

For premium residential and commercial projects, local control is essential. It ensures lighting automation continues working even when internet access is unavailable.

Curtain and Blind Control

Automated curtains and blinds are becoming standard features in luxury homes, hotels, and smart apartments.

A smart home control panel can integrate curtain motors through:

  • Zigbee

  • Wi-Fi

  • Bluetooth Mesh

  • KNX

  • RS485

Users can control:

  • Open/close curtains

  • Adjust opening percentage

  • Schedule operation

  • Link curtains with lighting and temperature

For example:

Morning Scene:

  • Curtains gradually open at 7:00 AM

  • Bedroom lights increase brightness

  • HVAC adjusts to comfortable temperature

Sun Protection Scene:

  • When sunlight intensity increases, curtains automatically close to reduce indoor heat.

HVAC and Thermostat Integration

HVAC integration is one of the most important parts of professional home automation.

A smart control panel HVAC solution can connect with:

  • Smart thermostats

  • Fan coil units (FCU)

  • Floor heating systems

  • Air conditioners

  • Heat pumps

The control panel can manage:

  • Temperature settings

  • Heating and cooling modes

  • Fan speed

  • Energy schedules

  • Room temperature monitoring

For hotels and apartments, HVAC integration also helps improve energy efficiency. For example, when a guest leaves a hotel room, the system can automatically reduce air conditioning output.

Smart Lock Integration

Smart locks provide security and convenient access management.

Integration with a smart control panel enables:

  • Door status monitoring

  • Remote unlocking

  • Temporary access codes

  • User management

  • Security scene activation

A common automation example:

When the door unlocks:

  • Entrance lights turn on

  • Security alarm disables

  • Welcome music starts

  • HVAC switches to comfort mode

For high-end residential projects, smart locks are often combined with video intercom systems and security cameras.

Sensor Integration

Sensors provide the data required for intelligent automation.

Common sensors include:

  • Motion sensors

  • Door/window sensors

  • Temperature sensors

  • Humidity sensors

  • Light sensors

  • Air quality sensors

  • Water leakage sensors

A smart panel can analyze sensor information and trigger automatic actions.

Example:

If a motion sensor detects no activity for 30 minutes:

  • Lights turn off

  • HVAC enters energy-saving mode

  • Curtains close automatically

Security System Integration

Modern smart homes require integrated security instead of standalone alarm systems.

A smart control panel can connect with:

  • Alarm systems

  • Door sensors

  • Motion detectors

  • Smart locks

  • Cameras

Security scenes can combine multiple devices:

Away Mode:

  • All doors locked

  • Security sensors activated

  • Lights turned off

  • Curtains closed

Emergency Mode:

  • Alarm activated

  • Lights flash

  • Cameras start recording

  • Notifications sent to users

IP Camera Integration

IP cameras are an important part of smart home security.

A smart panel with camera integration can support:

  • Live video viewing

  • Door monitoring

  • Motion alerts

  • Recording control

Common protocols include:

  • ONVIF

  • RTSP

  • Manufacturer APIs

For villas and apartments, integrating cameras directly into the wall panel creates a more professional user experience.

Video Intercom Integration

Video intercom systems allow users to communicate with visitors and control access.

Integration features include:

  • Visitor video preview

  • Two-way audio communication

  • Door unlocking

  • Security event recording

For smart apartments and hotels, video intercom integration is often combined with access control and elevator management systems.

Background Music Integration

Audio automation improves comfort and user experience.

A smart control panel can integrate with:

  • Multi-room audio systems

  • IP speakers

  • Bluetooth speakers

  • Network audio platforms

Users can control:

  • Music playback

  • Volume

  • Room selection

  • Audio scenes

Example:

Party Scene:

  • Living room lights change color

  • Curtains open

  • Background music starts

  • HVAC adjusts automatically

Smart Scenes

Smart scenes are the core value of home automation.

Instead of controlling devices individually, users activate multiple actions with one command.

Popular scenes include:

Welcome Scene

  • Unlock door

  • Turn on lights

  • Open curtains

  • Play music

Sleep Scene

  • Turn off lights

  • Close curtains

  • Lower temperature

  • Activate security mode

Movie Scene

  • Dim lighting

  • Close blinds

  • Start audio system

For integrators, scene customization is often a key selling point for premium projects.

Voice Assistant Integration

Voice control improves accessibility and user convenience.

Smart panels can integrate with:

  • Amazon Alexa

  • Google Home

  • Apple HomeKit

  • Matter ecosystems

However, voice assistants should complement rather than replace the control panel.

A professional smart home usually combines:

  • Wall-mounted control panels

  • Mobile apps

  • Voice assistants

  • Automatic scenes

This provides flexible control for different users.

Local API vs Cloud API

When selecting a smart home control panel, API capability is critical.

Local API

Advantages:

  • Faster response

  • Higher reliability

  • Better privacy

  • Works without internet

Local APIs are preferred for luxury villas, hotels, and commercial automation projects.

Cloud API

Advantages:

  • Remote access

  • Easy ecosystem integration

  • Simple device management

However, cloud dependency may introduce latency and reliability concerns.

The ideal solution is a hybrid architecture supporting both local control and cloud services.

Integration Checklist Before Procurement

Before selecting a smart home control panel manufacturer, integrators should evaluate:

  • Supported protocols (Wi-Fi, Zigbee, Matter, KNX, RS485)

  • Compatibility with existing devices

  • API and SDK availability

  • Local automation capability

  • HVAC integration support

  • Lighting control options

  • Curtain motor compatibility

  • Security system integration

  • Camera and intercom support

  • Audio system compatibility

  • OEM/ODM customization capability

  • Firmware update strategy

  • Long-term technical support

Conclusion

A successful smart home control panel integration project requires more than connecting individual devices. The control panel must act as a reliable automation hub that coordinates lighting, HVAC, curtains, security, cameras, and entertainment systems.

For system integrators and product managers, choosing a manufacturer with strong hardware design capability, multi-protocol support, software integration experience, and OEM customization ability is essential.

A well-designed smart control panel does not simply control devices—it creates a seamless intelligent living experience that is scalable for homes, apartments, hotels, and commercial buildings.
