How to Audit and Test Smart Switch Quality Before Mass Production

Smart switches combine mains-voltage electrical components, wireless communication modules, embedded firmware, mobile applications and mechanical structures in a compact product. As a result, checking only the appearance or basic on/off function is not enough to control quality.

A professional smart switch quality inspection program should evaluate the factory’s quality system, verify critical components, test electrical and wireless performance, and confirm that mass-production units remain consistent with the approved sample.

This process should begin before an order enters mass production. Detecting an unsuitable relay, unstable firmware or poor PCB design during product development is far less expensive than finding the same problem after thousands of units have been manufactured, packaged and shipped.

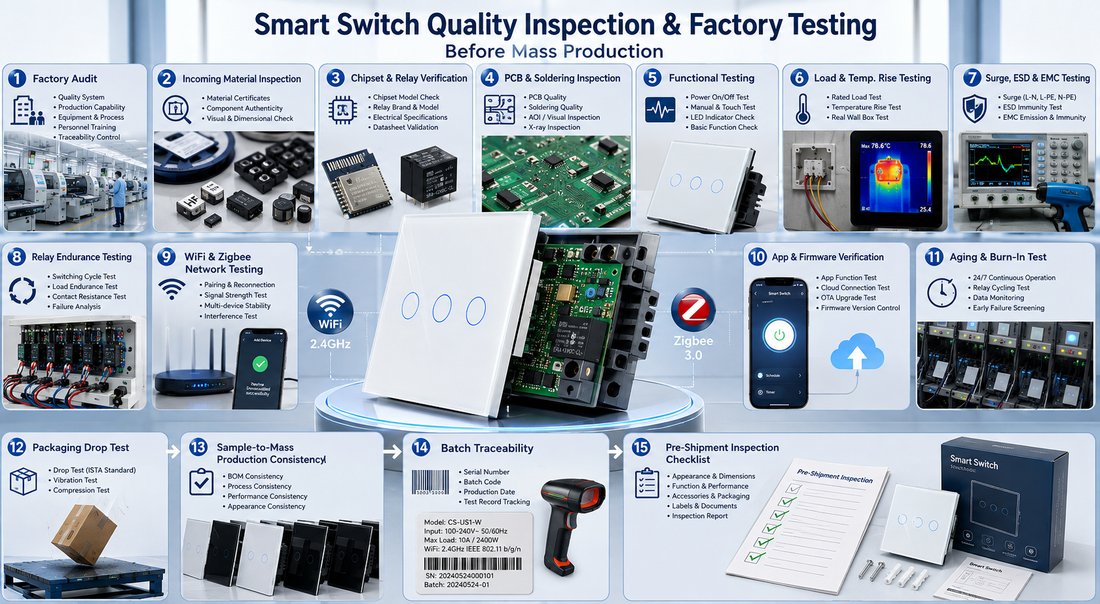

The following framework explains how procurement managers, quality managers and smart home brands can audit and test smart switch quality before approving mass production.

Factory Audit vs Product Inspection

A factory audit and a product inspection serve different purposes.

A smart switch factory audit evaluates whether the supplier has the systems, personnel, equipment and process controls required to manufacture products consistently. It normally covers:

• Factory ownership and business scope

• Production lines and available capacity

• Incoming material control

• Supplier management

• Production process documentation

• Calibration of test equipment

• Nonconforming product control

• Engineering change procedures

• Employee training

• Traceability and corrective action systems

Product inspection, by comparison, checks whether a specific product or production batch meets the agreed specifications.

A factory can produce a good sample while still lacking the controls required for stable mass production. Conversely, an organized factory may still produce a defective batch because of an incorrect component, assembly error or uncontrolled firmware update.

Therefore, buyers should not choose between an audit and an inspection. They should use both.

The audit determines whether the manufacturer is capable of controlling quality, while product inspections verify whether that capability has been applied to the actual order.

Incoming Material Inspection

Smart switch quality starts before assembly.

The factory should establish incoming quality control procedures for critical materials, including:

• Relays

• WiFi, Zigbee or Matter modules

• Microcontrollers and power-management ICs

• PCB assemblies

• Capacitors, resistors and transformers

• Glass panels and plastic housings

• Metal mounting frames

• Terminals and screws

• LED indicators

• Touch-control components

Inspectors should confirm the manufacturer, model number, specification and production lot of each critical component. They should also check whether the supplied material matches the approved bill of materials.

This is especially important for components that may look similar but perform differently. Two relays with the same external dimensions may have different contact materials, coil specifications, switching capacities or endurance characteristics.

Material substitution should never be treated as a routine purchasing decision. Any proposed change to a critical component should go through engineering review, sample testing and written customer approval.

Chipset and Relay Verification

The wireless chipset and switching relay directly affect product stability.

For the communication module, confirm:

• Chipset manufacturer and part number

• WiFi, Zigbee, Bluetooth or Matter version

• Memory capacity

• Antenna design

• Radio-frequency parameters

• Security capability

• Firmware version

• Module certification status

A factory should not describe a product as “Zigbee certified” simply because it uses a Zigbee chipset. The Connectivity Standards Alliance requires eligible products to complete the applicable certification process through authorized testing providers. Internal interoperability testing is useful, but it is not equivalent to official certification.

Relay verification should cover the relay brand, model, rated current, contact material, coil voltage and approved load type. Buyers should also confirm whether the relay rating applies to resistive loads, LED loads, motors or other inductive and capacitive loads.

A printed current rating alone does not prove that the complete smart switch can safely control the same load under real installation conditions.

PCB and Soldering Inspection

PCB quality should be checked before the housing is closed.

Inspectors should examine:

• Solder joint shape and coverage

• Cold solder joints

• Solder bridges

• Excessive solder

• Missing components

• Incorrect component orientation

• PCB contamination

• Flux residue

• Damaged tracks

• Clearance between high- and low-voltage circuits

• Connector alignment

• Antenna placement

Automated optical inspection can identify many visible assembly problems, but it should be supported by manual inspection and functional testing.

The approved PCB revision must also be recorded. A supplier should not modify copper traces, component positions, isolation distances or antenna layouts without engineering validation.

For smart switches intended for household fixed electrical installations, the applicable compliance plan may reference standards such as IEC 60669-2-1, which covers electronic control devices and electronic switches. The exact standard and national deviations depend on the product type and target market.

Functional Testing

Every production unit should receive basic functional testing rather than relying only on sampled inspection.

The test should verify:

• Manual on/off operation

• Touch-panel response

• Mechanical button response

• LED indicator status

• Relay switching

• Channel independence

• Pairing and reset functions

• Power-loss recovery

• Timer and countdown functions

• Scene control

• Two-way or multi-way control, where applicable

• Overload protection, where specified

For multi-gang switches, each channel should be tested individually and in combination. Testing one channel does not confirm that the entire device works correctly under simultaneous operation.

The factory should also verify abnormal operating conditions. For example, the switch should recover predictably after a power interruption instead of remaining offline, switching unexpectedly or losing its configuration.

Load and Temperature Rise Testing

One of the most important parts of smart switch quality inspection is testing the product with representative loads.

A smart switch may behave normally with a small incandescent lamp but fail when connected to LED drivers, fans, motors or high-inrush loads. Therefore, testing should reflect the real applications of the target market.

The test plan should include relevant combinations of:

• Resistive loads

• LED lighting loads

• Capacitive loads

• Inductive loads

• Fan motors

• Curtain motors

• Minimum-load conditions

• Maximum-rated load conditions

During testing, measure the temperature of the relay, terminals, PCB power components and housing. The product should be installed in a representative wall box because heat dissipation in an enclosed box can differ substantially from testing on an open laboratory bench.

Temperature-rise acceptance criteria should be based on the applicable safety standard, component ratings, enclosure materials and product specification—not on a generic factory rule.

Surge, ESD and EMC Testing

Smart switches operate in electrical environments where switching transients, static electricity and electromagnetic disturbances may occur.

A complete verification program may include:

• Surge immunity

• Electrostatic discharge

• Electrical fast transient or burst

• Conducted radio-frequency immunity

• Radiated radio-frequency immunity

• Conducted emissions

• Radiated emissions

• Voltage dips and short interruptions

IEC 61000-4-5 addresses immunity to surges associated with switching and lightning transients, while IEC 61000-4-2 specifies methods for evaluating immunity to electrostatic discharge. Other IEC 61000-4 series standards cover radiated and conducted electromagnetic disturbances.

The required test levels depend on the destination market, installation environment and applicable product standard.

For the United States, wireless and digital circuitry may also fall under FCC equipment authorization requirements. Buyers should review the actual authorization route, test reports and product configuration rather than accepting a generic statement that a factory is “FCC compliant.”

Pre-compliance testing is valuable during development, but it should not be presented as final regulatory certification.

Relay Endurance Testing

A relay that works during a short functional test may still fail after repeated operation.

Relay endurance testing repeatedly switches a defined load under controlled conditions. The test should record:

• Load type

• Voltage and frequency

• Switching current

• Inrush current

• Switching interval

• Number of cycles

• Contact resistance

• Relay temperature

• Failure mode

Testing should use the complete smart switch assembly rather than evaluating only the standalone relay.

PCB design, terminal resistance, heat accumulation, firmware timing and enclosure temperature can all influence the performance of the finished device. For this reason, a relay supplier’s datasheet does not replace product-level endurance testing.

WiFi and Zigbee Network Testing

Wireless testing should reflect actual homes, apartments, hotels and commercial projects.

For WiFi models, test:

• Initial pairing success rate

• Pairing time

• Router compatibility

• Weak-signal performance

• Reconnection after router restart

• Reconnection after power failure

• Response time

• Multi-device stability

• Cloud availability and recovery

• Performance with crowded 2.4 GHz networks

For Zigbee models, test:

• Gateway pairing

• Joining and leaving the network

• Mesh routing

• Reconnection after gateway restart

• Communication through router devices

• Multi-device network capacity

• Scene response time

• Offline local control

• Compatibility with approved gateway models

Testing one device beside a router is not enough. A project-oriented test should include multiple switches, realistic distances, walls, network congestion and repeated connection cycles.

App and Firmware Verification

Hardware and software should be approved as one product configuration.

App and firmware verification should cover:

• Device pairing

• Remote control

• Status synchronization

• Timers and schedules

• Scenes and automation

• User sharing

• Time-zone handling

• Offline notifications

• Firmware updates

• Failed-update recovery

• Account security

• Data reset

• Device removal

• Alexa or Google Home integration, where applicable

The approved firmware version should be locked before mass production. If the factory updates firmware during production, the new version should go through regression testing.

Regression testing is important because correcting one problem can unintentionally affect pairing, relay behavior, status reporting or automation logic.

The buyer should receive a firmware release record showing the version number, release date, changes, known limitations and validation status.

Aging Test and Burn-In Test

An aging test operates the product continuously for a defined period to expose early failures.

A useful aging process may repeatedly control the relay, maintain wireless communication and monitor abnormal resets, overheating or loss of connection. The conditions should be documented rather than described only as “100% aging tested.”

Buyers should ask:

• How long is the aging period?

• Is the product powered continuously?

• Is a real or simulated load connected?

• Are relays actively switched?

• Is wireless communication monitored?

• What happens when a unit fails?

• Are failure records linked to production batches?

Aging tests cannot prove the full service life of the product. However, they can help identify assembly defects, weak components and early-life failures before shipment.

Packaging Drop and Transportation Tests

A reliable smart switch can still reach the customer damaged if its packaging is inadequate.

Packaging validation should examine:

• Individual product protection

• Accessory separation

• Glass-panel protection

• Carton strength

• Internal movement

• Label durability

• Moisture protection

• Pallet configuration

Drop and transportation simulations should use the final sales packaging, master carton, accessories and quantity—not an engineering sample packed with additional protective materials.

After testing, inspect both packaging and product function. Hidden damage may include cracked mounting structures, loose terminals, damaged relays or disconnected internal components.

Sample-to-Mass-Production Consistency

The golden sample should represent the exact configuration approved for production.

It should include:

• Hardware revision

• PCB revision

• Firmware version

• Wireless module

• Relay model

• Housing material

• Surface finish

• Logo and printing

• Packaging

• Accessories

• User manual

Before mass production, the factory should compare the pilot batch with the approved sample. During production, inspectors should confirm that critical characteristics remain unchanged.

This prevents a common sourcing problem: the pre-production sample performs well, but the mass-production version contains a different relay, thinner metal frame, modified PCB or lower-cost plastic material.

Batch Traceability

Every shipment should be traceable to its production history.

A practical system may connect the finished product or carton code with:

• Production date

• Production line

• Work order

• Material batches

• PCB batch

• Firmware version

• Test records

• Inspector

• Rework history

Traceability makes corrective action faster. When a field problem is reported, the supplier can identify the affected batch instead of treating every unit ever produced as potentially defective.

For connected devices, firmware traceability is just as important as hardware traceability.

Pre-Shipment Inspection Checklist

The final pre-shipment inspection should be based on a written specification and an agreed sampling plan. ISO 2859-1:2026 defines AQL-indexed acceptance sampling schemes for lot-by-lot inspection, although buyers still need to select appropriate inspection levels and defect classifications for their product and risk profile.

A smart switch pre-shipment inspection should confirm:

1. Product model, quantity and order configuration

2. Approved relay, chipset and critical components

3. PCB and firmware revisions

4. Appearance, dimensions and workmanship

5. Terminal markings and wiring diagrams

6. Manual control and relay operation

7. WiFi or Zigbee pairing

8. App functions and status synchronization

9. Power-loss recovery

10. Rated-load operation

11. Temperature performance

12. Accessories and user manuals

13. Labels, serial numbers and traceability codes

14. Packaging and carton quality

15. Shipment documentation and inspection records

Critical electrical or safety defects should not be treated in the same way as minor cosmetic defects. Defect classifications and acceptance criteria should be agreed before inspection begins.

Final Thoughts

Effective smart switch quality inspection is not a single test performed after production. It is a controlled process that begins with supplier qualification and continues through component verification, engineering validation, pilot production, mass-production monitoring and pre-shipment inspection.

A professional smart switch factory should be able to explain not only whether a product passed, but also what was tested, under which conditions, against which requirement and with which equipment.

For procurement managers and smart home brands, the most reliable approach is to combine a smart switch factory audit with product-specific testing and batch-level inspection. This reduces the risk of component substitution, unstable wireless performance, firmware problems, overheating, inconsistent production and costly after-sales claims.

Before approving mass production, always request objective evidence: component specifications, test methods, test records, firmware versions, traceability data and corrective-action reports. Good quality is not demonstrated by a perfect sample alone. It is demonstrated by a repeatable manufacturing and verification system.
