EU vs UK vs US Smart Switches: Voltage, Wall Boxes, Wiring and Market Requirements

For international importers, product managers and contractors, choosing a smart switch is not simply a matter of selecting Wi-Fi, Zigbee or Matter. A model that works in Germany may not fit a British wall box, while a switch designed for the United States may be electrically unsuitable for either market. Therefore, an effective EU vs US smart switch sourcing strategy must begin with the installation environment, not the appearance of the front panel.

The safest approach is to treat continental Europe, the United Kingdom and the United States as separate product platforms. They may share firmware and industrial design, but the power supply, mounting frame, terminals, certification file, packaging and instructions often require market-specific engineering.

Why One Smart Switch Cannot Fit Every Market

A universal-looking glass panel can hide major differences behind the wall. The module may be designed for 120 V or 230 V. Its screws may align with a European round box, a UK square box or a North American device yoke. The switch location may provide a neutral conductor, or it may contain only line and switched-line wires. Even terms such as “2 gang” and “2 way” can mean different things to different buyers.

Changing only the faceplate is therefore rarely enough. A market-ready SKU should be reviewed as a complete system: panel dimensions, mounting frame, rear-module depth, terminal layout, conductor capacity, load rating, wireless approval, electrical safety documentation and localized instructions.

Voltage and Frequency Differences

Most continental European countries and the United Kingdom use a nominal 230 V, 50 Hz supply. The United States normally supplies 120 V, 60 Hz to lighting and general receptacle circuits within a residential 120/240 V split-phase system. The IEC’s country reference confirms that voltage and frequency are market-specific parameters.

These differences affect the power supply, relay spacing, surge protection, heat generation, dimming circuit and component selection. A 230 V switch should not be sold into a 120 V project merely because its relay current looks sufficient. Likewise, a 120 V design cannot be relabeled for Europe without engineering review and relevant testing.

For multi-market development, manufacturers should define separate input ratings and test realistic LED, resistive, fan and motor loads at the intended voltage and frequency.

EU Round Wall Boxes

Across many continental European markets, wiring accessories are installed in round or round-derived flush boxes. A common convention uses 60 mm fixing centres, although box diameter, depth, claw mounting and frame systems vary by country and brand. Schneider Electric specifies 60 mm fixing centres for its European Multifix system.

Consequently, “EU version” is not a complete specification. Buyers should confirm the destination country, frame system, screw spacing, panel size and whether multi-gang products use linked boxes or one combined frame. Products that look broadly European may still belong to different accessory ecosystems.

Depth also matters. A connected switch contains a power supply, relay and radio module, so it may be difficult to install in a shallow renovation box once conductors and connectors are included.

UK Square Wall Boxes

The typical UK smart switch wall box differs mechanically from continental round-box systems. A single-gang UK-style faceplate is commonly around 86 × 86 mm, and 35 mm mounting boxes are widely used, although other depths exist. Leviton and Hager specifications show the familiar 86 mm format and common 35 mm box depth.

An EU round-box frame therefore normally cannot be installed directly into a UK square box. Even when the visible panel is square, the fixing points and rear-module shape may be incompatible.

Smart-switch depth is especially important in renovation projects. A traditional mechanical switch may fit a shallow box, while an electronic model may not. Importers should state the minimum recommended box depth in product listings, drawings and sample approvals.

US Decora-Style Installation

The United States generally uses rectangular single-gang boxes with the device mounted vertically on a metal yoke. Many modern switches use a Decora-style opening and a separate wallplate. Leviton’s standard one-gang Decora wallplate is approximately 2.75 inches wide and 4.61 inches high, clearly different from an 86 × 86 mm UK plate or a European round-box frame.

The switch body must align with North American mounting positions, while the box must provide enough volume for line, load, neutral, ground and traveler conductors. Large smart-switch bodies can create conductor-fill and heat-management problems in older or shallow boxes.

US models should also use familiar terminal names such as line, load, neutral, ground and traveler. European wire colors or UK “COM/L1/L2” diagrams can confuse installers and increase support costs.

Neutral-Wire Availability

Neutral availability cannot be determined by country alone. In many older European and UK lighting circuits, the switch position may contain only permanent live and switched live; the neutral remains at the ceiling point or junction box. In the United States, newer code provisions have increased neutral availability at many switch locations, but existing buildings, local adoption and retrofit exceptions still create variation. NFPA material for NEC Section 404.2(C) reflects both the neutral provision and retrofit exceptions.

Product ranges should clearly separate neutral-required and no-neutral models. No-neutral switches must be tested with realistic LED drivers because standby current can cause flickering, ghosting or incomplete shutoff. Where a bypass is required, its compatible loads and installation position should be explicit.

Gang and Way Terminology

“Gang” usually refers to the number of devices, buttons or controlled loads on one plate, but the mechanical meaning changes by market. A UK 2-gang plate may contain two switches in one square accessory. In the US, a 2-gang box normally holds two separate devices. In European modular systems, several mechanisms may sit under one support frame.

“Way” describes the switching arrangement. UK and many international suppliers use “1-way” for control from one location and “2-way” for control from two locations. North American equivalents are generally “single-pole” and “3-way”; control from three or more locations commonly adds a “4-way” switch.

Purchase orders should therefore include a wiring diagram, the number of loads, the number of control locations and the required faceplate format.

Product Dimensions and Installation Depth

A professional specification should include visible panel size, screw spacing, frame dimensions, rear-housing width and depth, terminal projection, recommended box depth and wiring clearance.

A device may physically enter a box yet leave too little room to bend conductors safely. This problem becomes more serious with rigid wire, traveler circuits, neutral bundles and looped connections. Manufacturers should provide dimensioned drawings, while importers should test samples in real local boxes before approving production.

Certification Differences

For the European Union, CE marking indicates that the manufacturer has assessed the product against applicable EU requirements. A wireless smart switch may fall under the Radio Equipment Directive, while electrical safety, EMC, RoHS and other rules may also apply. CE is supported by technical documentation and an EU Declaration of Conformity; it is not merely a test certificate.

Great Britain has the UKCA framework, although current UK policy continues to recognize CE marking for many sectors. The correct route depends on the legislation and whether the product is sold in Great Britain or Northern Ireland. Dual CE and UKCA marking is possible when both requirements are met.

In the United States, FCC authorization addresses radio-frequency compliance for Wi-Fi, Bluetooth, Zigbee and similar transmitters; it does not replace electrical safety evaluation. FCC guidance states that intentional radiators generally require certification before marketing. NRTL safety listing, such as UL or ETL, may also be required by workplaces, inspectors, retailers or project specifications.

Packaging and Instruction Localization

Packaging should identify the exact market version and show rated voltage, frequency, load limits, wiring requirement, protocol, model number and applicable compliance markings.

Instructions must also be localized. EU radio-equipment rules require instructions and safety information in a language easily understood in the member state where the product is sold. Great Britain requires clear and legible instructions in easily understandable English.

Diagrams should use local wire colors, box types and terminology. App screenshots, pairing steps, QR codes and after-sales contacts should also match the destination region and brand.

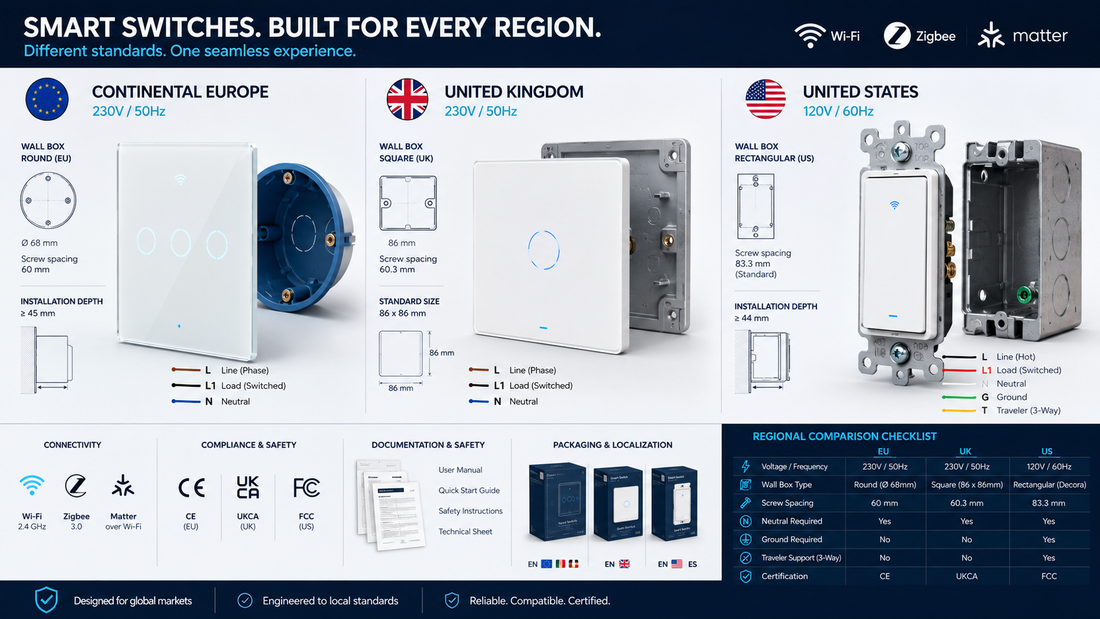

Market-by-Market Product Selection Table

Item	Continental EU	United Kingdom	United States
Typical supply	230 V, 50 Hz	230 V, 50 Hz	120 V, 60 Hz
Common box format	Round system, often 60 mm fixing centres	Square UK-style box	Rectangular single-gang box with yoke
Common front format	Modular frame or glass panel	Around 86 × 86 mm for one gang	Decora device plus wallplate
Neutral at switch	Survey required	Survey required	More common in newer work, not guaranteed
Switching terms	1-way/2-way or local equivalents	Gang; 1-way/2-way	Gang; single-pole/3-way/4-way
Compliance direction	CE and applicable EU legislation	CE and/or UKCA route	FCC plus applicable NRTL listing and local acceptance
Instruction language	Destination-country requirements	English	English; Spanish often added commercially
Key sample check	Country-specific frame and depth	Fixing pattern and box depth	Yoke, wallplate, box volume and wiring

Information to Confirm Before Sampling

Before sampling, confirm the destination country, voltage, frequency, wall-box drawing, fixing centres, panel size, minimum box depth, neutral availability, gang count, switching arrangement, load type, maximum wattage, protocol, ecosystem and certification route.

Also verify that the sample is electrically and mechanically identical to the planned production model. A sample using a different relay, radio module, PCB or frame cannot reliably validate the final order.

Ultimately, the best EU vs US smart switch decision is based on installation data rather than assumptions. By defining separate EU, UK and US specifications from the beginning, importers reduce installation failures, certification delays, returns and support costs while creating a product line that contractors can install confidently.
