24V Smart Thermostats and C-Wire Compatibility: A Guide for North American HVAC Buyers

For HVAC distributors, contractors, and private-label thermostat brands in the United States and Canada, “24V compatible” is not a sufficient product specification.

A 24V smart thermostat may need to work with gas furnaces, central air conditioners, air handlers, conventional heat pumps, auxiliary electric heat, single-stage systems, multi-stage equipment, and installations with either one or two HVAC transformers. The thermostat also needs enough continuous power for its display, Wi-Fi module, processor, sensors, and cloud-connected functions.

That is why C-wire smart thermostat compatibility has become an important purchasing issue.

Before importing or private-labeling a thermostat for North America, buyers should understand not only whether the product operates on 24VAC, but also which terminals it supports, how its HVAC control logic works, and what happens when the existing installation does not have a C-wire.

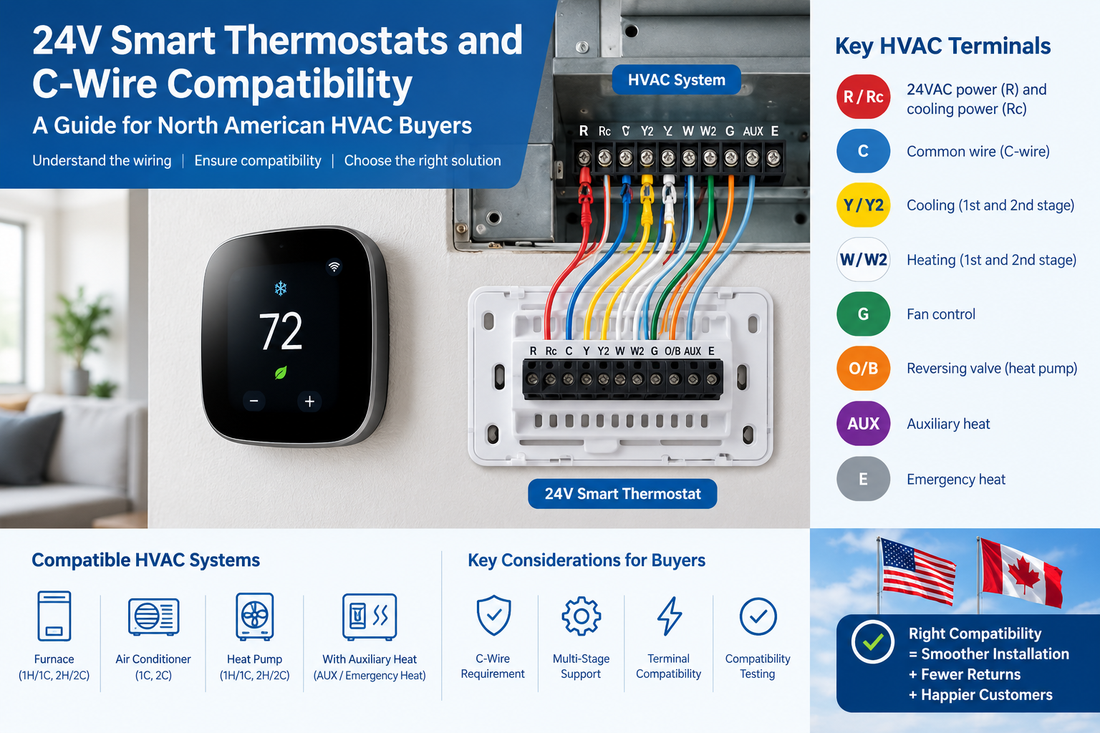

This guide explains the major HVAC thermostat wiring terminals and the compatibility questions buyers should verify before approving samples.

Why North American Thermostats Commonly Use 24VAC

Most central residential HVAC systems in the United States and Canada use a low-voltage control circuit built around a nominal 24VAC transformer.

The furnace, air handler, or HVAC control board receives line voltage and uses a transformer to supply low-voltage power to the thermostat control circuit. The thermostat then acts as the control interface between the homeowner and the HVAC equipment.

For example, when cooling is required, the thermostat can energize the Y circuit. When heating is required, it may energize W. Fan operation is commonly controlled through G.

This architecture allows the thermostat to control HVAC equipment without directly switching the 120V or 240V power used by larger heating and cooling loads.

However, buyers should not interpret “24VAC thermostat” as a universal compatibility statement.

A professional specification should identify the actual allowable input range, supported HVAC configurations, output characteristics, terminal definitions, and maximum control load. Current North American smart thermostats from major manufacturers likewise publish specific system and terminal compatibility rather than relying on a generic “24V” claim.

What Is a C-Wire?

The C-wire, or common wire, is the return side of the 24VAC power circuit.

In simplified terms:

R provides the 24VAC supply, while C provides the common return path.

Traditional mechanical and battery-powered thermostats could often operate without a dedicated C-wire because they required very little continuous electrical power.

Smart thermostats are different.

A modern Wi-Fi thermostat may need continuous power for:

Wi-Fi communication, a touchscreen or LCD, temperature sensing, memory, processing, backlighting, firmware functions, and cloud connectivity.

The C-wire therefore allows the thermostat to receive continuous power without depending on unconventional power-sharing methods through HVAC control circuits.

Resideo, for example, specifies the C terminal as the 24VAC common on several connected thermostat models, while Google also explains that the C-wire provides thermostat power rather than directly controlling heating or cooling.

For OEM buyers, one key question should therefore be:

Does the smart thermostat require a C-wire, or can it operate reliably without one?

The answer affects installation difficulty, return rates, contractor acceptance, and the number of homes in which the product can realistically be installed.

R and Rc Terminals

The R circuit supplies control power from the HVAC transformer.

In many conventional residential systems, one transformer powers both heating and cooling. In this situation, the thermostat may use a single R connection, or R and Rc may be electrically bridged through a jumper or an internal thermostat connection.

However, some systems use separate transformers.

In those installations, R or Rh may supply the heating circuit while Rc supplies cooling power.

This distinction matters when designing a smart thermostat for broad North American compatibility.

Some thermostat platforms automatically manage the connection internally, whereas others use a physical jumper, switch, or configuration mechanism. Resideo's current T10 Pro documentation, for example, distinguishes between one-transformer and two-transformer installations and changes the R/Rc configuration accordingly.

An OEM thermostat should therefore clearly specify whether it supports:

single-transformer systems, separate heating and cooling transformers, R/Rc separation, and internal or external bridging.

Incorrect R/Rc architecture can eliminate compatibility with otherwise common HVAC installations.

Y and Y2 Cooling

The Y terminal normally represents the first-stage compressor call.

When the thermostat requests cooling, Y typically energizes the compressor contactor circuit. In a heat pump system, Y is also commonly involved in compressor operation during both heating and cooling.

Y2 is generally used for second-stage compressor operation.

Therefore:

A 1H/1C conventional system may only require Y, while a two-stage cooling system may require both Y and Y2.

This distinction becomes increasingly important in higher-end residential HVAC installations.

A thermostat advertised as “multi-stage compatible” should state exactly how many heating and cooling stages it supports instead of relying on the phrase alone.

For example, support for 2H/2C conventional equipment is different from support for a multi-stage heat pump with auxiliary heat.

W and W2 Heating

The W terminal typically controls the first stage of conventional heating.

In a gas furnace installation, for example, the thermostat closes the heating control circuit when indoor temperature falls below the heating setpoint.

W2 usually represents second-stage conventional heating where supported.

For buyers, the important distinction is between conventional heating and heat-pump auxiliary heat.

Depending on thermostat architecture, a physical terminal may be configurable as W2, AUX, or another heating function. Therefore, terminal labeling alone does not prove functional compatibility.

The firmware must also contain the correct equipment configuration and control sequence.

For OEM projects, buyers should request both the terminal diagram and the HVAC logic table.

G Fan Control

The G terminal commonly controls the indoor blower fan.

When G is energized, the furnace or air handler can activate the fan relay independently of a heating or cooling call, depending on system configuration.

This allows functions such as user-selected “Fan On” operation.

Although G appears simple, it becomes important when evaluating C-wire alternatives.

Some legacy installation methods repurpose an existing G conductor when no C-wire is available. However, doing so may remove independent fan control and is not appropriate for every HVAC configuration. Even established thermostat manufacturers place restrictions on this method.

For a commercial thermostat program, this should therefore be treated as an installation-specific workaround rather than universal C-wire compatibility.

O/B Reversing Valve

Heat pumps introduce another major compatibility requirement: the O/B reversing valve terminal.

The reversing valve changes refrigerant flow so the heat pump can switch between heating and cooling operation.

One complication is that HVAC manufacturers do not all use the same reversing-valve logic.

Some systems energize the valve in cooling mode, while others energize it in heating mode.

As a result, a North American smart thermostat intended for heat pumps should allow the installer to configure O or B changeover behavior.

A thermostat may physically include an O/B terminal and still fail in the field if its firmware does not support the correct reversing-valve logic.

This is exactly the type of problem that should be found during compatibility testing rather than after a product launch.

AUX and Emergency Heat

Heat pumps frequently include supplemental heating.

AUX, or auxiliary heat, is additional heat that the thermostat can activate when the heat pump alone cannot satisfy demand efficiently or quickly enough.

Depending on the system, auxiliary heat may come from electric resistance heating or another backup heat source.

Emergency Heat, often shown as E or EM Heat, is different.

Emergency Heat is normally an installer or user-selected operating mode that relies on backup heating rather than normal compressor-based heat-pump heating.

Although AUX and E may sometimes share thermostat hardware or terminal architecture, their control logic is not necessarily identical.

Therefore, heat-pump compatibility should not be summarized simply as “O/B + AUX supported.”

Buyers should verify how AUX staging works, whether Emergency Heat mode is available, and whether compressor operation is disabled or modified during emergency operation.

Single-Stage vs Multi-Stage HVAC

One of the easiest ways to misunderstand thermostat specifications is to look only at terminal quantity.

The more useful question is:

Which HVAC equipment configurations can the firmware actually control?

A basic thermostat might support a conventional:

1 heat / 1 cool system.

A more advanced model might support:

2 heat / 2 cool conventional equipment, or a heat pump with compressor stages plus auxiliary heating.

These are not interchangeable definitions.

Multi-stage systems require control algorithms that determine when the next stage should activate based on temperature difference, runtime, recovery logic, equipment configuration, or other control parameters.

For distributors, this matters because a thermostat that works well in a basic furnace-and-AC installation may not be suitable for premium variable or multi-stage HVAC applications.

C-Wire Requirements

For Wi-Fi thermostats, requiring a C-wire is technically straightforward and can provide stable continuous power.

However, it can reduce retrofit compatibility.

Many older homes have thermostat cable with only the conductors required by the original thermostat. The HVAC control board may provide a C terminal even though no C conductor was pulled to the wall thermostat.

This creates an important distinction:

“The HVAC equipment has 24VAC common” does not necessarily mean “a C-wire is available at the thermostat.”

North American installation instructions commonly tell users to inspect the actual terminal labels rather than relying on wire colors because color conventions are not guaranteed.

For an OEM smart thermostat, packaging and installation instructions should clearly state the power requirement before the installer removes the old thermostat.

What Happens When There Is No C-Wire?

A missing C-wire does not always make smart thermostat installation impossible.

Depending on the thermostat design and HVAC system, several approaches may be available.

An unused conductor may already exist inside the thermostat cable and can sometimes be connected to C at both ends. A compatible C-wire adapter or power connector may also be installed at the furnace or air handler. Some thermostat architectures use power-sharing techniques, while other installations may require new thermostat cable.

Major North American thermostat manufacturers offer C-wire adapter solutions specifically because this retrofit situation is common.

However, OEM buyers should be cautious about “no C-wire required” marketing claims.

The more important questions are whether the thermostat remains stable across different furnace control boards, zone panels, heat pumps, and relay systems, and whether Wi-Fi, display brightness, and relay operation remain reliable under all conditions.

A product that works on one laboratory transformer is not automatically proven for the installed HVAC market.

24V vs Line-Voltage Thermostats

A 24V smart thermostat should not be confused with a line-voltage thermostat.

Low-voltage thermostats commonly control central furnaces, air conditioners, air handlers, and heat pumps.

Line-voltage thermostats are used in applications such as some electric baseboard and resistance heating systems and may switch approximately 120V or 240V directly.

These product categories require fundamentally different electrical designs.

Connecting a 24VAC thermostat directly to line voltage can damage the thermostat and create a serious electrical hazard.

For this reason, product listings should clearly identify the supported electrical architecture instead of simply using terms such as “electric heating compatible.”

Google explicitly lists high-voltage electric baseboard systems as incompatible with its standard 24V Nest thermostat platform, while Resideo likewise distinguishes its 24VAC smart thermostat products from 120–240V baseboard applications.

For distributors, this distinction should be visible on the product page, carton, manual, and specification sheet.

Compatibility Testing Before Ordering Samples

Before approving a North American thermostat sample, buyers should create a representative HVAC simulation matrix.

Do not test only whether the thermostat powers on.

The test should verify actual control behavior across relevant equipment configurations.

For example, a supplier may claim support for R, C, Y, W, G, O/B, AUX, Y2, and W2, but buyers should still confirm that the product correctly interprets equipment type, stage quantity, reversing-valve logic, auxiliary heating, compressor protection delays, fan behavior, and thermostat power conditions.

The manufacturer should also disclose the rated 24VAC operating range and the electrical characteristics of each output.

For a private-label project, this stage is particularly important because compatibility problems often become the distributor's responsibility once the product enters the market.

The safest procurement process is therefore:

HVAC configuration → wiring matrix → firmware configuration → bench simulation → sample installation → pilot field test → mass production.

North American Buyer Checklist

Before purchasing or private-labeling a 24V smart thermostat for the US or Canadian market, confirm:

• Nominal 24VAC input and acceptable voltage range

• Whether a C-wire is mandatory

• Supported solution when no C-wire is present

• R, Rc, and separate-transformer compatibility

• Y and Y2 compressor stages

• W and W2 conventional heating stages

• G independent fan control

• Configurable O/B reversing-valve logic

• AUX heating support

• Emergency Heat mode

• Supported conventional HVAC configurations

• Supported heat-pump configurations

• Maximum relay/output electrical ratings

• Compressor protection and anti-short-cycle logic

• Gas, electric, oil, and heat-pump configuration options

• Clear North American terminal labeling

• Installation instructions based on terminal labels rather than wire color

• Bench testing with representative HVAC control boards

• C-wire adapter availability where required

• Certification and compliance documentation for the target market

• Firmware, app, and OTA support for the expected product lifecycle

Final Thoughts

For North American HVAC buyers, choosing a 24V smart thermostat is ultimately a compatibility-engineering decision rather than a screen, app, or industrial-design decision.

A reliable thermostat must correctly manage the 24VAC power architecture while supporting the terminal combinations found in real furnaces, air conditioners, air handlers, and heat pumps.

C-wire requirements deserve particular attention because they directly influence retrofit installation rates. At the same time, support for R/Rc, Y/Y2, W/W2, G, O/B, AUX, and Emergency Heat determines how broad the thermostat's actual HVAC application range will be.

For distributors and private-label brands, the safest approach is to ask the thermostat manufacturer for a detailed wiring matrix and supported HVAC configuration table before ordering production samples.

A supplier that can demonstrate the thermostat across realistic North American HVAC simulations provides much stronger evidence of compatibility than one that simply prints “24V HVAC compatible” on a specification sheet.
